China Factory Good Price RO Water Treatment Plant Automatic Valve FRP Tank
China Factory Good Price RO Water Treatment Plant Automatic Valve FRP Tank
Why choose RO Treatment Plant
Reverse Osmosis System If you're searching for a water filtration system ,CHUNKE will give you outstanding pure Drinking / Drinkable water RO/ ReverseOsmosis treatment equipment / plant / machine / system / line.Here are a few reasons to consider Reverse Osmosis.
1. Improves Taste
RO filtration improves taste, odor and appearance of water by removing contaminants that cause taste and odor problems.
2. simple maintance
Reverse Osmosis water filtration system and very few moving or replaceable parts make Reverse Osmosis system easy to clean and service.
3. Saves Money
With an RO system, you can cancel your water delivery service and stop purchasing cases of bottled warer.Reverse Osmosis system provides good quality water for just pennies per gallon.
4. Removes Impurities
Reverse Osmosis system remove pollutants from water including niteates, pesiticides, sulfates,and much more. An Reverse
Osmosis carbon filter also remove chlorine and chloramines.
Technological process flow of water treatment appliances
1.First stage pretreatment.(Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material,mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
2.Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
3.Third stage pretreatment (Sodium ion exchanger)
Soldium ion exchanger uesd for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil,
4.Fourth stage pretreatment (Precision filter)
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
5.RO system
The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level.
Customized Capacity
| Model |
Productivity (T/H) |
Motor power (KW) |
Recovery rate (%) |
Outlet water conductivity (μS/CM) |
Raw water conductivity (μS/CM) |
| CK-RO-500L | 0.5 | 1.5 | 50 | ≤10 | ≤300 |
| CK-RO-1000L | 1 | 2.2 | 50 | ≤10 | ≤300 |
| CK-RO-2000L | 2 | 3 | 50-60 | ≤10 | ≤300 |
| CK-RO-3000L | 3 | 4.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-4000L | 4 | 6.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-5000L | 5 | 8 | 60-70 | ≤10 | ≤300 |
| CK-RO-10000L | 10 | 15 | 60-70 | ≤10 | ≤300 |
| CK-RO-20000L | 20 | 22 | 65-75 | ≤10 | ≤300 |
| CK-RO-30000L | 30 | 26 | 70-75 | ≤10 | ≤300 |
| CK-RO-50000L | 50 | 55 | 70-75 | ≤10 | ≤300 |
RO System Picture

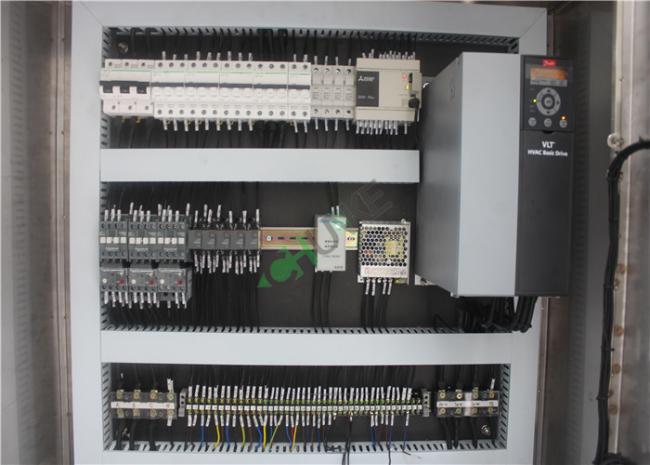

Electric control system
SUS304 Tank
