Large Capacity SUS Or FRP RO System Reverse Osmosis Plant Water Treatment Equipment
Large capacity SUS or FRP RO system Reverse osmosis plant Water treatment Equipment
Detail of Reverse osmosis plant
Water treatment equipment is for producing drinking water, foods factory, beverage factory, fruit&vegetable factory etc. The machine is integrated into a group, the assembly and transportation are rather convenient.
It's simply operation and has long lifespan.
Main complonents: RO membrane
high pressure pump(South.China)
Electricity conduction meter
Over high or over low pressure protection failities
304 316 Stainless steel
The standard of supplied water
Electricity conduction rate: Nor more than 10us/cm
The system uses high-quality water treatment accessories to form a complete set of high-quality equipment, with complete after-sales service manifestation, each device has a good label instructions, and with installation instructions, allowing users to get equipment After the assembly is completed easily. Each set of equipment completed the test before leaving the factory, packaging equipment is complete and able to operate normally.
Reverse osmosis system is raw water through precision filter, granular activated carbon filters, activated carbon filters, compression, and then through the pump pressure, the use of reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant.
The spiral membrane is constructed of one or more membrane envelopes wound around a perforated central tube. The permeate passes through the membrane into the envelope and spirals inward to the central tube for collection.
Raw water pump→ mechanical filter→ activated carbon filter→ sodium-ion exchanger→ precision filter→
high pressure pump →Reverse osmosis→ Ozone sterilizer (UV).
Customized size of the system
| Model | Productivity (T/H) |
Motor power (KW) |
Recovery rate (%) |
Outlet water conductivity (μS/CM) |
Raw water conductivity (μS/CM) |
| CK-RO-500L | 0.5 | 1.5 | 50 | ≤10 | ≤300 |
| CK-RO-1000L | 1 | 2.2 | 50 | ≤10 | ≤300 |
| CK-RO-2000L | 2 | 3 | 50-60 | ≤10 | ≤300 |
| CK-RO-3000L | 3 | 4.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-4000L | 4 | 6.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-5000L | 5 | 8 | 60-70 | ≤10 | ≤300 |
| CK-RO-10000L | 10 | 15 | 60-70 | ≤10 | ≤300 |
| CK-RO-20000L | 20 | 22 | 65-75 | ≤10 | ≤300 |
| CK-RO-30000L | 30 | 26 | 70-75 | ≤10 | ≤300 |
| CK-RO-50000L | 50 | 55 | 70-75 | ≤10 | ≤300 |
Pictures of the Reverse osmosis plant

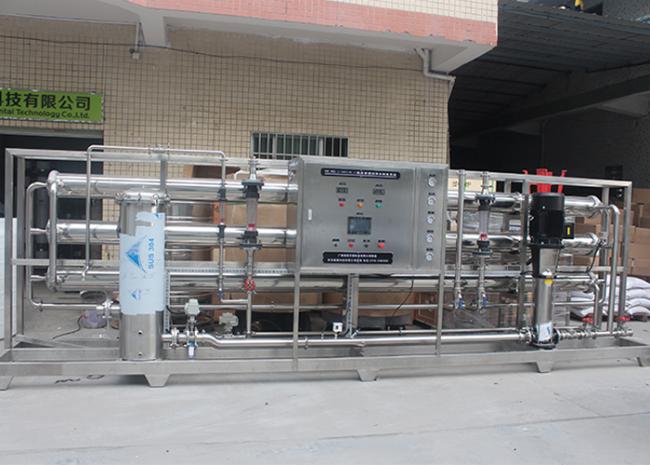

Stainless steel membrane housing

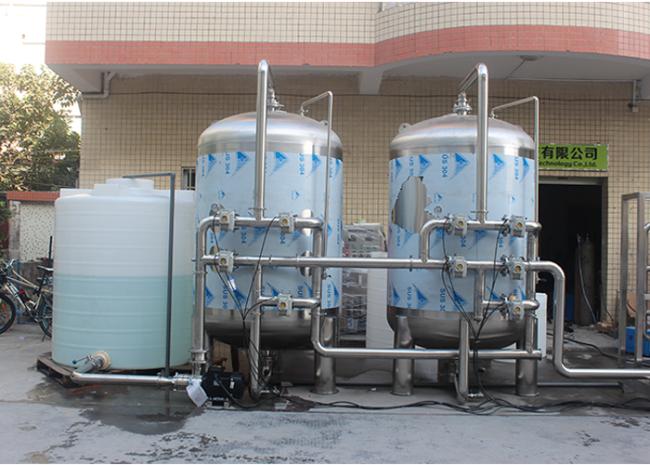

Stainless steel filter tank and connecting pipes

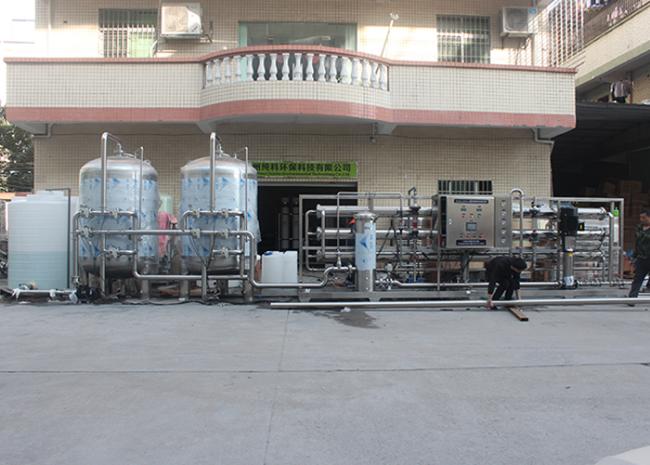

Complete set of equipment

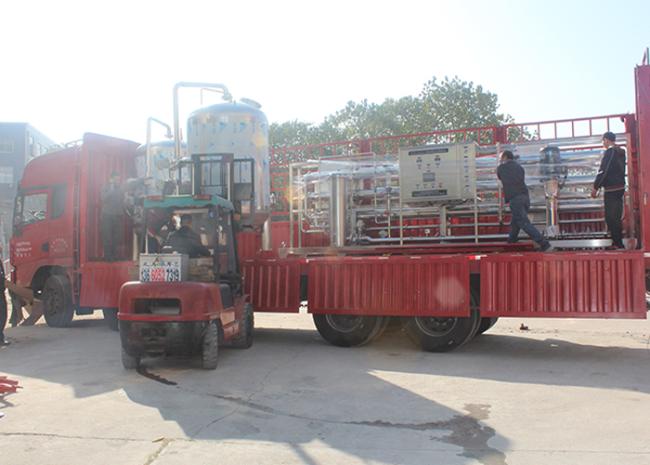

Packing and Shipping
We provide various types technical support by providing e-mails, whatsapp, wechat, teamviewer etc. online communication
tools.
