Ultra Filtration (UF) Mineral Water Treatment Plant / Ultrafiltration Membrane System

Mineral Water Treatment System / Ultrafiltration Water Treatment Equipment

I. Ultrafiltration System

Ultrafiltration (UF) is a variety of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable membrane.

II.UF machine Function

Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1, 500-100, 000 Dalton, and can effectively remove organic, bacterium, virus, colloid and non-ion suspended solid.

III. UF machine System flow:

Raw water→Raw water pump→Multi-medium filter→Activated carbon filter→Security filter→UF device→ Water point

IV. Details Configuration for 10000L/H Mineral water treatment:
Model: UF-1000I(10000L/H)
Capacity: 10000L/H at 25Deg C
General Power: 1.1kw 380V 50Hz
Ultrafiltration Membrane: 8040 5PCS
Pretreatment Part: Dia750*1500 2set with sand filter 800kg and GAC filter 300kg
Feed pump: China Top CNP CHL8-30
PP sendiment Filter: 5u *500mm 8PCS
Post UV sterilizer: UV-160W

V. UF machine Application:

1)Drinking water
2)Clarifying and eliminating bacterial for mineral water
3)Water treatment for medicine
4)Separation and refinement of enzyme
5)Concentration and refinement of biologic products
6)Concentration and separation of fruit juice
7)Concentration and refinement of milking
8)Pre-treatment of large water treatment equipment
9)Terminal treatment of ultra-pure water for electronic industry
10)Pouring in water treatment for extremely low permeable wells in oil field
11)Treatment of industrial waste water and reclamation of usable water.

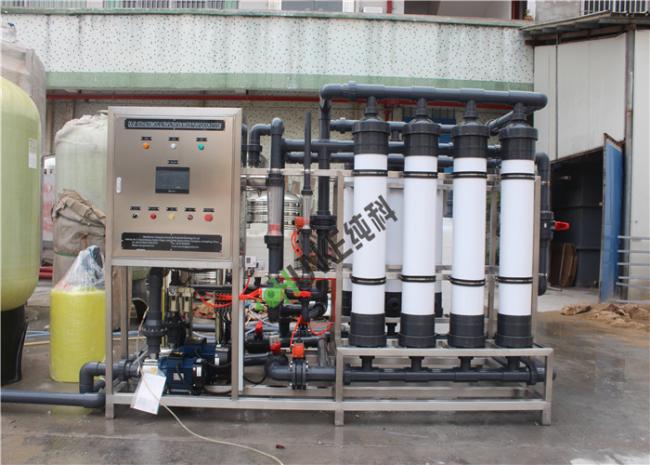

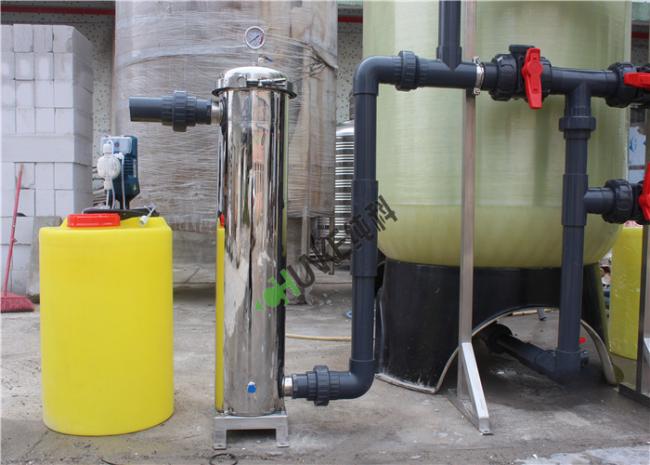

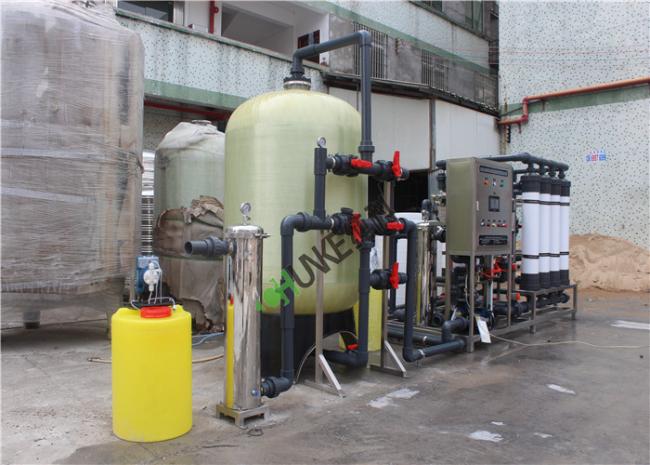

More Pictures :
