10T/H Reverse Osmosis Purified Water System For Pharmaceutical Injection
10T/H Reverse Osmosis Purified Water System For Pharmaceutical Injection
A. Product Description
Reverse Osmosis(RO) use enough pressure to separate solvent (usually it is water) of liquor through film of RO membrance, so it is called to reverse osmosis, RO as high efficient technology of desalting which can remove impurity such as inorganic ion, bacteria, virus, organic substance and colloid so that high quality pure water could be obtained. The system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².
B. Main Flow Chat
(Pure water tank)--->raw water pump--->quartz sand filter--->active carbon filter---> Scale inhibitor
/water softener--->Ultrafilter--->high pressure pump--->reverse osmosis system---> (pure water tank)
C. Parameters
| 1 | Capacity: customized |
| 2 | Rated power: check with the configuration list |
| 3 | Voltage: 220V/3phase/50Hz, 380V3phase/50Hz,or customized at different country |
| 4 | Desalting rate:97-98% |
| 5 | Water recovery rate: 50-70% |
| 6 | Conductivity of raw water: ≤400μs or custom designed |
| 7 | Conductivity of pure water: ≤10μs or custom designed |
D. Application Field
1.Electronics Industry: Silicon,micro-electronics products with high water. Semiconductors,tubes and other manufacturing industries with high water. The using of production water batteries in lithium batteries, solar power batteries, dry cell batteries.
2.Food and Beverage field: Pure water, distilled water, mineralized water, natural water,mineral water. The using of production water in liquor blending and beer production. The using of pure water in food and beverage production. The supply of drinking water for hotels, building and uptown.
3.Phamaceutical industry:Pharmaceutical, injection with pure water, high pure water and sterile water,etc. Purification and separation of drug raw materials. Medical hemodialysis, biochemical analysis and water for injection.
4.Cosmetics :The using of pure water in the production of skincare, shampoo,toothpaste and other cleaning fluid.
5.Chemistry and Chemical Engineering:The using of pure water in the production of chemical reagent, chemical fertilizers and paper making.
6.Surface Treatment: The using of highly pure water in electroplating and glass coated. Ultrasonic cleaning with pure water. The surface coating and cleaning automotive,appliance, building material products with pure water.
RO System detail picture

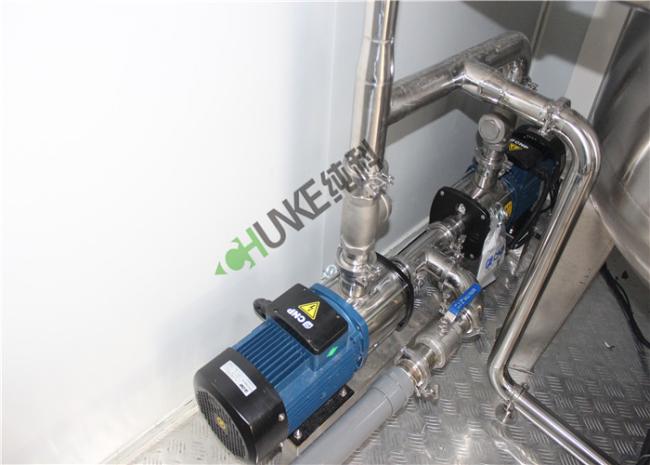

RO System Raw Water Pump
RO System High Pump
