Stainless Steel 304 316 Water Filter Housing For Chemical Medicine Filtration
Stainless Steel 304 316 Water Filter Housing For Chemical Medicine Filtration
Product Application
Stainless Steel Cartridge filter housing also called precision filter.The barrel shell is generally made of stainless steel, and the inner part is made of PP Melt Spinning Cartridge, wire winding, folding, titanium filter element, activated carbon filter element and other tubular filter elements are adopted as filter elements; Different filter elements are selected according to different filter media and design process to meet the requirement of effluent water quality.
Widely used in liquid purification of water, oil, paint, and solid-liquid separation in machinery, metallurgy, chemical industry, textile, printing and dyeing, electroplating, medicine, food and other industries.
Main Features
| 1 | High filtration accuracy, filter element aperture is uniform; |
| 2 | Low filtration resistance, big flux, Strong decontamination capability,Long service life; |
| 3 | Filter is clean and no second pollution to the filter media; |
| 4 | It also can filter acid, alkali and other chemical agents; |
| 5 | High-intensity,heat-resistant,deformation resistance; |
| 6 | Low price, low running costs, easy to clean, filter element can be replaced; |

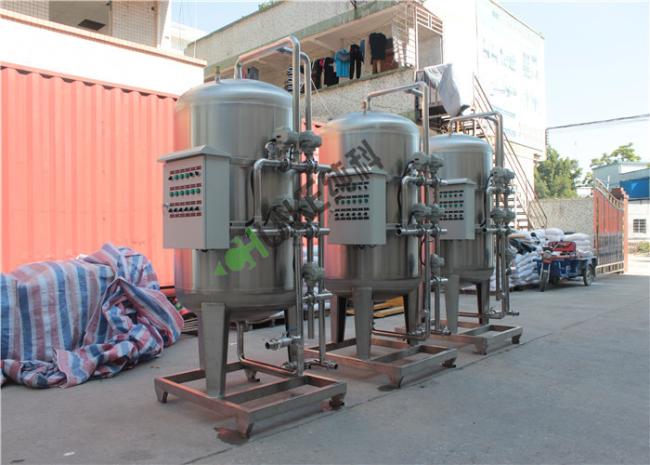

Stainless Steel Sand Filter/Activated Carbon Media Filter Tanks For Water Treatment
Used for quartz sand filters, activated carbon filters, softening filters, manganese sand filters, fluoride removal filter.
Features of the water filter
Simple sand filter device structure, operation, backwash more convenient, its operations mainly through regulating four valves, change the water direction changes.
Quartz sand filling should be noted: quartz sand interception layer specification 0.5-1.0mm, a height of 700mm or more, the support layerhas two layers, namely, 1-2mm in height packed 150-200mm ,2-3mm in height packed 150 -200mm. Untreated water, its interceptioncapabilities 0.5-1.0Kg/m3, after water lime treatment, the interception capacity of 1.5-2.0 Kg/m3, coagulation treatment for the treated water, the interception capacity of 2.5-3.0 Kg/m3.
Filter technology parameters
| Filter filtration rate | 8 ~ 300m3 / h |
| Backwash time | 8 to 10 |
| Working pressure | ≤ 0.6Mpa |
| Flushing filter head loss | 0.8 |
| Water outlet | 2-5mg/L |
| Water inlet | <10mg/L |
| Water outlet | <2mg/L |
| Design temperature | 5 ~ 4000C |
| Single sand filter Height | 700mm (height for circulating water sand filter 500mm) |
Stainless Steel Detail Picture
