High Efficiency 250L RO Water Treatment Plant Commercial / Industrial / Mineral
High Efficiency 250L Commercial / Industrial /Mineral RO Water System
What is Reverse Osmosis( RO)
Reverse osmosis (RO) is a water purification process in which water is forced through a semi-permeable membrane that removes 90-99% of tap water impurities. The result is water that is free of minerals and other contaminants. Membrane type determines the amount of dissolved solids a unit is capable of removing.
Flow chat
raw water→ 1 booster pump→ 2 sand(multi-medium) filter→3 active carbon filter→4 softener (optional)→ 5 security(micron) filter→6 high pressure pump→7 reverse osmosis system→ 8 UV sterilizer (ozone generator) →pure water storage tank
Function of each part of water treatment plant
| 1 | booster pump-- provide the pressure to quartz sand filter/active carbon filter |
| 2 | Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect. |
| 3 | Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect. |
| 4 | Softener--exchange "ions" of calcium and magnesium with the most common and easiest method. |
| 5 | Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um |
| 6 | High pressure pump-- Provide the high pressure to RO membrane |
| 7 | RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions |
| 8 | UV sterilizer or ozone generator--- kill bacteria |

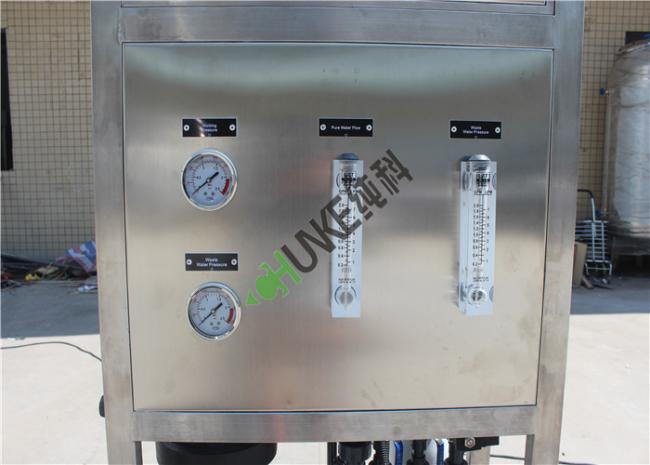

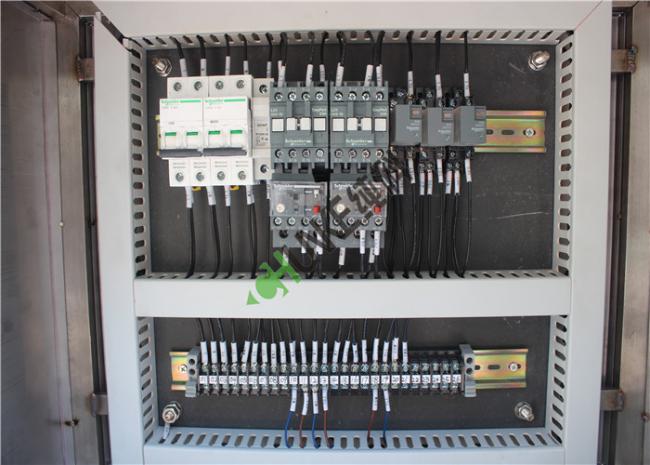

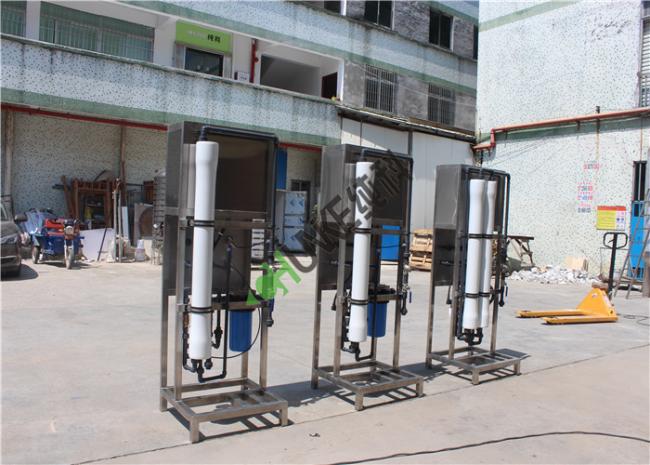

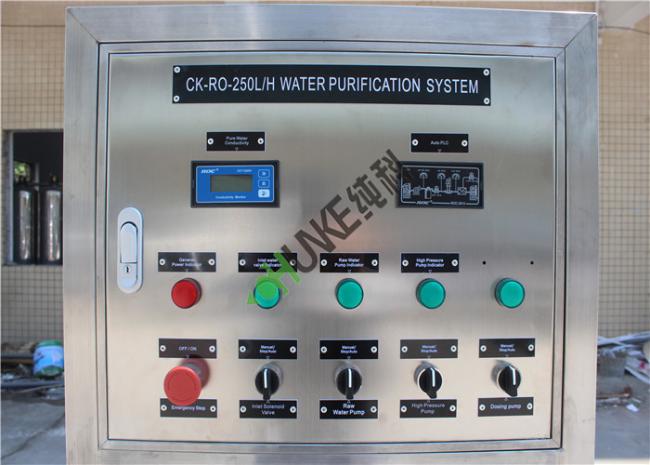

RO System Detail Picture
