6m³ FRP RO Water Treatment Plant Reverse Osmosis System Desalination Equipment
6m³ FRP RO Water Treatment Plant Reverse Osmosis System Desalination Equipment
What's the working principle of the RO membrane for the reverse osmosis system?
The spiral membrane is constructed of one or more membrane envelopes wound around a perforated central tube. The permeate passes through the membrane into the envelope and spirals inward to the central tube for collection.

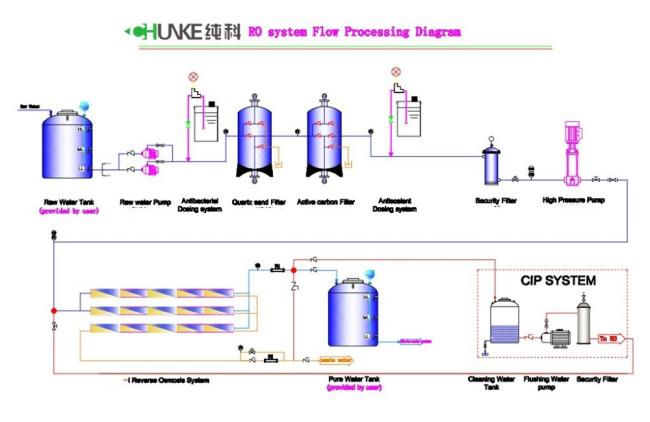

Working Process
(raw water+ raw water tank)+ raw water pump+ sand filter+ carbon filter+softener + security filter+ high pressure pump+ reverse osmosis system+ (pure water tank + water supply points)
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/softener.
2. Multi-medium filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, smell, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
Advantages
1.Factory direct sale
2.Strict quality control
3.We are supplier of some large supermarkets and famous brands
4.Professional service
5.No matter the quality or price,we can either give you the best
6.OEM available
7.We have 1~2 QC for each step
8.More than 10 lines for production to make sure the prompt lead time.
9.We have our own raw material factory,carton factory,packing material factory to control every link,and save you the cost from every link
Detail images
| Model |
Productivity (T/H) |
Motor power (KW) |
Recovery rate (%) |
Outlet water conductivity (μS/CM) |
Raw water conductivity (μS/CM) |
| CK-RO-500L | 0.5 | 1.5 | 50 | ≤10 | ≤300 |
| CK-RO-1000L | 1 | 2.2 | 50 | ≤10 | ≤300 |
| CK-RO-2000L | 2 | 3 | 50-60 | ≤10 | ≤300 |
| CK-RO-3000L | 3 | 4.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-4000L | 4 | 6.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-5000L | 5 | 8 | 60-70 | ≤10 | ≤300 |
| CK-RO-10000L | 10 | 15 | 60-70 | ≤10 | ≤300 |
| CK-RO-20000L | 20 | 22 | 65-75 | ≤10 | ≤300 |
| CK-RO-30000L | 30 | 26 | 70-75 | ≤10 | ≤300 |
| CK-RO-50000L | 50 | 55 | 70-75 | ≤10 | ≤300 |
Our Service
1.Find our products through websit .
2.One year warranty for the whole system.
3.Free equipment installation and debugging.
4.After one Year,we can help you to maintain the machine and the accessories are provided olny one the cost price.
5.Every 3 years,we can help to overhaul the machine freely(Labor).
6.We can provide internship servise and help you train the operator and mechanic.
7.Free production technology and process configuration.
8.We can help you to design the production line,workshop and provide turn-key project.
