Raw water-- Raw water tank --Raw water pump --Quartz sand filter-- Active carbon filter-- Security filter-- high pressure pump-- RO

systemPure water tank-- UV/Ozone --Pure Wate

1). Raw water pump-- provide the pressure to quartz sand filter/active carbon filter

2). Quartz filter-- get rid of turbidity, suspended matter, organic matter, colloid, etc.

3). Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.

4). Water Softener--using ion exchange resin to exchange "ions" of calcium and magnesium is the most common and the easiest method of

removing hardness of water and render the water suitable for utility purpose

5). Security filter--It is also called cartridge Filter, prevent any deposition of large Particles, most of the bacteria, and viruses into the UF

membrane and RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter,

impurity.

6). High pressure pump-- The high pressure pump is used for make sure there are enough water for satisfying designed production capacity.

7). RO (reverse osmosis) system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic



The detailed information of Water Purifier

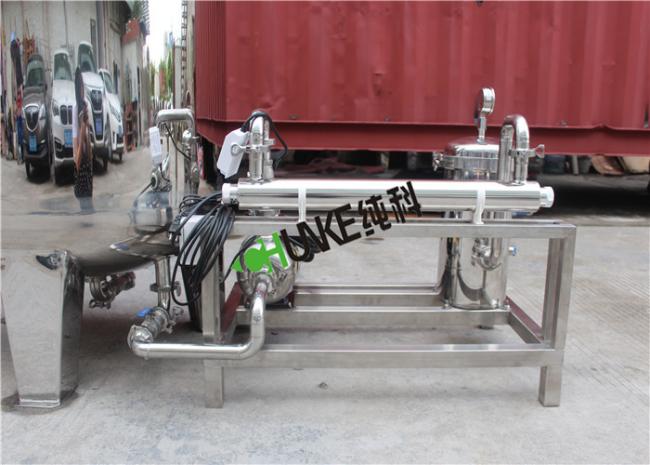

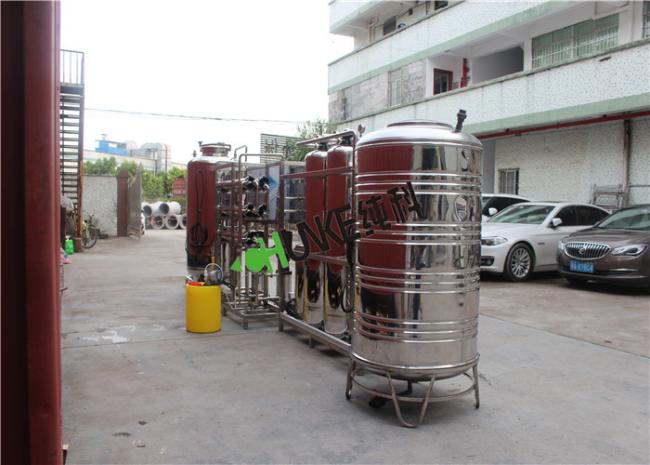

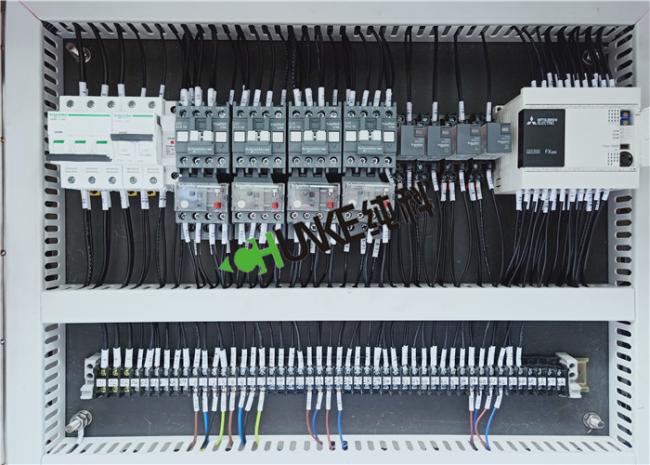

RO water treatment Plant detail picture:
