Environmental Protection Equipment RO Industrial Water Treatment Plant
Environmental Protection Equipment RO Industrial Water Treatment Plant
Main process
| Quartz sand filter | It is used to remove suspended solids, colloids, silt, clay, humus, particles and other impurities; to reduce water turbidity and to make water clean. Treated water SDI is ≤4. |
| Active Charcoal Filter | Active charcoal( Active carbon) filter uses activated carbon on which surface has a lot of hydroxyl and carboxyl functional groups can be of various substances in the nature of chemical adsorption removal of odors, organics, colloids, iron and chlorine, while reducing water color, turbidity, reduced pollution of the membrane, treated water chlorine residual 0.1ppm |
| Water softener | Filled with resin to exchange ions, reduce the hardness of water and it can be regenerated with brine. |
| Polishing filter | There's polypropylene material filled to filtrate particles more than 5 Micron. It can stop the particles coming from the pretreatment process and lower the chance of pollution to the membrane. |
| RO system | Reverse osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions, molecules, and larger particles from drinking water. In reverse osmosis, an applied pressure is used to overcome osmotic pressure, a colligative property, that is driven by chemical potential differences of the solvent, a thermodynamic parameter. Reverse osmosis can remove many types of dissolved and suspended species from water, including bacteria, and is used in both industrial processes and the production of potable water. The result is that the solute is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side. To be "selective", this membrane should not allow large molecules or ions through the pores (holes), but should allow smaller components of the solution (such as solvent molecules) to pass freely. |
| UV filters | UV filters are individual compounds or mixtures to prevent ultraviolet (UV) light from getting through. UV filters are used in sunscreens to protect skin or in photography to reduce the level of ultraviolet light that strikes the recording medium. |
water purifier machine purification system
1. Final water: Mineral water, pure water, water for food & beverage, medicine using water
2. Material : Stainless steel SUS304 or SUS316
3. Raw water: water from lake, spring, tap, etc.
4. The main machine include raw water tank, active carbon filter, quartz sand filter, precise filter, reverse osmosis, ultra-filter, UV sterilizer, ozone sterilizer, pure water tank.
5. high automatically, PLC controlled, regular backwashing reverse osmosis membrane.
6. Imported of high-pressure membrane which come from USA. The rate of desalination is reach 97%-98%.
7. Remove osmosis desalination rate ≥99%, system desalination rate≥98%.
8.Under the control of electrical conductivity, to ensure good water quality.

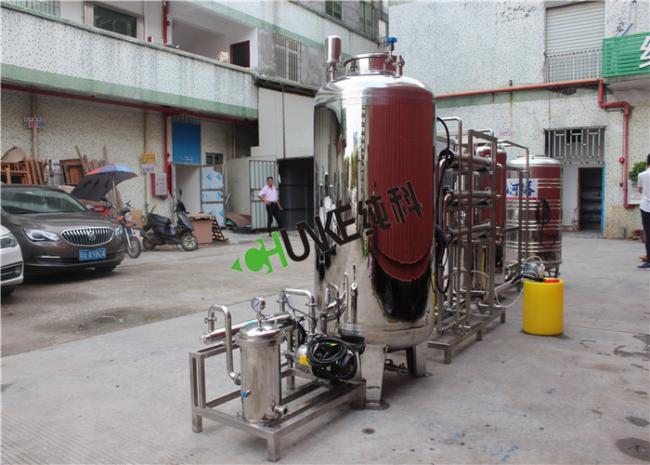

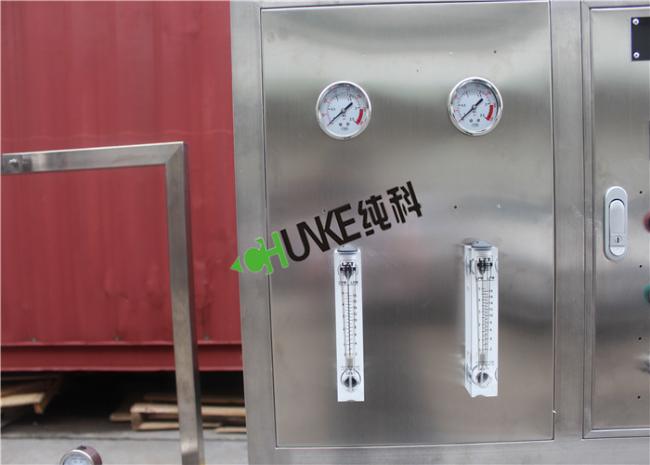

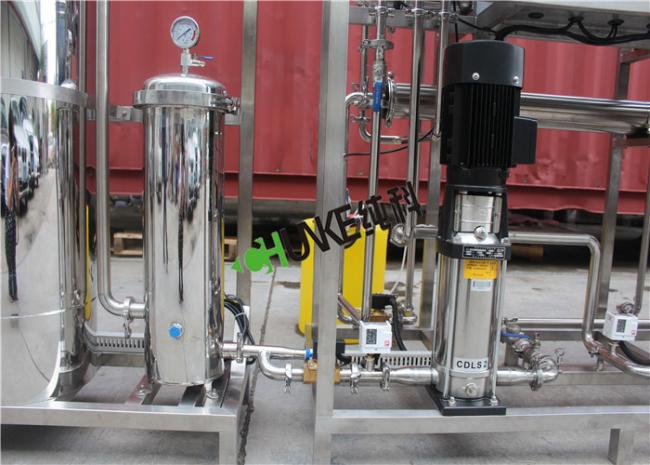

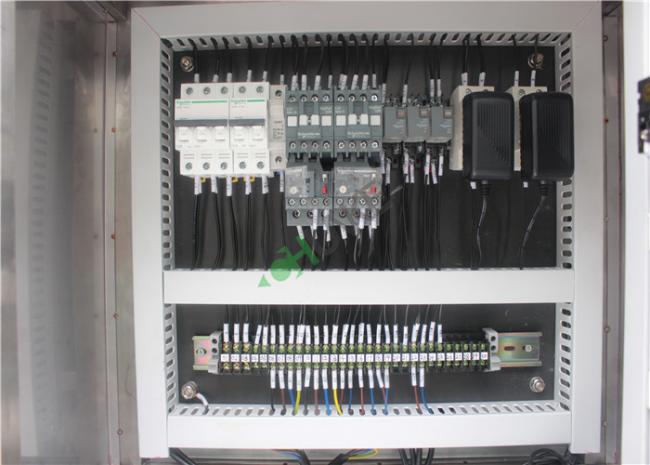

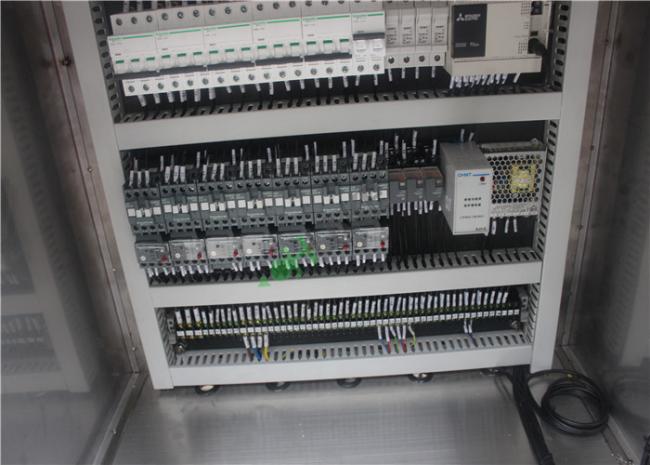

RO Water Treatment Plant Detail Photo
