8000lph Food Grade RO Water Treatment Plant Underground Water Desalination Equipment
8000lph Food Grade Stainless Steel Underground Water Desalination Equipment RO Water Treatment Plant
Reverse Osmosis system brief introduction
RO performs a separation without a phase change. Thus, the energy requirements are low.RO systems are compact, and space requirements are less than with other desalting systems, e.g. distillation.
Reverse Osmosis System Working Principle
Reverse Osmosis works by using a high pressure pump to increase the pressure on the salt side of the RO and force the water across the semi-permeable RO membrane, leaving almost all (around 95% to 99%) of dissolved salts behind in the reject stream.
Reverse Osmosis System Flow Chart
Raw water pump→ mechanical filter→ activated carbon filter→ sodium-ion exchanger→ precision filter→
high pressure pump →Reverse osmosis→ Ozone sterilizer (UV).
Customized size of the system
| Model | Productivity (T/H) |
Motor power (KW) |
Recovery rate (%) |
Outlet water conductivity (μS/CM) |
Raw water conductivity (μS/CM) |
| CK-RO-500L | 0.5 | 1.5 | 50 | ≤10 | ≤300 |
| CK-RO-1000L | 1 | 2.2 | 50 | ≤10 | ≤300 |
| CK-RO-2000L | 2 | 3 | 50-60 | ≤10 | ≤300 |
| CK-RO-3000L | 3 | 4.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-4000L | 4 | 6.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-5000L | 5 | 8 | 60-70 | ≤10 | ≤300 |
| CK-RO-10000L | 10 | 15 | 60-70 | ≤10 | ≤300 |
| CK-RO-20000L | 20 | 22 | 65-75 | ≤10 | ≤300 |
| CK-RO-30000L | 30 | 26 | 70-75 | ≤10 | ≤300 |
| CK-RO-50000L | 50 | 55 | 70-75 | ≤10 | ≤300 |
Details of the water purification equipment

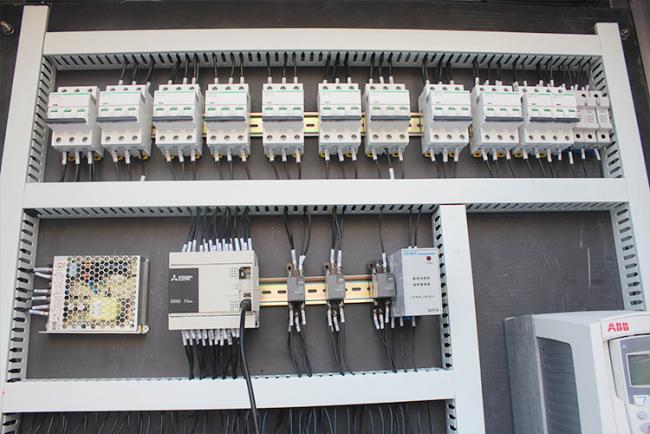

Electric Control System
The total control cabinet: Japan Mitsubishi PLC programmable controller automatic control, Taiwan Wei Lun 10.2-inch large screen true color man-machine interface touch screen, France Schneider Electric components, RO membrane automatic washing, the original water tank and pure water tank water level control automatically stop , Low voltage, high voltage, overheating, overcurrent, phase protection and alarm function, pre-installed remote monitoring interface.
We provide various types technical support by providing e-mails, whatsapp, wechat, teamviewer etc. online communication
tools.
What are the RO water plant parameter?
Capacity of pure water: 250-100 000 LPH
Electrical power: AC 220V 18A/ 380V 9A 50Hz
High Pressure pump: CDL2S-11/2.2 KW for 500lph (1 item)
Rated power: 14Kw/H
Desalting rate:95-99%
Water recovery rate: 60-75%
Conductivity of raw water: ≤400μs
Conductivity of pure water: ≤10μ
Feature and advantages:
1. System can produce water continuously and high degree automation.
2. No need chemical to regenerate, easy operation and maintenance.
3. Core components of ro system are imported USA DOW membranes.
4. Automatic switch on when low water level, and switch off when high water level
5. System flushes RO membranes automatically, reducing membranes polluted speed.
6. Water shortage protection for multi-stage pump
7. Product water conductivity meter can monitor water quality online continuously.
8. Low operation cost and long life span
