Industrial RO Water Treatment Plant 6000lph SUS304 Drinking Water Filtration System
Industrial 6000lph SUS304 Drinking Water Filtration System RO Water Treatment Plant

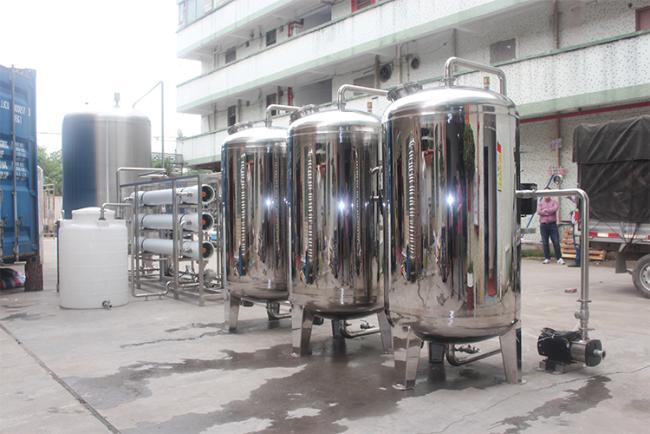

RO system is raw water through precision filter, granular activated carbon filters, activated carbon
filters, compression, and then through the pump pressure, the use of reverse osmosis membrane
pore size 1/10000μm make a higher concentration of water into low concentration of water, while
the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed
with a large number of full isolation, to achieve the required physical and chemical indicators for
drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish
water quality. It is key equipment of pure water plant.
| Model | Productivity (T/H) |
Motor power (KW) |
Recovery rate (%) |
Outlet water conductivity (μS/CM) |
Raw water conductivity (μS/CM) |
| CK-RO-500L | 0.5 | 1.5 | 50 | ≤10 | ≤300 |
| CK-RO-1000L | 1 | 2.2 | 50 | ≤10 | ≤300 |
| CK-RO-2000L | 2 | 3 | 50-60 | ≤10 | ≤300 |
| CK-RO-3000L | 3 | 4.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-4000L | 4 | 6.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-5000L | 5 | 8 | 60-70 | ≤10 | ≤300 |
| CK-RO-10000L | 10 | 15 | 60-70 | ≤10 | ≤300 |
| CK-RO-20000L | 20 | 22 | 65-75 | ≤10 | ≤300 |
| CK-RO-30000L | 30 | 26 | 70-75 | ≤10 | ≤300 |
| CK-RO-50000L | 50 | 55 | 70-75 | ≤10 |
≤300 |

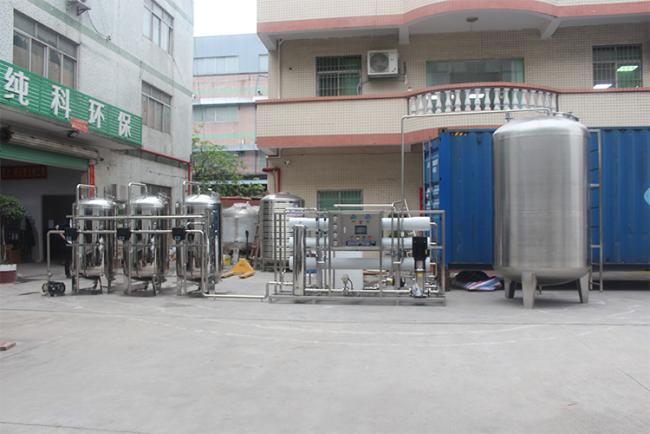

Details of the RO Water Treatment Plant

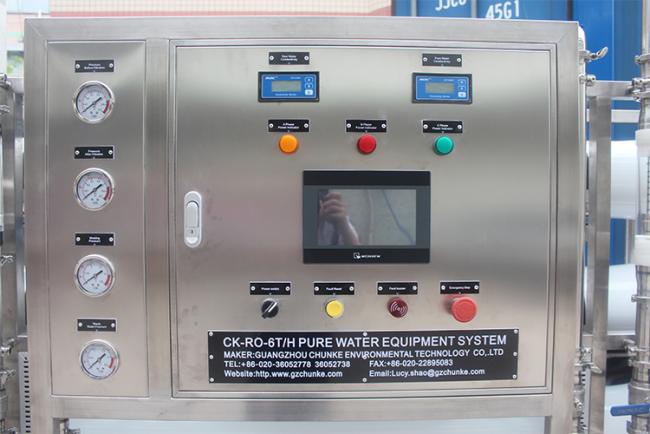

Electric Control System
The total control cabinet: Japan Mitsubishi PLC programmable controller automatic control, Taiwan Wei Lun 10.2-inch large screen true color man-machine interface touch screen, France Schneider Electric components, RO membrane automatic washing, the original water tank and pure water tank water level control automatically stop , Low voltage, high voltage, overheating, overcurrent, phase protection and alarm function, pre-installed remote monitoring interface.
We provide various types technical support by providing e-mails, whatsapp, wechat, teamviewer etc. online communication
tools.
What are the RO water plant parameter?
Capacity of pure water: 250-100 000 LPH
Electrical power: AC 220V 18A/ 380V 9A 50Hz

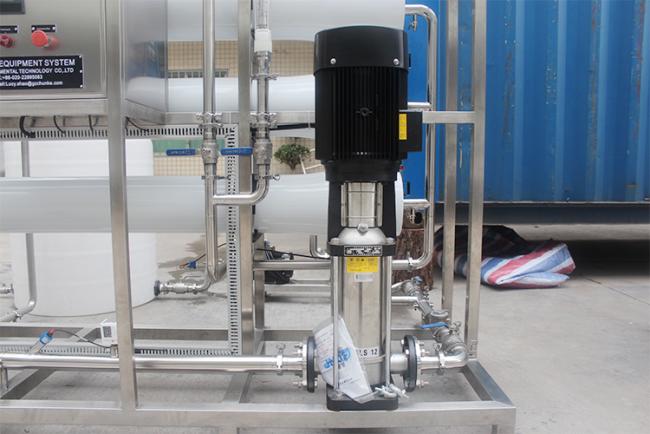

High Pressure pump: CDL2S-11/2.2 KW for 500lph (1 item)
Rated power: 14Kw/H
Desalting rate:95-99%
Water recovery rate: 60-75%
Conductivity of raw water: ≤400μs
Conductivity of pure water: ≤10μ
Feature and advantages:
1. System can produce water continuously and high degree automation.
2. No need chemical to regenerate, easy operation and maintenance.
3. Core components of ro system are imported USA DOW membranes.
4. Automatic switch on when low water level, and switch off when high water level
5. System flushes RO membranes automatically, reducing membranes polluted speed.
6. Water shortage protection for multi-stage pump
7. Product water conductivity meter can monitor water quality online continuously.
8. Low operation cost and long life span
