3T Two Stage RO Water Treatment Plant With SS304 For Medical Treatment
3T Two Stage RO Water Treatment Plant With SS304 For Medical Treatment
Reverse Osmosis System use for Seawater Desalination
The main applications of reverse osmosis equipment in the pharmaceutical industry are:
1. Water for pharmaceutical industry: pharmaceutical, preparation process water, medical hemodialysis, biochemical analysis, infusion, etc.
2. Purified drinking water, distilled water, natural water, mineral water, mineralized water, pure water for blending liquor, water for saccharification of beer and filtration of pure draft beer in the beverage industry.
3. Making pure and ultra-pure water for the electronic industry, such as monocrystalline silicon semiconductor integrated circuit block, picture tube, glass shell, liquid crystal display, etc.
4. Deionized water for electroplating process, pure water for battery production process, pure water for surface coating and cleaning of
automobiles, household appliances and building materials, pure water for coated glass, and desiccating brine for textile and dyeing process.
5. Water purification for hotels, buildings, communities and swimming pools.
6, and cosmetics manufacturing and other USES.
RO System configuration list
| NO. | Device Description | Origin/brand | Quantity |

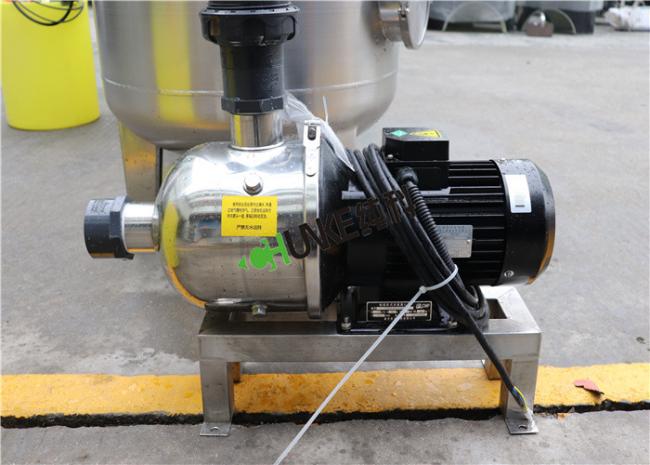

| 1 | Raw water pump(CHL2-40 SS304 ) | CNP | 1 Set |
| A. Flow: 2.0m3/H Head: 29m K = 0.55kw | |||
| B. Including: inlet valve, return valve, pipe fittings and so on | |||
| 2 | Sand filter CK-1465/Ф350X1650MM | CHUNKE | 1 Set |
| A. FRP tank | CHUNKE | ||
| B. Manual Valve F56F | Runixn | 1 Set | |
| C. Top&bottom water distributor and center pipe | 1 Set | ||
| 3 | Carbon filter CK-1465/Ф350X1650MM | CHUNKE | 1 Set |
| A. FRP tank | CHUNKE | ||
| B. Manual Valve F56F | Runixn | 1 Set | |
| C. Top&bottom water distributor and center pipe | 1 Set | ||
| 4 | 5μm Cartridge filter | CHUNKE | 1 Set |
| A. Model:Ф195X500X5core material:ABS | CHUNKE | 1 Set | |
| B. 20″×5μm PP filters | China | 5pcs | |

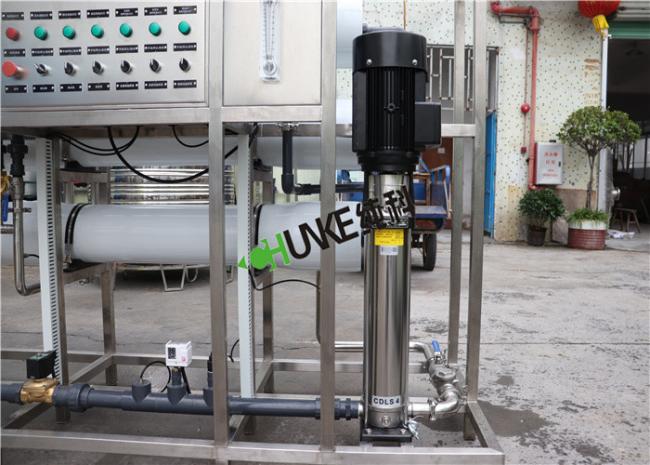

| 5 | High pressure pump CDL2S-15 | CNP | 1 Set |
| A. Flow:2.0m3/h Head:112m | |||
| B. Material:SS304 K=1.5KW | |||
| 6 | Reverse osmosis water production: 1m3/h, desalination rate:96～99%, System water utilization: ≥ 60% | 1 Set | |
| A. Membrane housing 4040-1core SS304 | CHUNKE | 4pcs | |
| B. Membrane element 4040 | Vontron | 4pcs | |
| C. 304 Stainless steel frame | 1 Set | ||
| D. Water inlet solenoid valve | 1PC | ||
| E. Strong water solenoid valve | 1 Set | ||
| F. High pressure water inlet control valve | 1PC | ||
| G. Concentrated water flow control valve | 1 Set | ||
| 7 | Pipe fittings, valves U-PVC | China | 1 Set |
| 8 | Electronic control system | CHUNKE | 1 Set |
| Main cotrol box:PC programmable automatic control, France Schneider contactors, thermal relays, knobs, switches, lights, Korean pressure controller, time controller. | |||
| 9 | Filter Media | China | 1 Set |
| A. Quartz sand | China | 150KG | |
| B. Activated carbon | China | 50KG | |
| 10 | Pressure gauges | China | 1 Set |
| A. Reverse osmosis pressure gauge 0～25kgf/ cm2 | China | 2pcs | |
| B. High pressure pump low pressure protection switch | China | 1PC | |
| C. System pressure gauge 0～6kgf/ cm2 | China | 2pcs | |
| D. Pure water conductivity meter | China | 1 Set | |
| E. PC Program controller | China | 1 Set | |
| 11 | Flowmeter Panel type(10GPM) | China | |
| A. One stage Pure water flowmeter(Panel type 10GPM) | China | 1 Set | |
| B. One stage Strong water flowmeter(Panel type 10GPM) | China | 1 Set | |

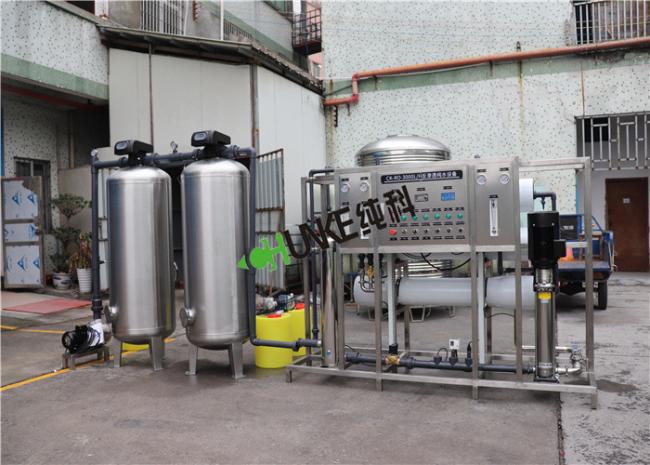

RO System Pictures
