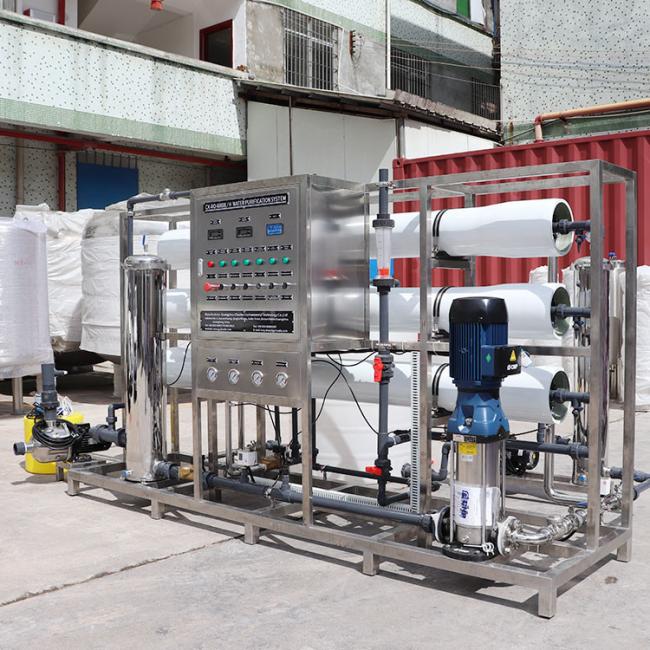

6000 LPH Industrial RO Water Treatment Plant With CNP Pump
Water Purifier Ro reverse osmosis system for Sales Bottle Water Boiled Water Store
New model 6000 LPH industrial reverse osmosis water purification machine, complete bottle water production line
General flow chart
Raw water source > booster pump > quartz sand filter > active carbon filter > water softener > Cartridge filter > RO equipment > UV sterilizer > pure water storage tank < ozone machine
The Reverse Osmosis process uses a semi-permeable membrane to separate and remove dissolved solids, organics, pyrogens, submicron collodial matter, viruses, and bacteria from water. The process is called "Reverse" Osmosis since it requires pressure to force pure water across a membrane, leaving the impurities behind. Reverse Osmosis is capable of removing 95 - 99% of the total dissolved solids (TDS) and 99% of all bacteria, thus providing safe, pure water.
1T/2T Carbon Water Filter System Technical route and flow diagram instructions
The technical route is as following.
Raw tank-->Booster pump -->Quartz sand filter-->activated carbon filter--->Softener-->Sediment filter-->High pressure pump-->RO desalination device-->Permeate tank
| 1 | Raw water pump | provide the pressure to quartz sand filter/active carbon filter/softener. |
| 2 | Multi-medium filter | get rid of turbidity, suspended matter, organic matter, colloid, etc. |
| 3 | Active Carbon filter | Remove the color, smell, free chloride, organic matter, harmful matter, etc. |
| 4 | Softener | exchange "ions" of calcium and magnesium with the most common and easiest method. |
| 5 | Security filter | prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um, |
| 6 | High pressure pump | Provide the high pressure to RO membrane. |
| 7 | RO system | main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions. |
Our products can be widely used in food, beverage, Electroplating, electronics, optics, chemicals, semiconductors, cosmetics, thermal power plants, metallurgy, light industry, automobile manufacturing, pharmaceutical, medical, industrial water and other fields.
Main Features
1) Equipment operation cost is low,easy to manage;
2) Filter material can use many times after backwashing,long service life;
3) Strength,high temperature resistant,filter out of shape not easily;
4) The filter material spotlessness,the filter medium pollution;
5) Wide range of uses.
