1T Per Hour RO Water Treatment Equipment Plant Cost Purifier Reverse Osmosis Machine for Business
1T Per Hour RO Water Treatment Equipment Plant Cost Purifier Reverse Osmosis Machine for Business
Main Processing Design:
Raw water pump→ Quartz sand filter → Activated carbon filter→Water softener → Cartridge filter→ High-pressure pump→ 1st RO system.

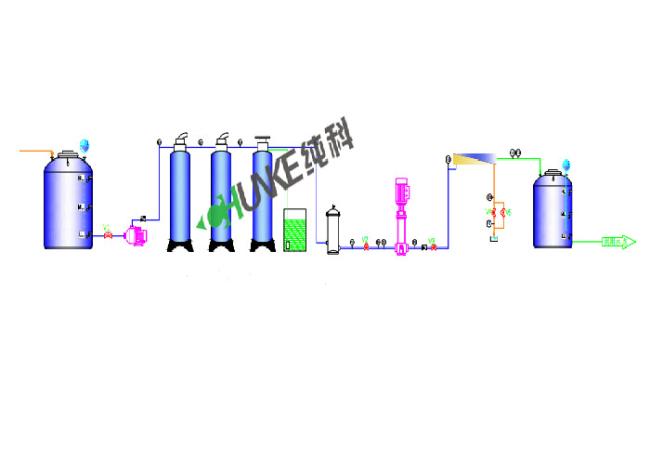

The picture is flow chart:
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter--get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener(optional)--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
Technical parameter:
| Model | Productivity(T/H) | Motor power(KW) | Recovery rate(%) | Outlet water conductivity (μS/CM) | Raw water conductivity (μS/CM) |
|---|---|---|---|---|---|
| CK-RO-500L | 0.5 | 1.5 | 50 | ≤10 | ≤300 |
| CK-RO-1000L | 1 | 2.2 | 50 | ≤10 | ≤300 |
| CK-RO-2000L | 2 | 3 | 50-60 | ≤10 | ≤300 |
| CK-RO-3000L | 3 | 4.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-4000L | 4 | 6.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-5000L | 5 | 8 | 60-70 | ≤10 | ≤300 |
| CK-RO-10000L | 10 | 15 | 60-70 | ≤10 | ≤300 |
| CK-RO-20000L | 20 | 22 | 65-75 | ≤10 | ≤300 |
| CK-RO-30000L | 30 | 26 | 70-75 | ≤10 | ≤300 |
| CK-RO-50000L | 50 | 55 | 70-75 | ≤10 | ≤300 |
RO water treatment system detail picture

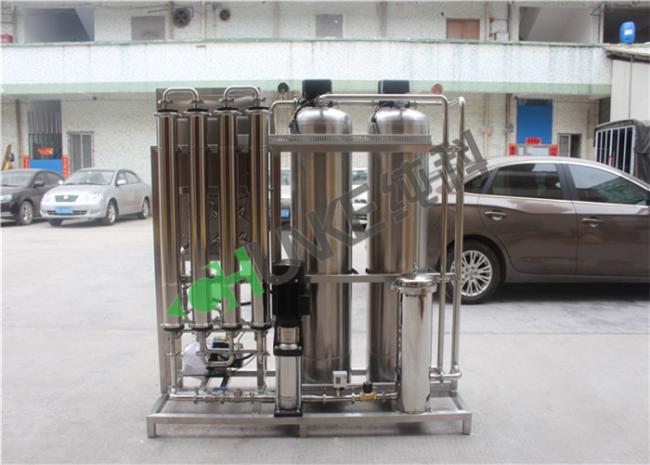

Front view:This water treatment system with quartz sand filter, active Carbon filter . The whole system is in stainless steel material , automatic control.
Back view:According the machine back view,you can see the membrane housing,high pressure pump,cartridge filter.
Electric control :

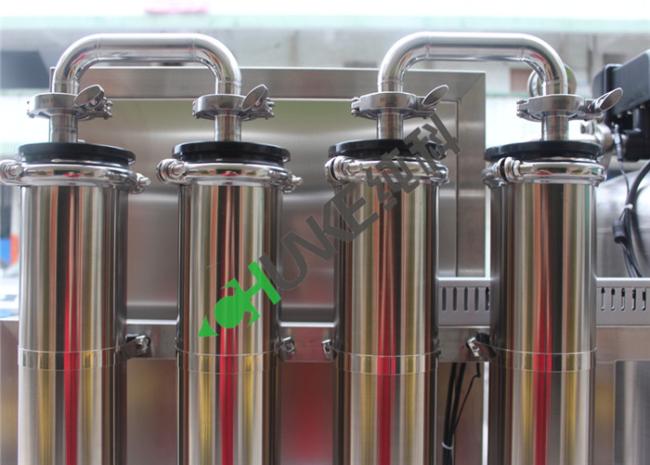

RO membrane:
Raw water pump:
Guangzhou Chunke Environmental Technology Co., Ltd. is a national high-tech enterprises, is committed to the
development of water purification industry, production, sales and after-sales service since 2009.The plant covers an
area of 4,000 square meters. Has a number of water treatment technology patent certificate and through the EU CE
certification and ISO9001 certification, the company has three senior engineers, full-time R & D personnel over 15
people, with more than 10 years of water treatment.
We are honor to provide you with a solution. If you can provide a raw water quality report, it would be even better.
