China 500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment for sale

500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment

Price Negotiable

Price: Negotiable

MOQ: 1 unit

Delivery Time: 7-10 days

Brand: CHUNKE

Product Description

500L Per Hour Reverse Osmosis Systems deionized water plant industrial machinery equipment

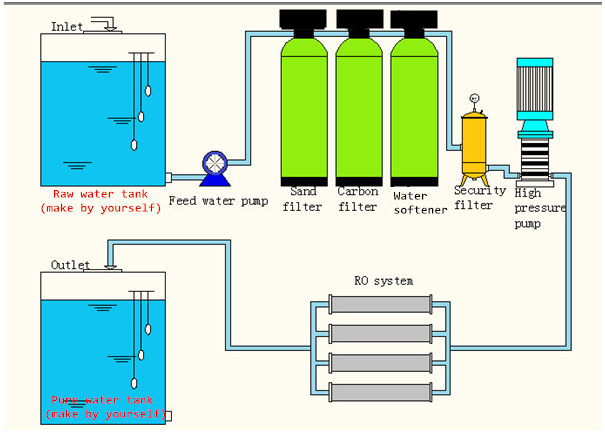

Technological process of RO system:

(raw water+ raw water tank)+ raw water pump+ sand filter+ carbon filter+softener + security filter+ high pressure pump+ reverse osmosis system+ (pure water tank + water supply points)

Working process

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.

2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.

3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.

4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5μm.

6. High pressure pump--Provide the high pressure to RO membrane.

7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

PRODUCT SPECIFICATIONS

Model	500LPH two stages	1000LPH two satages	2000LPH two stages	3000LPH two stages	4000LPH two stages	5000LPH two stages
Flow of produced water	0.3-0.7 (m/h)	0.5-1.2 (m/h)	1.7-2.2 (m/h)	2.8-3.2 (m/h)	3.8-4.2 (m/h)	4.5-5.2 (m/h)
Flow of concentrated water	0.10-0.2 (m/h)	0.10-0.3 (m/h)	0.2-0.4 (m/h)	0.3-0.5 (m/h)	0.4-0.6 (m/h)	0.4-0.6 (m/h)
Maximum working Pressure	0.4(MPa)	0.4(MPa)	0.4(MPa)	0.4(MPa)	0.4(MPa)	0.4(MPa)
Pressure difference between inlet and outlet	0.1-0.25 (MPa)	0.1-0.25 (MPa)	0.1-0.25 (MPa)	0.1-0.25 (MPa)	0.1-0.25 (MPa)	0.1-0.25 (MPa)
pressure of concentrated water (Mpa)	0.05-0.1	0.05-0.1	0.05-0.1	0.05-0.1	0.05-0.1	0.05-0.1
Maximum current(A)	3.5	3.5	3.5	3.5	3.5	3.5
Maximum Voltage(V)	200	340	340	340	340	340
Rate of Recovery	70-75%	75-80%	90-95%	90-95%	90-95%	90-95%
Working Temperature(C)	5-25	5-25	5-25	5-25	5-25	5-25
