Auto Valve 500L Per Hour RO Water Treatment Plant Filtering Machine Pure Water Equipment
Auto Valve 500L Per Hour RO Water Treatment Plant filtering machine pure water equipment
RO Water treatment Equipment:
1, capacity: 500-50000LPH
2, material: 304 S.S
3, Conductivity≤20
Water treatment equipment is for producing drinking water, foods factory, beverage factory, fruit&vegetable factory etc. The machine is integrated into a group, the assembly and transportation are rather convenient.
It's simply operation and has long lifespan.
Main complonents: RO membrane(Hydecanme),
high pressure pump(South.China)
Electricity conduction meter
Over high or over low pressure protection failities
304 Stainless steel
Suitable for investment for mid-scale enterprises
The standard of supplied water
Electricity conduction rate: Nor more than 10us/cm
Bacter no.: Not more than 20
Working process
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5μm.
6. High pressure pump--Provide the high pressure to RO membrane.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

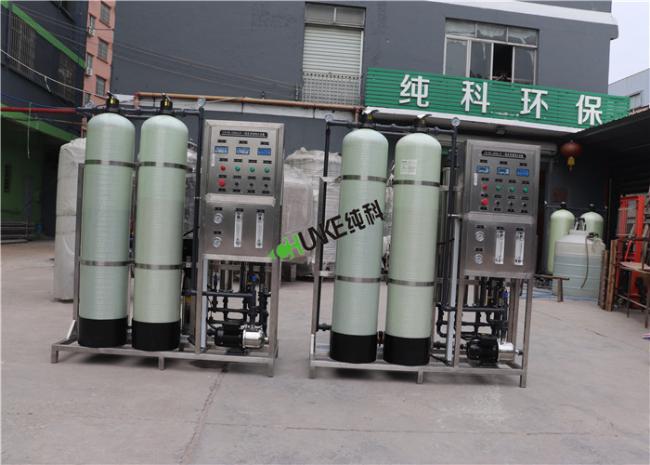

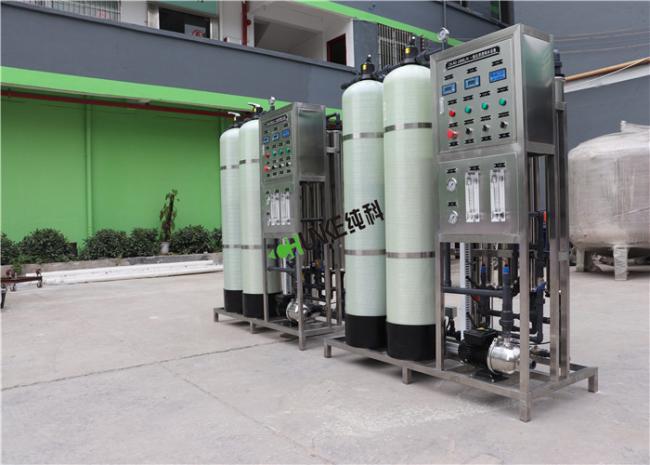

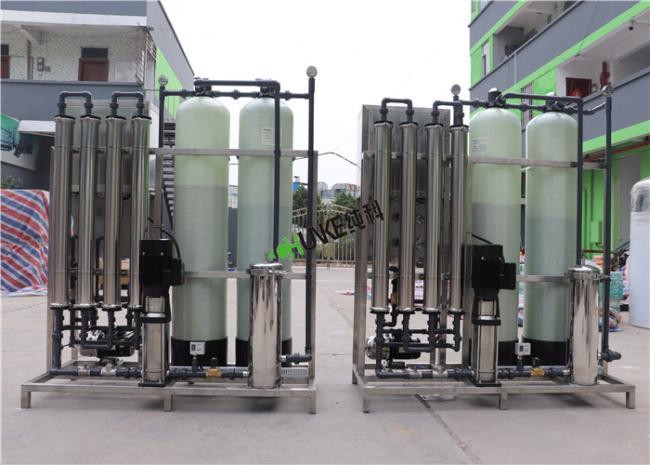

Detail Pictures :
