reverse osmosis machine for brackish water desalination treatment of 1000 liter per hour
1000LPH BW machine for salty water treatment
About the machine
| Raw water |
underground water/brackish water/well water/city water and so on |
| Materials | FRP |
| outlet water capacity | 1000L/H |
| Machine recovery | 60-70 percent |
| Desalination rate | 97.3 percent-98 percent |
| Power | 220V / 240V/380V 2.2KW |
| purified water quality standard | TDS<1000PPM ; TDS<2PPM for drinking standard |
What is RO (Reverse Osmosis) ?
Reverse osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions,molecules, and larger particles from drinking water. it could apply to both industrial processes and the production of potable water.

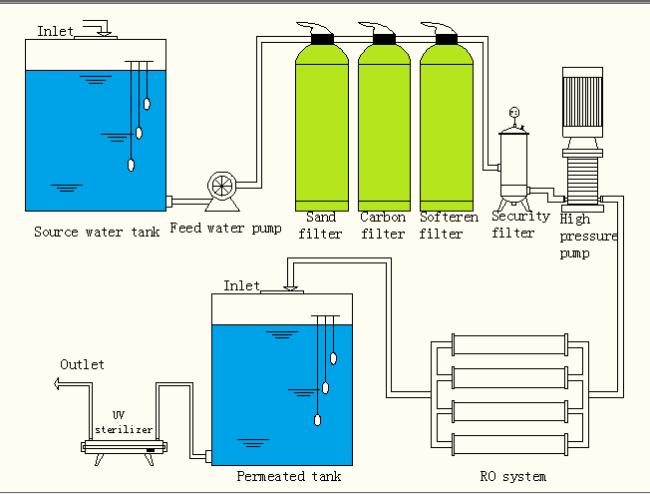

Introduction of the machine parts:
1. Feed water pump: provide the pressure to sand filter /active carbon filter/ softener
2. Sand filter: Get rid of turbidity, suspended solids, organic impurities and colloid etc.
3. Active Carbon filter: Remove the color, free chloride, organic matter and harmful matter etc.
4, Softener; Get rid of calcium, magnesium and bicarbonate ions in original / source water, reduce water hardness.
5. Cartridge filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump: Provide the high pressure to RO membrane (at least 2.0 Mpa).
7. RO system: main part of pure water treatment plant. The desaltation rate up to 99%, capable of removing over 99% of ions, bacterias, particles and organics.
System capacity changes significantly with water temperature and feed TDS,for higher TDS,a water analysis must be provided and could result In modifications to the system.Our reverse osmosis system are mostly custom designed specifically for you water treatment requirements by our experienced engineers.
|
∇ Description ∇ This water treatment system can effectively get rid of mud,organic,iron,manganese and oxide. Remove suspended substance,colloid,micro organism and heavy metal ion in the water. The system also reduce hardness of water to make all water quality specification fully meet the national drinking water standard.
|

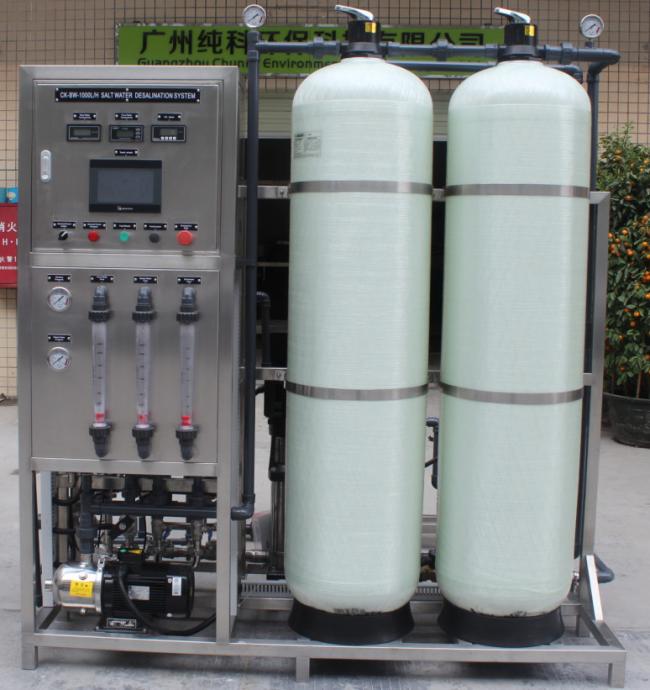

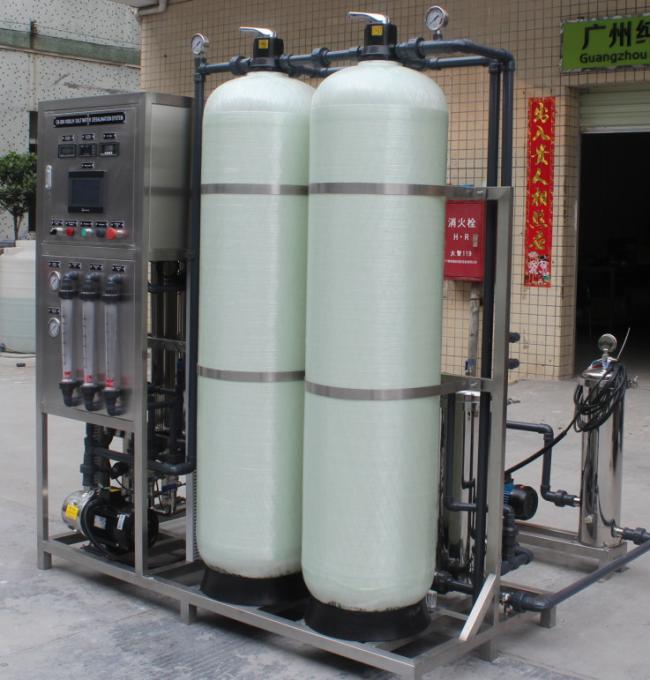

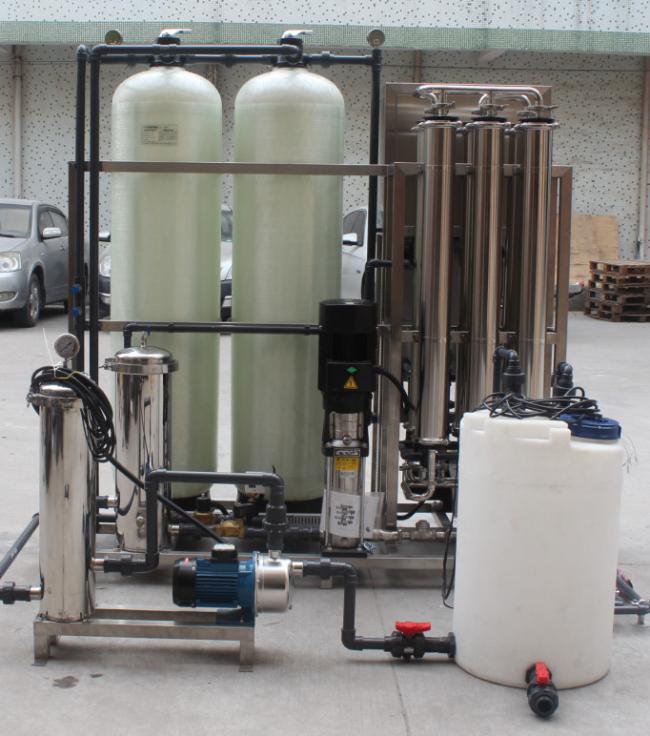

Backish water machine picture
About Our factory:
Guangzhou Chunke Environmental Protection Technology Co., Ltd. is a collection of water treatment equipment and accessories as one of the environmental protection technology enterprises, committed to environmental water purification industry research and development, production, sales and after-sales service.
The main production and operation of water treatment equipment: reverse osmosis equipment, ultrafiltration equipment, EDI electric desalination system, seawater desalination, etc. Products are widely used in electronics, electroplating, power plants, medicine, petroleum, chemical, food and beverage and printing and dyeing industries.Our technical engineers have over 20 years of experience.
