Gabion Cage
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
1.Gabion cage materials: Galvanized iron wire and PVC coated wire,Galfan(95%zinc-5%Alu Alloy)low carbon
steel wire,which has good ability of resistance corrosion.
2.Gabion cage mesh wire:2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4.0mm
3.Gabion cage selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm

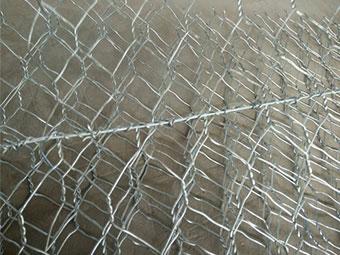

4.Gabion cage mesh hole: 6*8cm,8*10cm,10*12cm,12*14cm
5.Gabion cage Tie wire/lacing wire:2.2mm,2% of weight
6.Gabion cage Zinc coating:250-300/m2
7.Gabion cage size:1*1*1m, 2*1*1m, 2*1*0.5m, 3*1*1m, 4*1*1m, as your request
Specifications of Gabion Cage
| Gabion Sizes Notes | ||||
| Length(m) | Width(m) | Height(m) | MESH OPENINGS | Tolerance |
| 2.00 | 1.00 | 0.30 | 6x8 8x10 10x12 12x15 |
Length ± 3% Width ± 5% Height ± 5% |
| 3.00 | 1.00 | 0.30 | ||
| 4.00 | 1.00 | 0.30 | ||
| 2.00 | 1.00 | 0.50 | ||
| 3.00 | 1.00 | 0.50 | ||
| 4.00 | 1.00 | 0.50 | ||
| 1.00 | 1.00 | 1.00 | ||
| 1.50 | 1.00 | 1.00 | ||
| 2.00 | 1.00 | 1.00 | ||
| 3.00 | 1.00 | 1.00 | ||
| 4.00 | 1.00 | 1.00 | ||

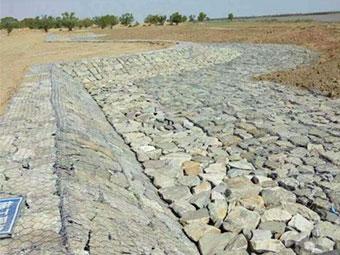

Application: Gabion is ideal materials for flood prevention and flood control in protecting and support seawall, hillside, road bridges, reservoir and other civil engineering in the form of mesh containers filed with stones
