WONDERY Continuous Support Roller Hardening Mesh Belt Furnace with 200kg/hour Productivity and PID Temperature Regulation
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
WONDERY
Product Description

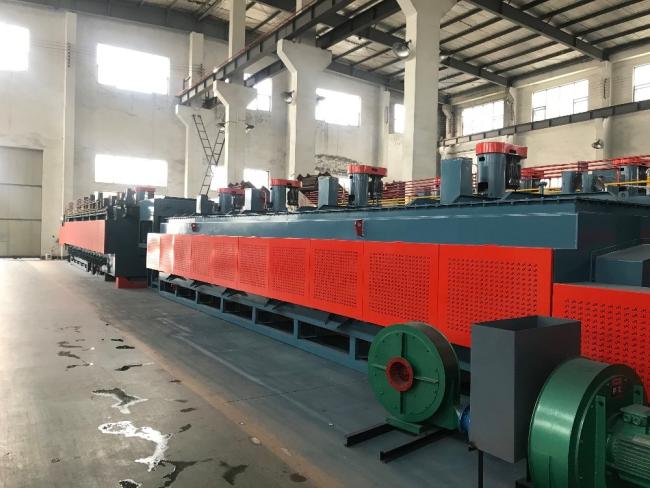

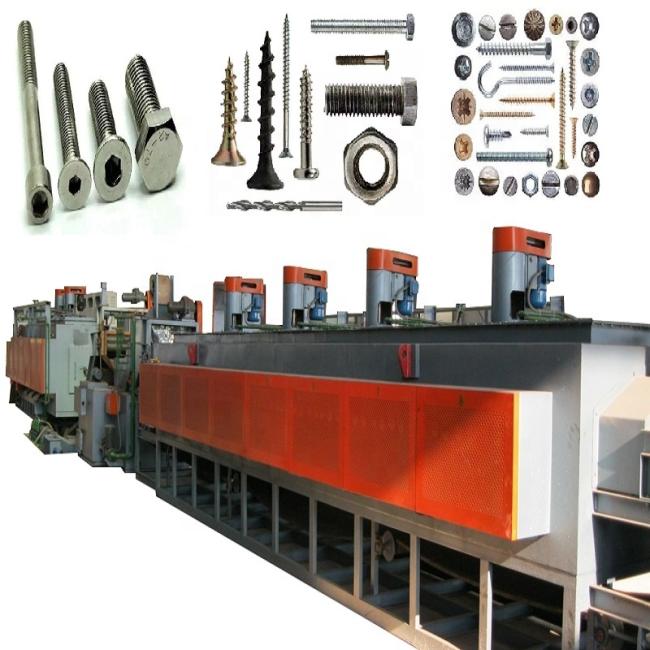

WONDERY continuous support roller hardening mesh belt furnace ,
heat treatment furnace for concrete nails
Advantages of Mesh Belt Furnace
1) The continuous hardening mesh belt furnace combines the advanced technologies from Taiwan. Its key parts are imported from overseas.

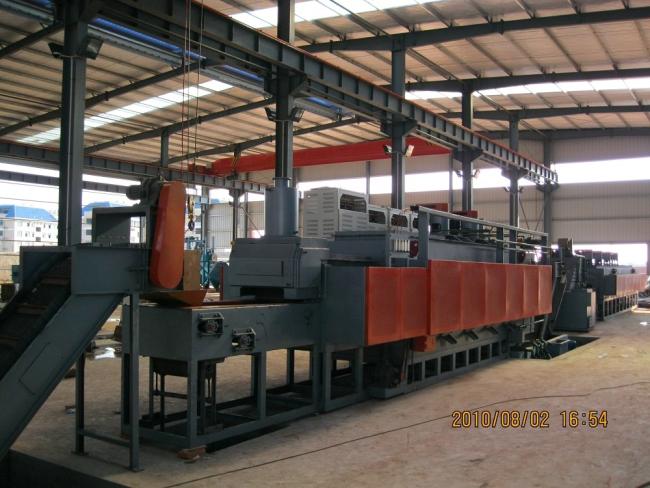

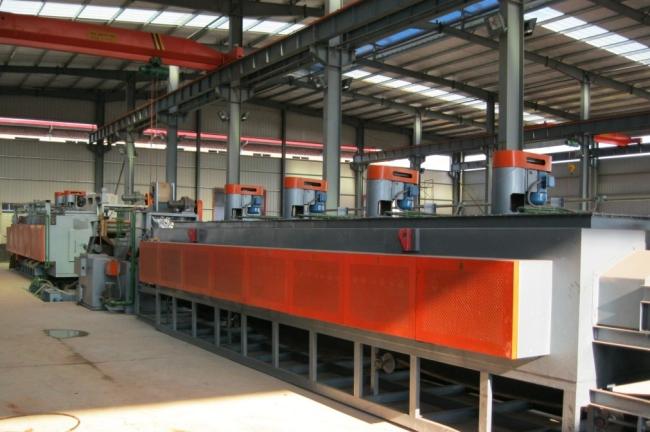

2) The heat treatment furnacef for concrete nails is comprised of magnetic charging machine, precleaning machine, support roller mesh belt quenching furnace, quenching tank, oil remove stand, post-cleaning machine, support roller mesh belt tempering furnace, and electrical control system.
3) The quenching furnace and tempering furnace could be heated by natural gas which is energy saving, lower cost and higher efficiency.

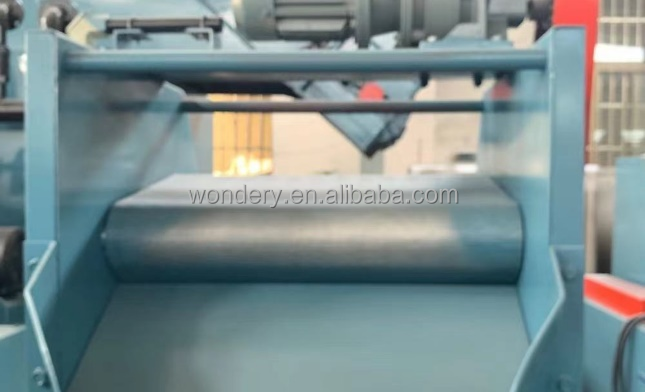

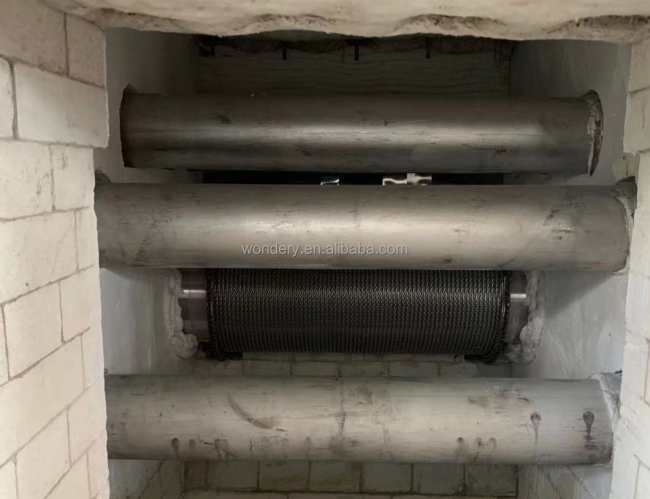

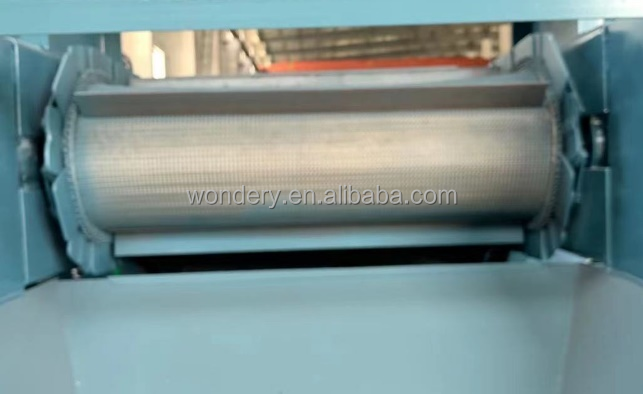

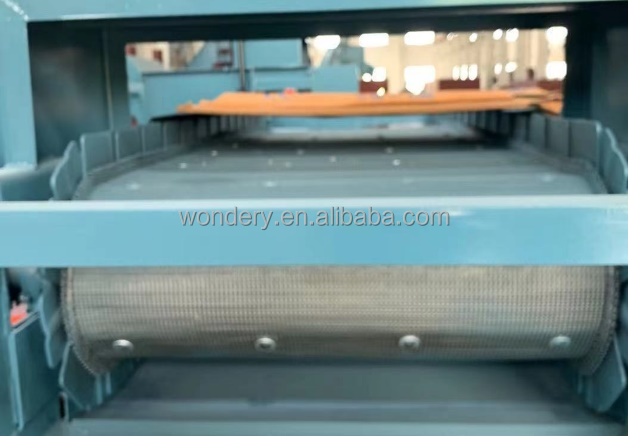

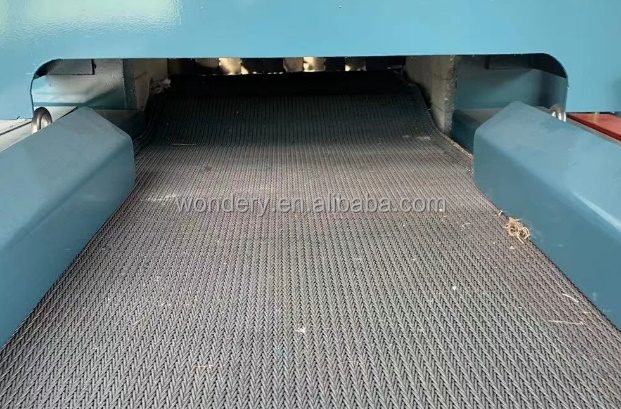

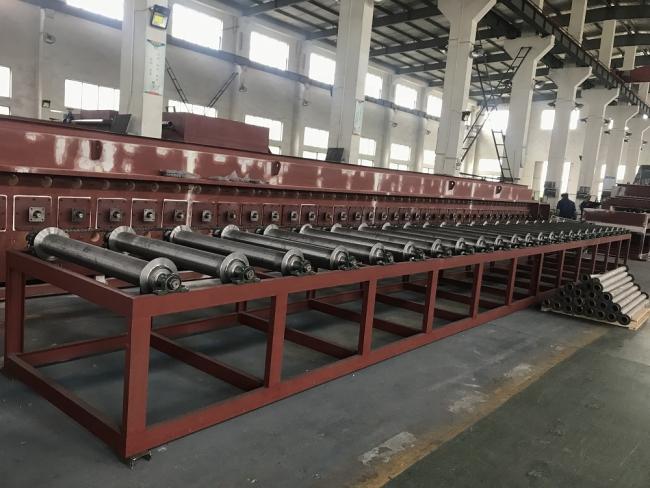

4) The mesh belt is supported by the support rollers with synchronized movement so that the mesh belt bears a minimum tension.

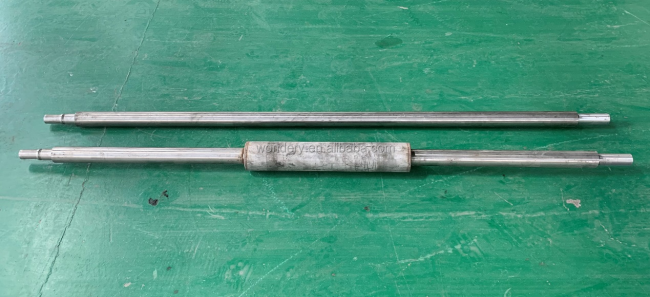

5) The rollers are supported by special high-pressure sealed bearing.
6) The mesh belt is designed with abnormal transportation alarm device to assure the stable movement of the mesh belt.
7) The drip-in atmosphere is gasified by a gasifier and then sent into the furnace. The atmosphere is monitored and controlled continuously by an oxygen probe.
8) The hot mesh belt returns back to the entrance of the furnace and preheats the cold parts, which saves energy greatly.
2) The heat treatment furnacef for concrete nails is comprised of magnetic charging machine, precleaning machine, support roller mesh belt quenching furnace, quenching tank, oil remove stand, post-cleaning machine, support roller mesh belt tempering furnace, and electrical control system.
3) The quenching furnace and tempering furnace could be heated by natural gas which is energy saving, lower cost and higher efficiency.
4) The mesh belt is supported by the support rollers with synchronized movement so that the mesh belt bears a minimum tension.
5) The rollers are supported by special high-pressure sealed bearing.
6) The mesh belt is designed with abnormal transportation alarm device to assure the stable movement of the mesh belt.
7) The drip-in atmosphere is gasified by a gasifier and then sent into the furnace. The atmosphere is monitored and controlled continuously by an oxygen probe.
8) The hot mesh belt returns back to the entrance of the furnace and preheats the cold parts, which saves energy greatly.
Specification
item | Index |
Place of Origin | China |
Condition | New |
Type | Resistance Furnace |
name of equipment | continuous support roller hardening mesh belt furnace , heat treatment furnace for concrete nails |
Usage | Heat Treatment Furnace |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC, Bearing, Gearbox, Motor, Gear |
Brand Name | WONDERY |
Voltage | 380V |
Dimension(L*W*H) | Based on the equipment |
Certification | CE |
Weight (T) | 28T |
Power (kW) | 256 |
Warranty | 1 YEAR |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Key Selling Points | Competitive Price |
Local Service Location | Turkey, Russia |
Applicable Industries | Manufacturing Plant |
Showroom Location | Turkey, Russia |
parts to be treated | nails, screws |
furnace type | support-roller mesh belt furnace |
energy | electricity |
features | PID temperature regulation |

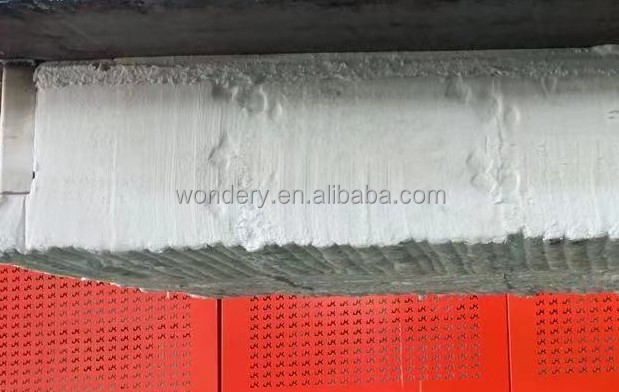

main refractory lining brand | ISOLITE, Morgan, HSA (Japan) |
protective atmosphere | methanol, propane |
productivity | 200kg/hour |
total length | 26 meters |
Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
continuous support roller hardening mesh belt furnace ,
heat treatment furnace for concrete nails
heat treatment furnace for concrete nails
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the mesh belt heat treatment furnace is 90-120 days after receipt of down payment.
5.Will you provide installation and commissioning service for the customer?
We first recommend our customer to choose online commissioning service for the mesh belt furnace. But if the customer request, we would send our engineers to customer's side.
We first recommend our customer to choose online commissioning service for the mesh belt furnace. But if the customer request, we would send our engineers to customer's side.
continuous support roller hardening mesh belt furnace , heat treatment furnace for concrete nails
