WONDERY Continuous Muffle Mesh Belt Heat Treatment Furnace with PID Temperature Regulation for Carburizing Process
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
WONDERY
Product Description

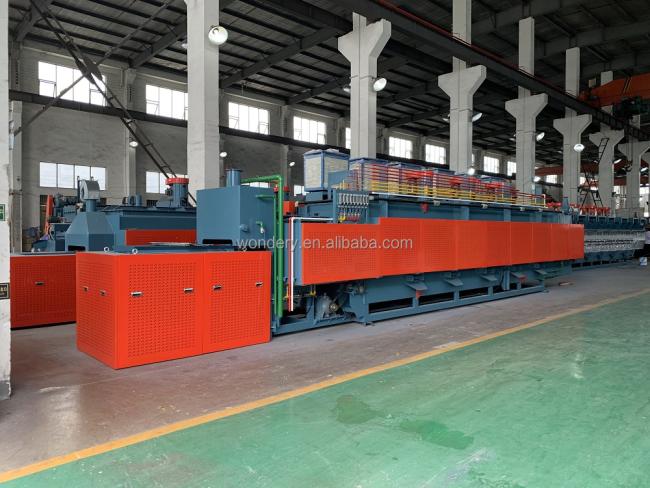

Continuous Muffle Mesh Belt Heat Treatment Furnace
Condition | New |
Type | Resistance Furnace |
Usage | Heat Treatment Furnace |
Brand Name | WONDERY |
Voltage | 380V |
Dimension(L*W*H) | Based on the equipment |
Certification | CE |
Weight (T) | 50T |
Power (kW) | 350 |
Warranty | 1 Year |
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support | |
After Warranty Service | Video technical support |
Key Selling Points | Long Service Life |
Local Service Location | United States |
Applicable Industries | Manufacturing Plant |
Product Name | Continuous Muffle Mesh Belt Heat Treatment Furnace |
parts to be treated | fittings, fastening, chains, bearings and mechanical parts |
furnace type | roller mesh belt resistance furnace |
features | PID temperature regulation |
heat treatment process | carburizing, carbo-nitriding, bright quenching, tempering |
main refractory lining brand | ISOLITE, Morgan, HSA (Japan) |
voltage | according to customer's requirement |
energy | electricity |
Weight | Based on the equipment |
Product Application
Widely used for heat treatment of mechanical parts like automobile fittings, fastening, chains, bearings and mechanical parts for tools etc. The furnace has the functions of automatic charging, carburizing (or carburizing & nitriding), quenching, cleaning, cooling and tempering. The computerizing office management is available through a computer control system equipped.
Main Features
1) To meet the production needs of fastening parts, the furnace employs Taiwan technology, and improves its energy-saving effect in the area of refractory lining.
2) The production line employs low-voltage heating through the transformer to prolong the service life of the heating tubes.
3) The mesh belt is supported by the support rollers with synchronized movement so that the mesh belt bears a minimum tension.
4) The rollers are supported by special high-pressure sealed bearing.
5) The mesh belt is designed with abnormal transportation alarm device to assure the stable movement of the mesh belt.
6) The drip-in atmosphere is gasified by a gasifier and then sent into the furnace. The atmosphere is monitored and controlled continuously by an oxygen probe.
7) The hot mesh belt returns back to the entrance of the furnace and preheats the cold partss, which saves energy greatly.
Widely used for heat treatment of mechanical parts like automobile fittings, fastening, chains, bearings and mechanical parts for tools etc. The furnace has the functions of automatic charging, carburizing (or carburizing & nitriding), quenching, cleaning, cooling and tempering. The computerizing office management is available through a computer control system equipped.
Main Features
1) To meet the production needs of fastening parts, the furnace employs Taiwan technology, and improves its energy-saving effect in the area of refractory lining.
2) The production line employs low-voltage heating through the transformer to prolong the service life of the heating tubes.
3) The mesh belt is supported by the support rollers with synchronized movement so that the mesh belt bears a minimum tension.
4) The rollers are supported by special high-pressure sealed bearing.
5) The mesh belt is designed with abnormal transportation alarm device to assure the stable movement of the mesh belt.
6) The drip-in atmosphere is gasified by a gasifier and then sent into the furnace. The atmosphere is monitored and controlled continuously by an oxygen probe.
7) The hot mesh belt returns back to the entrance of the furnace and preheats the cold partss, which saves energy greatly.
Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
