400KW Power Mesh Belt Furnace with PID Temperature Regulation for Long Service Life
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
WONDERY
Product Description
Product Application

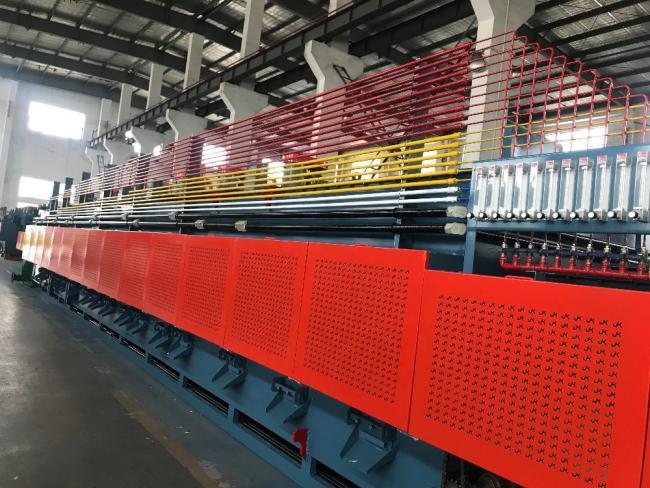

Electric Resistance Continuous Conveyor Belt Furnace For is widely used for carburizing of drywall screw and self-tapping screw.

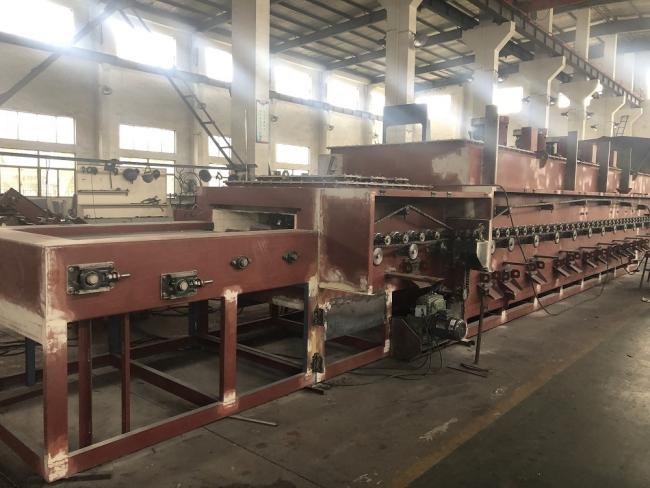

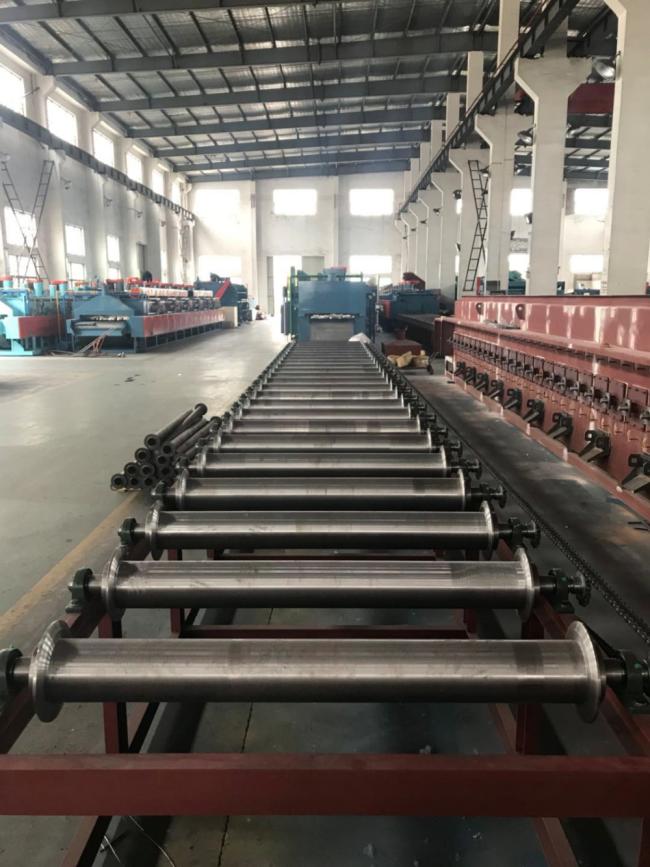

The production line is comprised of magnetic belt charging machine, pre-cleaning machine, support roller quenching furnace, quenching tank, oil removing stand, post-cleaning machine, support-roller mesh belt tempering furnace, and electrical control system.
The heat treatment line combines the advanced technologies from Taiwan. Its key parts are imported from overseas.
conveyor furnaceconveyor furnaceconveyor furnaceconveyor furnaceconveyor furnaceconveyor furnace
SPECIFICATIONS FOR Electrical Continuous Carburizing Mesh Belt Furnace | ||||

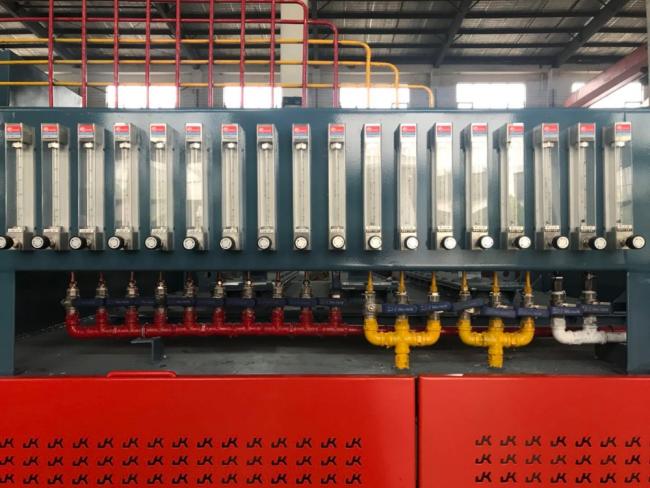

Furnace atmosphere | quenching furnace | methanol+propane+ammonia | ||
tempering furnace | air | |||
Charging machine | Mesh belt width | 700mm | ||
Precleaning machine | Mesh belt width | 600mm | ||
Effective length | 2400mm | |||
Tank volume | 2m3 | |||
Mesh belt type quenching furnace | Mesh belt width | 600mm | ||
Inlet length | 2000 mm | |||
Preheating belt length | 1500mm | |||
Working area length | 6000mm | |||
Effective height | 100mm | |||
Quenching oil tank | Mesh belt width | 1000mm | ||
Oil tank depth | 2000mm | |||
Oil tank length | 4200mm | |||
Tank volume | 12m3 | |||
Oil removing stand | Mesh belt width | 900mm | ||
Post-cleaning machine | Mesh belt width | 900mm | ||
Effective length | 2400mm | |||
Tank volume | 2m3 | |||
Mesh belt tempering furnace | Effective height | 100mm | ||
Mesh belt width | 850mm | |||
Heating area length | 6000mm | |||
Model Table
Model | Rated Power (KW) | Rated Temperature (℃) | Working Size (cm) | Productivity (kg/hour) |
RCW-1A | 100 | 920 | 400*400*100 | 160~200 |
RCW-2A | 110 | 920 | 400*4700*100 | 180~250 |
RCWA-2A | 120 | 920 | 500*4000*100 | 180~250 |
RCWA-2B | 130 | 920 | 500*4700*100 | 250~300 |
RCWA-3 | 160 | 920 | 600*4700*100 | 300~350 |
RCWA-3A | 160 | 920 | 500*6000*100 | 300~350 |
RCWA-4 | 180 | 920 | 600*6000*100 | 350~420 |
RCWA-4A | 180 | 920 | 800*4700*100 | 450~520 |
RCWA-5 | 220 | 920 | 800*6000*100 | 450~520 |
RCWA-6 | 300 | 920 | 800*7600*100 | 550~720 |
RCWA-7 | 380 | 920 | 1000*7600*100 | 880~1000 |
Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
