WONDERY High Performance Natural Gas Fired Heat Treatment Furnace for Cylinder with 15pcs per hour Production
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
WONDERY
Product Description
WONDERY High Performance Natural Gas Fired Quenching Hardening Tempering Heat Treatment Furnace For Cylinder
Product Application

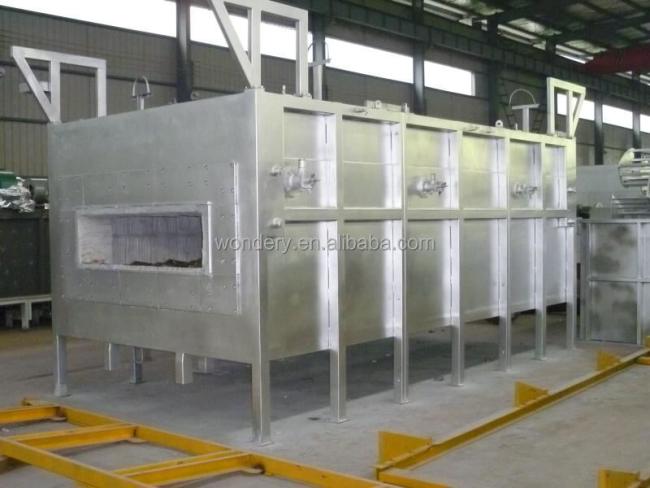

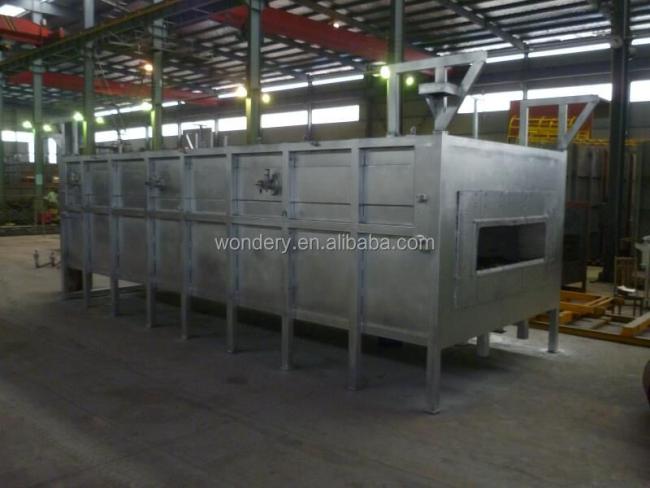

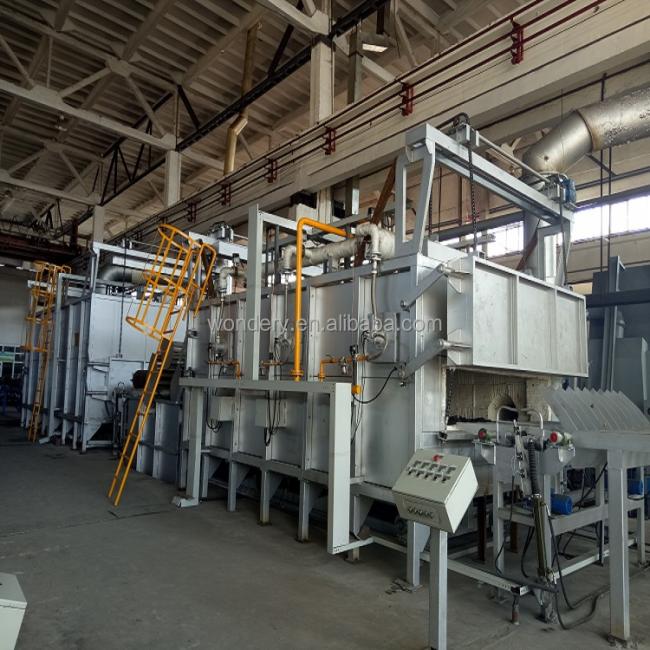

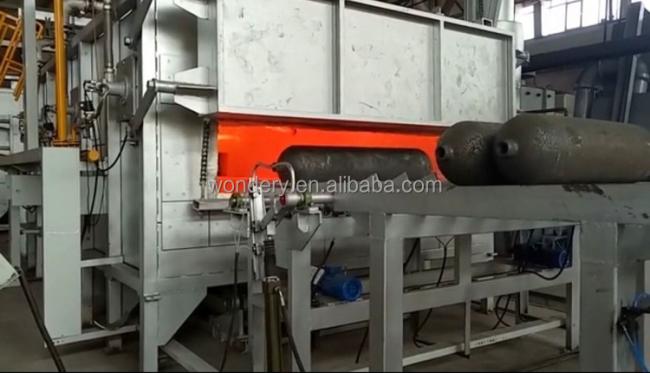

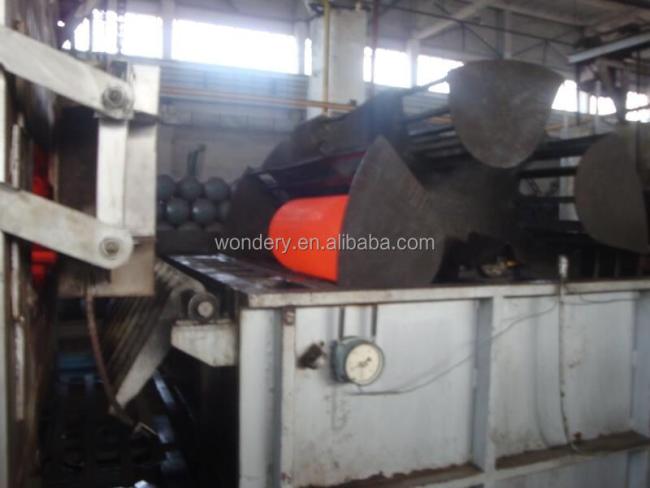

This walking beam type furnace is installed in one line. Shell and framework are made of steel plate and formed steel. Furnace body is supported in a certain height by column and rack, so that furnace can run in stable and reliable condition, shell is made of A3 4mm steel plates which are welded with furnace channel steel.
Furnace lining: to ensure temperature is rising rapidly, save energy, and increase temperature control accuracy, the furnace adopts full fiber structure. Those fiber blocks are mounted along with furnace wall by stainless steel anchor; to prolong service life of lining, after fiber blocks are fixed with furnace wall, one layer of 1Cr13 δ2mm stainless steel sheet is coated at surface of fiber, this kind of structure has more than 8 years of service life.
Specifications For WONDERY High Performance Natural Gas Fired Quenching Hardening Tempering Heat Treatment Furnace For Cylinder | ||
Hardening Furnace | ||
Loading table | automatic control of charging and location | |
Rated Temperature | ≤950℃ | |
Effective dimension of working zone | 5000×2500×300mm | |
Effective working station in side furnace chamber | 15pcs | |
Temperature Uniformity | ±10℃ | |
Burner capacity | 90Nm3/h, calorific value of fuel: 8400Kcal/Nm3 | |
Heating Zone | 3 zones (one pre-heating zone, 1 zones for heating, and 1 zone for soaking), temperature of each zone is separately controlled. | |

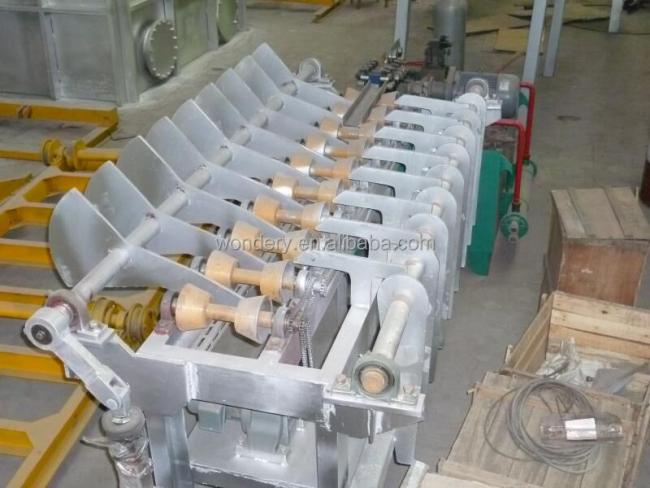

Transfer device | hydraulic driving device drive the lifting beam to move | |
Furnace hearth sealing method | solid sealing method | |
moving cycle for Standard Cylinder | 4min/cycle | |
Charge/discharge method | end in & end out | |
Quenching Tank | ||
Quenching Media | Water basic liquid | |
Quenching method | cylinders are horizontally emerged inside of tank | |
Circulating system | double impellers stirring system, and equipped with guide-flowing device | |
Circulating cooling system | it includes water collection tank, circulating pump, plate-type heat exchanger, (and the tank for storage cold water and cooling tower.) | |
Temperature of quenching water | 35～65℃ | |
Cooling water consumption | 85m3/h | |
Tempering Furnace | ||
Rated Temperature | ≤650℃ | |
Effective Dimension of Working Chamber | 7400×2500×300mm | |
Effective working station inside of furnace chamber | 23pcs | |
Temperature uniformity | ±8℃ | |
Heating Zones | 3 zones | |

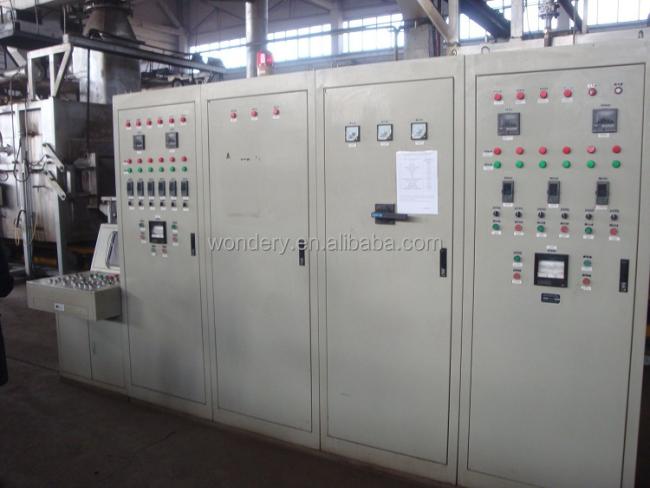

Combustion system and temperature control system:
It adopts high speed burner for heating up. Impulse combustion control method which is popular used in abroad has the following main characteristics:
a. Air and gas ratio can be adjusted automatically with the temperature control process, the combustion condition is regulated at the best ratio, and fuel can be fired completely.
b. Burner has automatic ignition and flame detection function, which is more reliable and secure.
c. High speed flame (80m/s) produced by burner is stirring violently inside of furnace chamber which can meet temperature uniformity requirement.

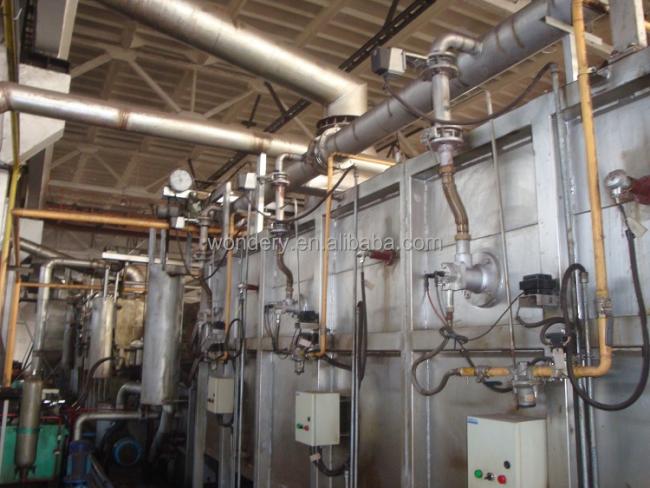

Gas heating device: it mainly consists of gas burner, gas solenoid valve, air-gas ratio valve, air regulating valve, igniting transformer, igniting controller, filter, cut off valve on main pipe line, air fan and piping. Etc. The control system output 4-20mA signal to regular gas supply volume, thus flame can be proportional controlled, and can be met temperature control accuracy.
Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer'sside. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
