Reveberatory Gas Fired Aluminum Metal Melting Furnaces Scraps 2000 Kgs
Reveberatory Gas Fired Aluminum Metal Melting Furnaces Scraps 2000 Kgs
General Introduction

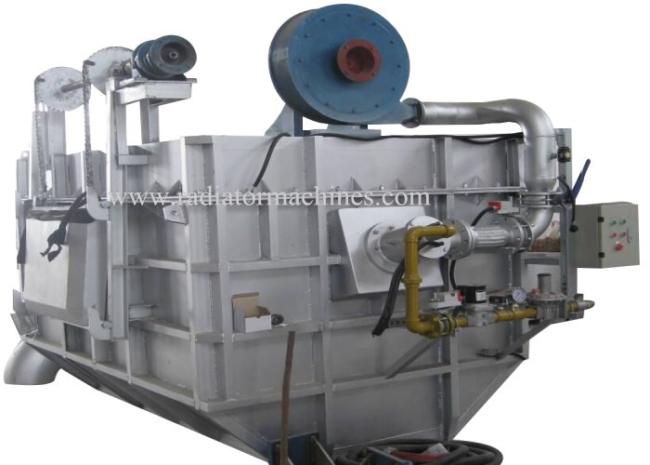

The aluminum metal melting furnace has a compact structure for melting. The melting pool is formed
by once-forming casting material, which has a high strength and a long service life. The furnace employs
famous burner brand, which has functions of automatic ignition and temperature control.
The furnace also has over-temperature alarm device.
Technical Parameters
| model: SC-JY-2000 Type; |
| quantity: 1 set; |
| melting pool capacity: 2000kg; |
| fuel: diesel oil with calorific value at 9600Kcal/kg; |
| melting cycle: about 3 hours; |
| fuel consumption: about 75KG/Ton aluminum (at rated working conditions); |
|
rated working temperature of the melting chamber: 950℃ (atmosphere temperature); temperature control accuracy: ±10℃ (aluminum liquid); |
|
rated working conditions: a) The metal melting furnace and other facilities are working at a normal condition; b) The calorific value of the fuel meets 9600Kcal/ kg; c) The furnace is working in a continuous manner. d) The fuel oil consumption is the average consumption value of 3 hours of continuous working. e) The melting chamber should keep at least 200KG molten aluminum in the continuous melting manner; f) When charging raw scrap into the melting pool, the worker should put in raw material as much as possible, but he should make sure that he couldn’t charge over the maximum capacity of the melting pool. |
Buyer’s Responsibility
1. The oil pipe is connected to the furnace body.
2. Utility power: 220V ±10%, 50HZ.
Supply Scope
|
Metal melting furnace body, 1 set; Control system, 1 set; Thermal coupling for measuring the molten aluminum temperature, 1 piece; Thermal coupling for measuring the hearth temperature, 1 piece; Burning system, 1 set; User manual, 1 copy. |
Company Product:
Our company supplies the oil fired or gas fired zinc powder rotary melting furnaces, oil or gas fired zinc
powder rotary metal melting furnace, gas oir oil fired aluminum scrap melting furnaces, reveberatory
aluminum melting furnace, continuous aluminum melting furnae, aluminium melting furnace crucible
melting furnace, aluminum liquid transfer ladles, aluminum ladle preheater, electric aluminium melting
furnace, electric aluminium holding furnace, gas fired aluminum holding furnace, box type resistance
furnace, etc.
