Lead Powder Rotary Metal Melting Furnaces Oil Fired 2000kg Capacity
Lead Powder Rotary Metal Melting Furnaces Oil Fired 2000kg Capacity
Product Application
The burner system employs famous brand gas burner, which has the advantages of automatic ignition, flame
protection and complete combustion.
The shape of the metal melting furnace is oval. Both sides of the furnace hearth are casted by special high
strength and unshaped refractory casting cement. The furnace has high speed melting rate, good heat
preservation performance, low consumption, low using cost, safety and reliability. It can be used for melting
and holding at same time.
|
SPECIFICATIONS FOR Lead Powder Rotary Metal Melting Furnace 2000kg |
|||
|
Burning System |
Burner type |
Oil burner |
1set |
|
Max consumption |
kg/hour |
35-45 |
|
|
Diesel Oil heat value |
kcal/kg |
9600 |
|
|
Melting cycle |
|
hours/cycle |
2 |
|
Working temperature |
|
degree celcius |
600-700 |
|
Max temperature |
|
degree celcius |
850 |
|
Furnace body |
Capacity |
kgs |
2000 kgs lead |
|
Overall size |
m |
2.7*2.1*2.3 |
|
|
Rotary speed |
circle/min |
1 circle per minute |
|
Structure Introduction
The lead powder rotary melting furnace body is comprised of refractory layer, heat preservation
layer and insulation layer. The furnace hearth is casted by high strength and unshaped refractory casting cement.
There is a pressure ring in the furnace to extend the flame's stay time in the furnace, improve the melting speed
and reduce energy consumption. The heat preservation layer and insulation layer are composed of ceramic fibers.
Therefore, the furnace body heat storage is small, temperature rise is fast, heat preservation is good, energy
consumption is low.
Burner of the lead powder rotary metal melting furnace: The burner fan, magnetic valve, igniter and flame monitor
constitute as a whole. Turn on the power supply, and the burner can be started.
Our Company
Our company supplies the oil fired or gas fired lead powder rotary melting furnaces, oil or gas fired zinc powder
rotary melting furnace, gas oir oil fired aluminum scrap melting furnaces, reveberatory aluminum melting furnace,
continuous aluminum melting furnae, aluminium melting furnace crucible melting furnace, aluminum liquid transfer
ladles, aluminum ladle preheater, electric aluminium melting furnace, electric aluminium holding furnace, gas fired
aluminum holding furnace, box type resistance furnace, etc.
Packing
|
Size |
2.7*2.1*2.3m |
|
Weight |
7ton gross weight |
|
Packaging Details |
The normal package is plywood. |

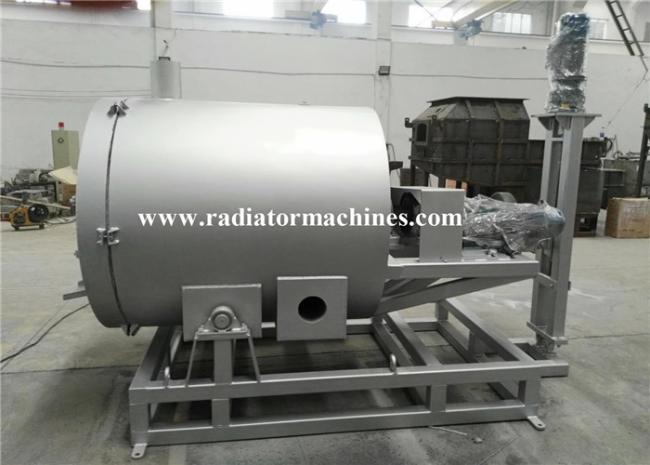

Metal melting furnaces in our workshop:
