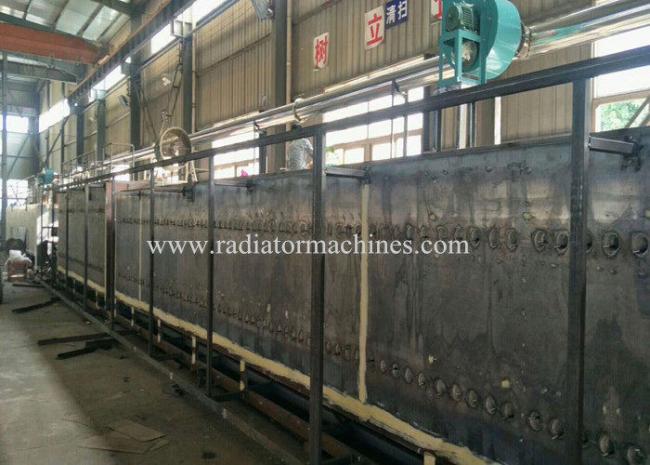

16M Aluminium Radiator Brazing Furnace Nitrogen Protective Atmosphere
16M Aluminium Radiator Brazing Furnace Nitrogen Protective Atmosphere
Application
The aluminium radiator brazing furnace works under the nitrogen protective atmosphere and employs non-erosive brazing material. The continuous
aluminium radiator brazing furnace is applied to brazing of aluminum intercooler, radiator, automobile air conditioning condenser,
evaporator, aluminum oil cooler, etc.
|
Model |
Rated heating power |
Temperature |
Working size (mm) |
Brazing oven effective length |
Total length |
||
|
Degreasing Oven |
Drying Oven |
Brazing Oven |
|||||
|
NB-450-200-6M |
Non |
50KW |
150KW |
Brazing temperature: 630°C;
Drying temperature: 250°C
Degreasing temperature: 180°C |
450×200 |
6m |
23.5m |
|
NB-600-200-6M |
Non |
60KW |
180KW |
600×200 |
6m |
23.5m |
|
|
NB-800-200-6M |
Non |
70KW |
210KW |
800×200 |
6m |
23.5m |
|
|
NB-1000-200-6M |
Non |
85KW |
245KW |
1000×200 |
6m |
23.5m |
|
|
NB-600-200-8M |
50KW |
70KW |
240KW |
600×200 |
8m |
37.7m |
|
|
NB-800-200-8M |
60KW |
85KW |
280KW |
800×200 |
8m |
37.7m |
|
|
NB-1000-200-8M |
76KW |
108KW |
330KW |
1000×200 |
8m |
37.7m |
|
|
NB-800-200-11M |
85KW |
120KW |
380KW |
800×200 |
11m |
48.4m |
|
|
NB-1000-200-11M |
108KW |
150KW |
450KW |
1000×200 |
11m |
48.4m |
|
|
NB-1200-200-11M |
120KW |
170KW |
520KW |
1200×200 |
11m |
48.4m |
|
|
NB-1200-200-16M |
150KW |
220KW |
760 KW |
1200×200 |
16m |
65.0m |
|
|
NB-800-220-8M |
70KW |
85KW |
280KW |
800×220 |
8m |
38.9m |
|
Note: The heating furnace (brazing furnace section of the heat treatment line) is 8m, 11m, 12or 16m long based on the
productivity of the line required by the customer.
Company Introduction
Our company mainly supplies the radiator making machines such as aluminum radiator fin machine, core builder, aluminum
radiator plastic tank crimpingmachine, air leak tester, header mold, plastic tank mold, aluminium radiator brazing furnace, etc.
