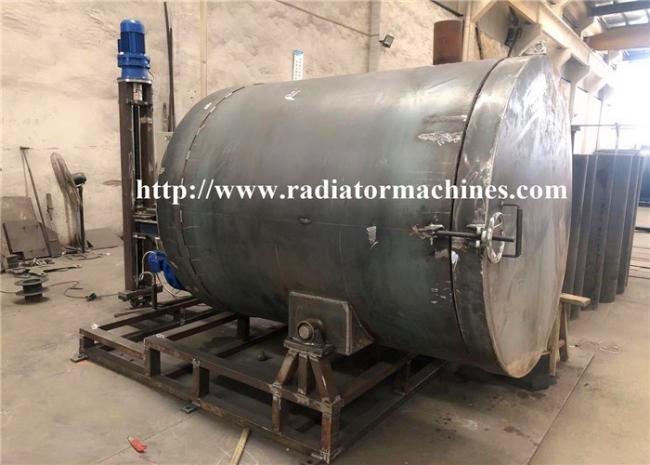

Zinc Powder Metal Melting Furnaces Rotary Type 1500 KG Diesel Oil Type

3.1 overall size: 3600(L)×2300(W)X1800(H)

3.2 max furnace temperature:1000℃

3.3 temperature rising speed: ～300℃/h, adjustable;

3.4 rotary speed: 10~12m/min；

3.5 max capacity: 1500Kg

3.6 fuel type: diesel oil; heat value: Qd=9600kcal/kg

3.7 max consumption rate: about 26KG/h;

3.8 max air consumption: 350m3/h;

3.9 fume volume: 280m3/hour;

3.10 burner type: oil burner, 1 set;

3.11 temperature zone: 1 zone;

3.12 temperature uniformity: ±30℃ (temperature of the effective heating zone measured at the holding stage)

3.13 furnace door: bearing manual type;

3.14 lining: 1st grade high-alumina bricks; porcelain fiber heat preservation layer.

3.15 fume removal: natural upward fume removal.
