Stainless Steel Stiffener Polyamide Flexible Printed Circuit Cable 0.5 Mm Gold Finger Pitch
Price:
Negotiable
MOQ:
500 pcs/ lot
Delivery Time:
12-15 working days afer sample approval
Brand:
Wenyi Electronics
Product Description

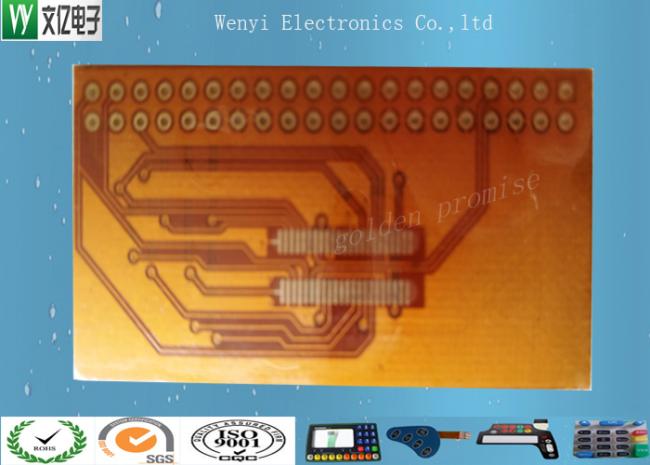

Stainless Steel Stiffener Polyamide Flexible Printed Circuit Cable 0.5 Mm Gold Finger Pitch
Item decription:
0.5 mm gold finger Pitch Stainlessness Steel stiffener ploymide double side FPC flexible printed circuit
Material: Polymide,
Copper : 1 OZ
Finger Pitch: 0.5mm
Stiffener: SUS Steel Stiffener
Thickness: 0.27mm -0.36mm.
Type: Double Side FPC
Business Terms:
MOQ : 500 pcs/ lot
Sample lead time: 8-12 working days
Mass production lead time: 10-14 working days , as per order Qty.
Our Advantage:
- Only focus in membrane switch, FPC and related items.
- Strong R&D capability
- Low cost and competitive price
- Quick delivery
- 100% computer test and inspection before shipment
- Capable to make 1-8 layers FPC
Application:
- *Medical Equipment
- * Telecommunications apparatus
- *Digital device and appliance
- * Household appliances
- * Security systems, POS machine payment service system.
- * High Precision PCB and light flexible PCB
Technical specification:
| Monthly output | 5000 square meters. |
| Material | Polymide, Polyster, PET,PT,Rolling,Electrolysis |
| File format | CAD file(POWERPCB,PROTEL,PADS2000,AUTOCAD,ORCAD, Gerber file |
| Solder resist (solder mask) | Laminated cover film,Liquid photosensitive prevent weld ink,PI oil film |
| Surface treatment | Hot Air Solder Leveling,Tinning ,Sink tin ,gold-plating ,Chemistry sink gold ,Anti-oxidation ,Sink copper ,Tin copper |
| Finished Thickness | 0.068-0.6mm |
| Circuit Layers | Single-sided/multi-layer(1-8 Layer) |
| Max thin wire/spacing | 2-3mil |
| Min Hole Diameter | 0.2mm |
| Max Outline | 500×350mm |
| Profiling Process | 0.1mm CNC punching accuracy 0.1 mm edge |
| Sample Leadtime | 8 to 10 Working Days |
| Mass Production Lead time | 8-12 working days since order issue |
