20000 30000 Liters 2 Axle Carbon Mild Steel Fuel Tanker Trailer

Price Negotiable
Price: Negotiable
MOQ: 1 units
Delivery Time: 30 Working Days
Brand: SUNSKY
Product Description



2 Axle Fuel Tanker Trailer Use carbon mild steel with spring suspension



SUNSKY fuel tanker trailers are designed to provide many different types of fuel through pumps and metering systems. We are the manufacturer which can supply the standard thickness and optional thicker tank floor to ensure your tank can still be use in many years. The tanks are available in carbon steel, aluminum or stainless steel. We also offer a pneumatic top safety railing system and a heavy-duty aluminum guardrail rear bumper to ensure your tank is safe and effective. Whether you prefer a square or round water tank - there are a variety of styles to choose from. China National Heavy Duty Trucks set the industry standard for fuel tank quality and safety, so you can rest assured that your fuel tank will work as hard as you do.

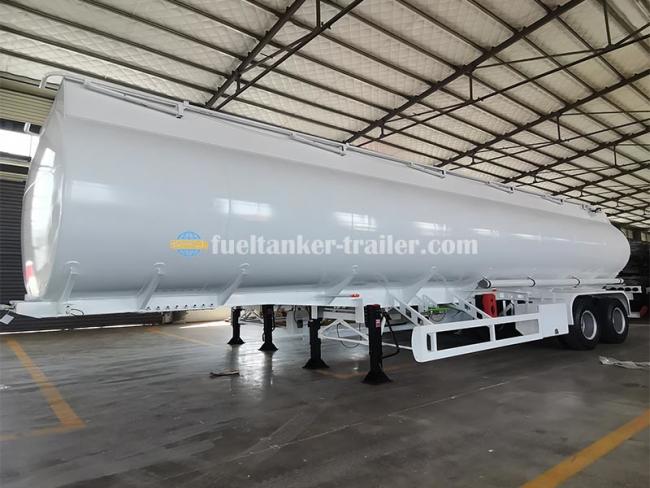

fuel tanker trailer



I. Why choose our fuel tanker trailer



1. The axle,tyre and other accessories use the well-known brand like Fuwa, Bpw, Jost, Triangle brand which supplied by the domestic and foreign professional manufacturers.

2. The tanker body is stronger.The fuel tanker trailers are made of high-tensile Q345B steel, 5 mm thickness for dish, 6 mm thickness for shell,

3. The capacity and compartments of fuel tanker tanker trailer can be designed as clients's requirements.

4. The main frame and tank body of fuel tanker trailers are designed by 3D-CAD, have a more reasonable structure.



II. Specification of fuel tanker trailer trailer



Style 2 Axle Fuel Tank Trailer
The thickness of shell&dish 5mm/ Q345B carbon mild steel
Compartment: optional
Dimension(L*W*H)mm: 10700*2500*3700
Payload(kgs): 20000 to 30000
Tare weight(kgs): 8500
Kingpin JOST 2” bolt-in
Landing gear JOST 19” C200T
Tire size 12R22.5 (9sets)
Rim size 9.00*22.5 (9sets)
Axle Fuwa brand-13ton
Leafs spring Fuwa steel suspension with 8pcs of leafs spring
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Manhole: Europe Standard C801A-560Φ500
Discharge and bottom valve Pneumatic 3”
Prime & Topcoat painting Zinc-rich & Polyurethane painting

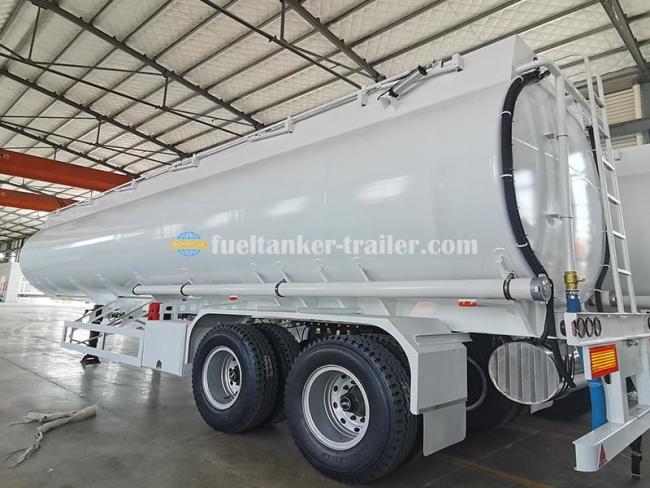

oil tanker trailer



III. Quality warranty



1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.

2. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment, ensure to meet your local road regulation.
