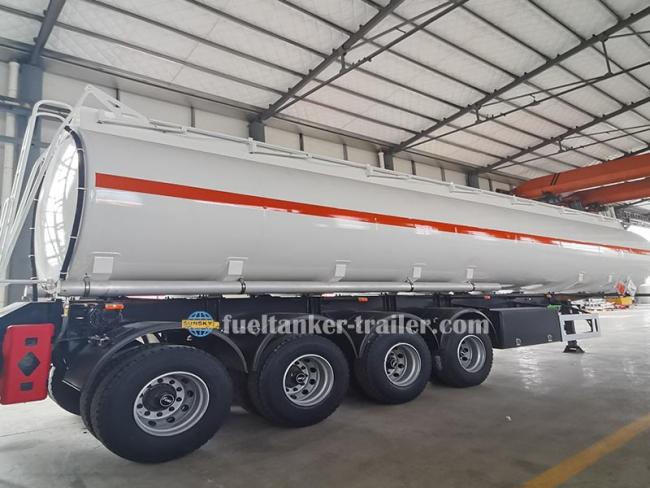

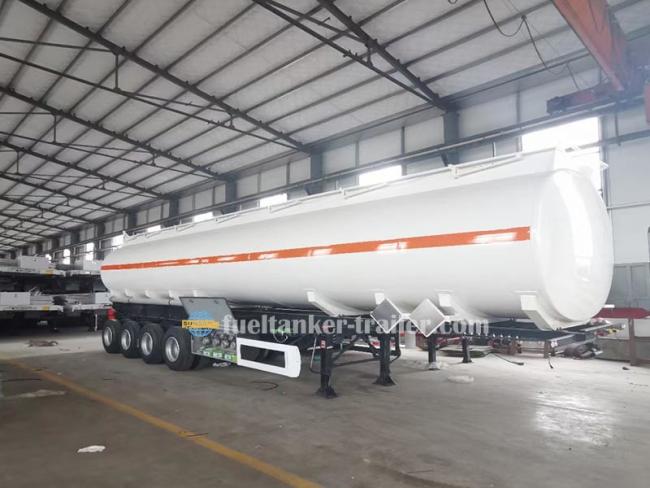

13T Q345B Carbon Steel Fuel Tanker Trailer With Spring Suspension
4 Axle 13 tons Fuel Tanker Trailer with spring suspension
4 axle fuel tanker trailer is a kind of semi-trailer use for carry fuel,diesel etc.Can also be designed to carry beer, water, milk, alcohol etc. The gravity center of fuel tanker trailer is designed as low as possible to minimize the risks of overturns . More suitable use in rush roads. More safe for fuel transport.Special design and produce for West African countries.As per the TOTAL oil requirements.
I. Advantages
1. Follow the ADR standard to design and produce, use for TOTAL Oil transportation.
2. Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.
3. The gravity center of fuel tanker trailer is designed as low as possible to minimize the risks of overturns. More suitable use in rush roads. More safe for fuel transport.
4. The capacity of fuel tanker tanker trailer can be made from 30000 liters to 50000 liters, compartments from 1 to 8. To meet the clients' different requirements.
5. Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.
II. Specification
| Dimensions(mm) | 12300*2500*3700 |
| Load capacity(kgs) | 45000 |
| Compartment Number | 4 (15000L/7500L/7500L/15000L) |
| Effective Cubage | 45,000 liters |
| Axle | 13 tons,4 axles |
| Suspension | 3 axles with spring and 1 axles with airbag and lifting |
| Type of landing legs | 19" |
| King pin | 3.5“ bolt-in |
| Tire | 315/80R22.5 |
| Rim | 9.00*22.5 |
| Braking system | Two of Wabco Re-6 relay vavle,4 units of MBA T30/30 spring chamber 4S/2M ABS system |
| Manhole | Φ500 |
| Discharge valve | 4pcs of 3” |
| Discharge system | pneumatic operating |
| Discharge horse | 2x6m |
| Bottom vavle | 4 pcs |
III. Quality guarantee
1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.
2. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment, ensure to meet your local road regulation.
