3D CAD 2 Axle Fuel Tanker Trailer 20000L 30000L With Bogie Suspension

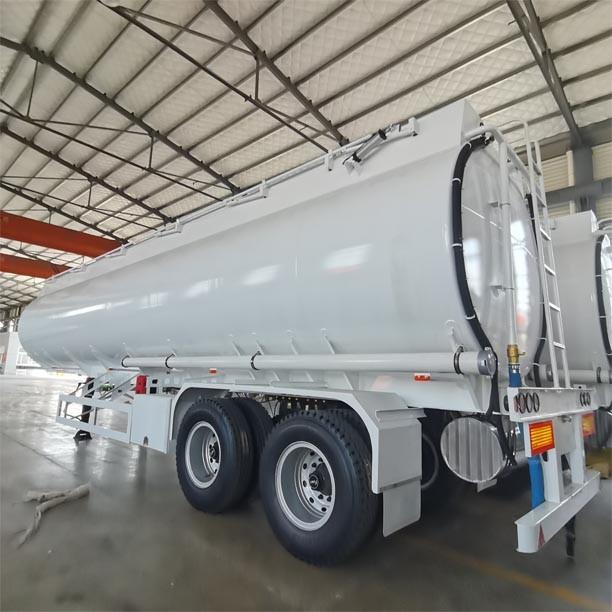

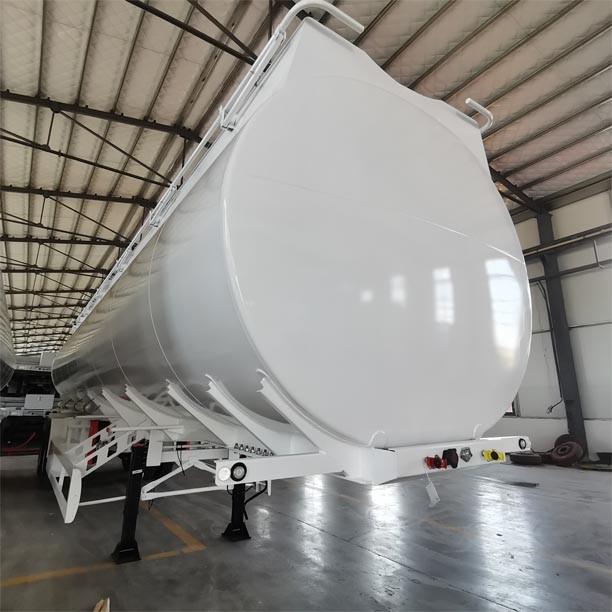

2 Axle Fuel Tanker Trailer With Bogie Suspension
This model of fuel tanker trailer is made of carbon steel. The Tanker Trailer can be used for carry alcohol,gasoline, diesel oil, kerosene, fuel oil, etc
I. Features of fuel tanker trailer
1. The axle,tyre and other accessories use the well-known brand like Fuwa, Bpw, Jost, Triangle brand which supplied by the domestic and foreign professional manufacturers.
2. The tanker body is stronger.The fuel tanker trailers are made of high-tensile Q345B steel, 5 mm thickness for dish, 6 mm thickness for shell,
3. The capacity and compartments of fuel tanker tanker trailer can be designed as clients's requirements.
4. The main frame and tank body of fuel tanker trailers are designed by 3D-CAD, have a more reasonable structure.
II. Specification of fuel tanker trailer
| Style | 2 Axle Fuel Tank Trailer |
| The thickness of shell&dish | 5mm/ Q345B carbon mild steel |
| Compartment: | optional |
| Dimension(L*W*H)mm: | 10700*2500*3700 |
| Payload(kgs): | 20000 to 30000 |
| Tare weight(kgs): | 8500 |
| Kingpin | JOST 2” bolt-in |
| Landing gear | JOST 19” C200T |
| Tire size | 12R22.5 (9sets) |
| Rim size | 9.00*22.5 (9sets) |
| Axle | Fuwa brand-13ton |
| Leafs spring | Fuwa steel suspension with 8pcs of leafs spring |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Manhole: | Europe Standard C801A-560Φ500 |
| Discharge and bottom valve | Pneumatic 3” |
| Prime & Topcoat painting | Zinc-rich & Polyurethane painting |
III. Quality warranty
1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.
2. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment, ensure to meet your local road regulation.
