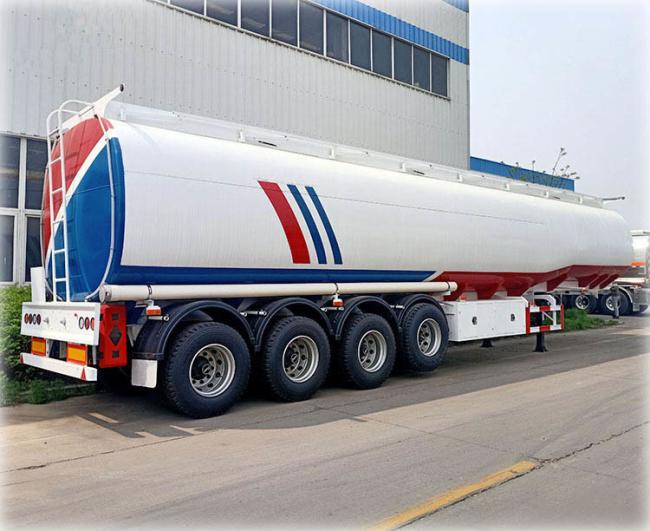

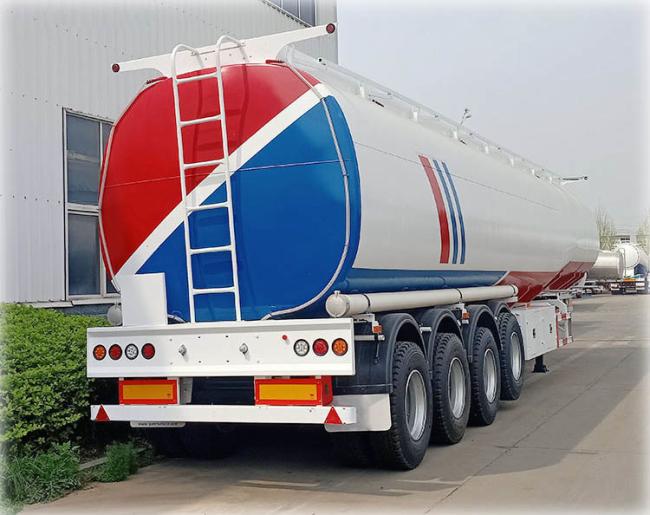

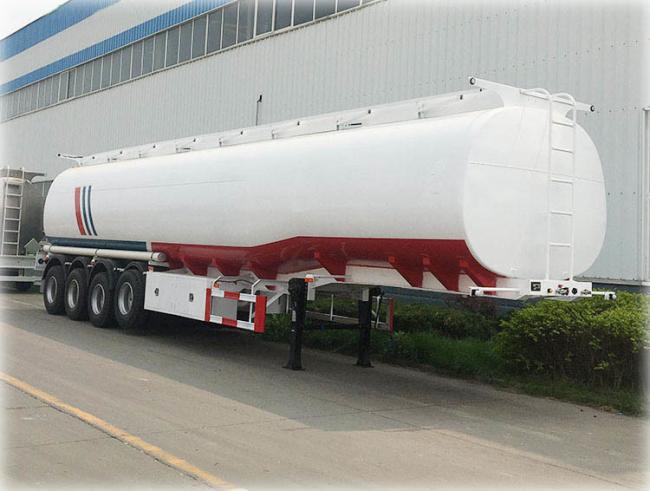

4 Axle 50CBM Carbon Steel Q345B Fuel Tanker Trailer
4 Axle 50CBM Oil Tank Fuel Tanker Trailer for Sale
I. Application
Use for carry fuel,oil,gasoline,petroleum,water,edible oil.
II. Advantages
1. Follow the ADR standard to design and produce, popular in Burkina Faso etc. Western African countires.
2. Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.
3. The gravity center of fuel tanker trailer is designed as low as possible to minimize the risks of overturns. More suitable use in rush roads. More safe for fuel transport.
4. Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.
5. Optional for a bottom loading fuel tanker trailer, can install the API adaptor valves, anti-overfill and vapor recovery system as your request.
III. Specification
| Type: | 4 axle fuel tanker trailer |
| Tanker Body | |
| Shape: | Elliptical, circular type shape |
| Dimension: | 9500-13000*2500*3900mm ( can be customized ) |
| Payload: | 28 ~ 70tons |
| Volume: | 28,000 ~ 70,000L |
| Compartments | 1-9 |
| Tanker body thickness: | 5mm or 6mm/Carbon steel plate/ Aluminum alloy |
| Manhole: | Diameter 500mm, 1-9 pieces with vent valve |
| Discharge vale: | 4" API Adaptor Valve or 3" Spherical Valve |
| Bottom valve: | 3", 4" Contral by Pneumatic Block |
| Handrail: | Manual, Pneumatic |
| Bottom Loading (Optional): | Overfilling, Recovery system |
| Cat Walk: | Aluminum |
| Discharging hose: | Rubber tube, 2 pieces, 6 m each |
| Chassis | |
| Main Beam: | Q345 Carbon steel material |
| Axles: | 2 - 4 pcs 13 - 20tons BPW or Fuwa Axles |
| Suspension(optional): | Mechanical, Air, Bogie |
| Landing gear: | JOST E100 |
| Brake system: | 6pcs T30/30 Brake Chambers, WABCO relay valve |
| Tire: | 12R22.5, 315/80R22.5, 12.00R24 Triangle Brand |
| King Pin: | JOST 2" or 3.5 " Bolting Type |
| Any parts fitted could according to clients request, contact us to get more. | |
IV. Quality guarantee of fuel tanker trailer
1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.
2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment, ensure to meet your local road regulation.
