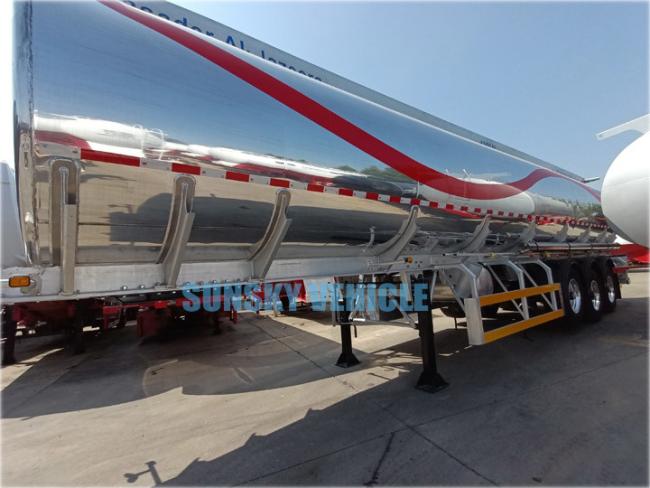

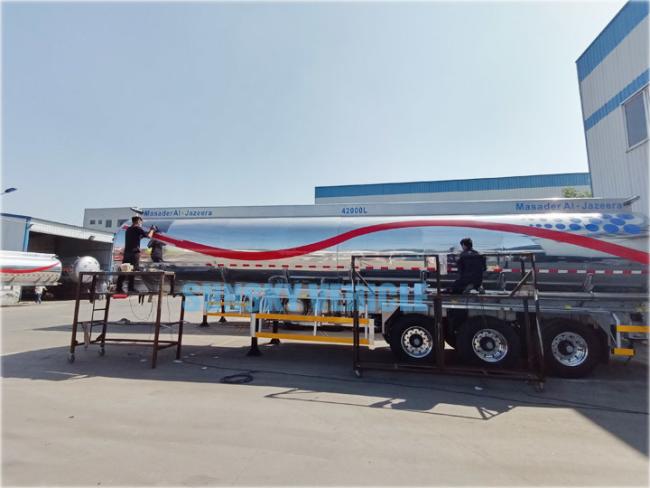

42 CBM Aluminum Alloy Fuel Tanker Trailer With 6 Compartments
42 CBM Aluminum Alloy Fuel Tanker Trailer With 6 Compartments
Aluminum Alloy Tanker trailer is suitable for carrying food products like cooking oil and crude oil else.This type capacity is 42,000L, divided into 6 compartments, equipped with Jost legs, BPW axle, air suspension with lifting.
Advantages of SUNSKY aluminum alloy tanker trailer
1. Advanced TIG welding robot, 100% x-ray inspection pass rate
2. Bulk heads and anti-surfers with rise structure,high strength.
3. European standard loading and unloading system.safe and environmental friendly.
4. Tank section with international standard small arc,improve tank strength more uniform intensity.
Specification
| Item | 42,000L Aluminum Alloy Fuel Tanker Trailer |
| The thickness of shell& dish | 5mm/ Aluminum alloy |
| Compartment: | 6 (optional) |
| Dimension(L*W*H)mm: | 11500*2500*3700 |
| Payload(kgs): | 40000 |
| Tare weight(kgs): | 7200 |
| Kingpin | JOST 2” bolt-in |
| Landing gear | JOST 19” C200T |
| Tire size | 12R22.5 (13sets) |
| Rim size | 9.00*22.5 (13sets) |
| Axle | BPW brand-13 ton |
| Leafs spring | Airbag suspension with lifting(Spring suspension optional) |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Manhole: | Europe Standard C801A-560Φ500 |
| Discharge and bottom valve | Pneumatic 3” |
| Bottom loading | With Vapor Recovery & Anti-Overfill system |
| Painting | Optional |
Images
Quality guarantee of 3 axle tanker trailer
1. Two year free warranty terms for the tanker trailers
2. Spare parts support service
3. Ensure lifespan more than 10 years.
4. Custom-built services, we can produce the semi-trailers as your requirements.
