RS-903 12.5/15mm single side tape radial capacitor/LED/transistor lead cutting forming machine

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Brand: RKENS

Product Description

RS-903 12.5/15mm single side tape radial capacitor/LED/transistor lead cutting forming machine

Intro:

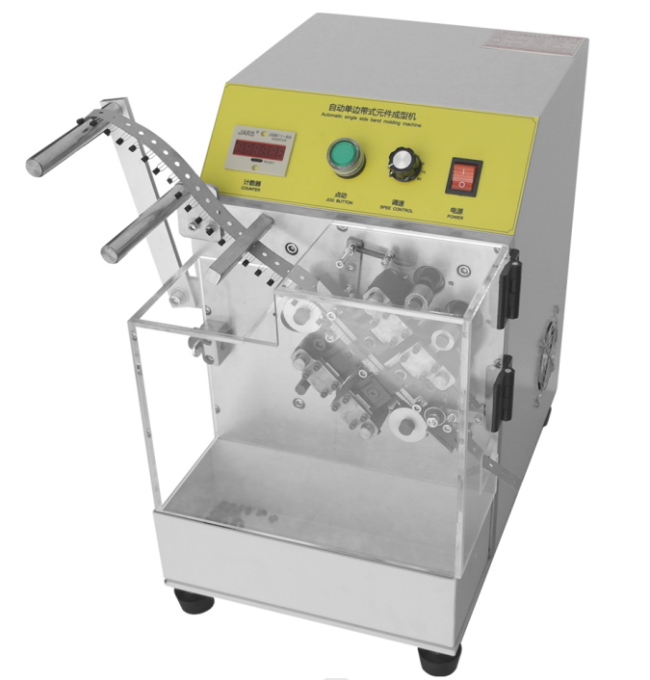

RS-903 is an automatic radial lead forming machine.It can work single-side taped components, like taped LED, capacitor, varistor, CBB, etc. It can cut and form radial components legs at same time. It can make 90 degrees bending, kinking, cut legs to different length, etc. 12.5MM and 15MM tape hole distance components can not share same machine. Its speed can reach up to 3300-3600pcs/hour.

Suitable:

For taped radial components, such as taped capacitor,

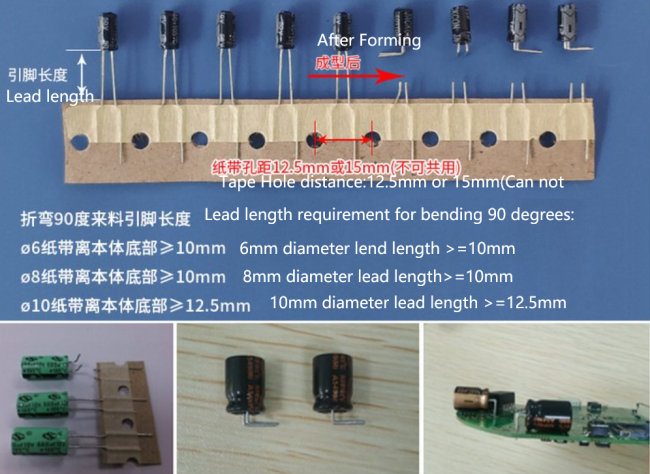

Works for 12.5MM or 15MM tape hole distance. Note: 12.5MM and 15MM pitch can not share same machine.

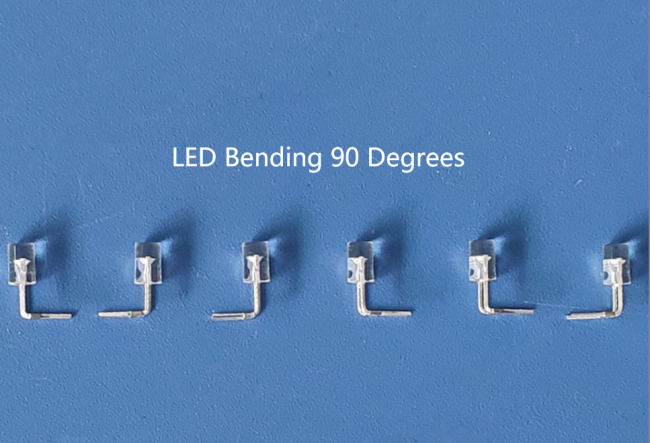

Bending 90 degrees, front-rear side kink, Cut legs to different length,etc

Parameters:

Name	Taped Capacitor LED Lead Cutting forming machine
Model	RS-903
Power Supply	220V/110V 50HZ/60HZ
Efficiency	3300-3600 pcs/h
Suitable for	Single side taped radial componenets, cutting or forming lead. Tape hole distance: 12.5MM or 15MM(can not be shared)
Usage	Cut lead to different length, K shape, bend lead to 90 degrees
