1200KN 600L Mud Pump Mini HDD Horizontal Directional Drilling Machine

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: Negotiable

Brand: STETON

Product Description

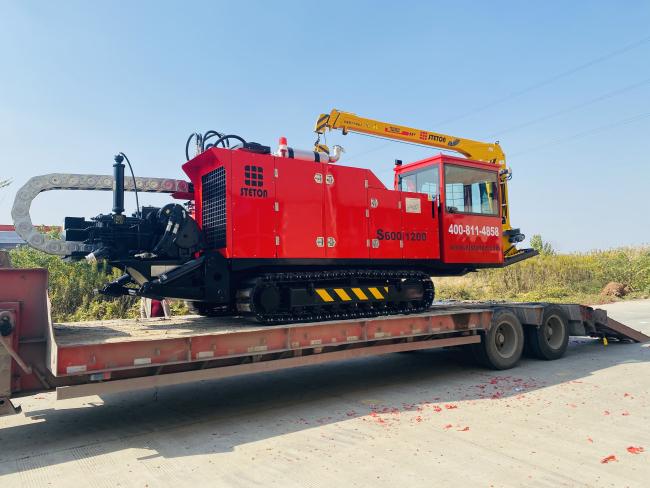

Horizontal Directional Drilling Machine - S600/1200 For narrow space Pipe laying

I KEY point:

Powerful; MINI Body, but have powerfull force, good at woking in the city

Fast travelling and tracking speed;

Can do the big piple line.

II Features:

Equipped with Cummins 194kw engine, large power, stable performance, lower fuel consumption, lower noise, more suitable working in city area.
Power head thrust and rotation adopts POCLAN motor, with large torsion, stable performance. Rotation have two speed , drilling faster and more torque; Thrust have 3 speed, let the work finished more faster. Thrust and rotation system both use hydraulic control system.
American style surface, looks so powerful.
Simple electric circuit design, low failure rate, convenient maintenance.
Equipped with φ89×3000mm drill rods moderate machine size adapts to narrow and small working area and high efficient construction as well.
Mud flow control system, can depends customer project save water.
Rod auto loading system , Auto anchoring system and push and pulling force increase to 70ton can be choose separate.

III Specifications:

Engine Power	KW	194/2200
Max Thrust force	KN	600/1200
Max Pullback force	KN	600/1200
Max Torque	N.M	25000
Max Rotary speed	Rpm	138
Max carriage speed	m/min	42
Max Mud pump flow	L/min	600
Max Mud pressure	Mpa	8±0.5
Main machine size	mm	8100x2240x2260
Weight	T	15
Diameter of drilling rod	mm	Φ89
Length of drilling rod	m	3
Max diameter of pullback pipe	mm	φ150 – φ1000
Max construction length	m	900
Incidence Angle	°	11～22
Climbing angle	°	14
