24h Monitoring LPG Gas Leak Detector EX Combustible Flammable Gas Detector For Industrial
LPG Gas Leak Detector 24h Monitoring EX Combustible Flammable Gas Detector for Industrial Use
YT-95H-WH / YT-95H-WH-A series is a cost effective explosion proof transmitter for the detection of flammable gases and toxic gases. 3 wires 4-20mA analog output with relays and RS485 MODBUS protocol, makes it compatible with most control systems. The third party products such as horns, warning lights and fans are compatible with our components and integrated by us into the system. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.
LPG gas leak detector advantages:
- Online monitoring with sound/light alarm(Optional)
24h continuously monitoring, data will real-time display. High/low alarm with sound and light, sound >90dB, alarm point is settable.
- Non-contacted control the device
With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification.
- Diversified output signals
4-20mA current signal output, compatible with different kinds of controllers.
RS485 MODBUS signal output.
Relay signal output, to turn on/off ventilator, generators or other external devices.
- Variety of installation methods
4-20mA current signal output, compatible with different kinds of controllers.RS485 MODBUS signal output.Relay signal output, to turn on/off ventilator, generators or other external devices.
- Data transmission
Can be installed with PC software, to transmit the data to computer, workers can remote monitor the data. Wireless data transmission including Lora, 4G (Optional)
- High quality case
Die-cast aluminum case, strong and durable; Stainless steel case is optional, meeting the demand of different situations.
IP65 protection degree,water-proof, dust-proof, explosion-proof
LPG gas leak detector specification
|
Gas detected |
LPG, combustible gas, flammable gas |
||
|
Detection principle |
Infrared Ray/Catalytic combustion, sensor and ic are imported |
||
|
Install method |
Wall-mounted, piping type, flow-type (according to the detected environment) |
||
|
Measure range |
0-100%LEL, 0-5000ppm, 0-50%VOL, 0-100%VOL(Measure range is optional) |
||
|
Resolution |
1%LEL, 1ppm, 0.01%VOL |
||
|
Precision |
≤± 1-2% FS |
||
|
Signal output |
4-20mA, 0-5V, RS485, relay(optional) |
||
|
Response time |
≤10S |
Recovery time |
≤10S |
|
Repeatability |
≤±1% |
Linearity error |
≤±1% |
|
Zero shift |
≤±1%(FS/year) |
Display |
High-light nixie tube display |
|
Connection mode |
G1/2 external thread explosion-proof flexible pipe |
Unit |
%VOL |
|
Temperature |
-20 to 50°C |
Humidity |
0-95%RH |
|
Explosion-proof |
II 2G Ex db IIC T6 Gb IP65 |
Degree of protection |
IP65 |
|
Alarm |
Sound, light |
Operating time |
24H |
|
Dimensions |
180*150*90mm |
Weight |
≤2kg |
Applications for LPG gas leak detector
Natural gas factory, Garbage station, Wastewater treatment, Air quality, Chemical industry, food factory, software engineering, environmental protection, animal husbandry, mining, power engineering, etc.
At present, we have cooperated with Coca-Cola Company, Nestle, State Grid Administration, Samsung, HuaWei, etc.

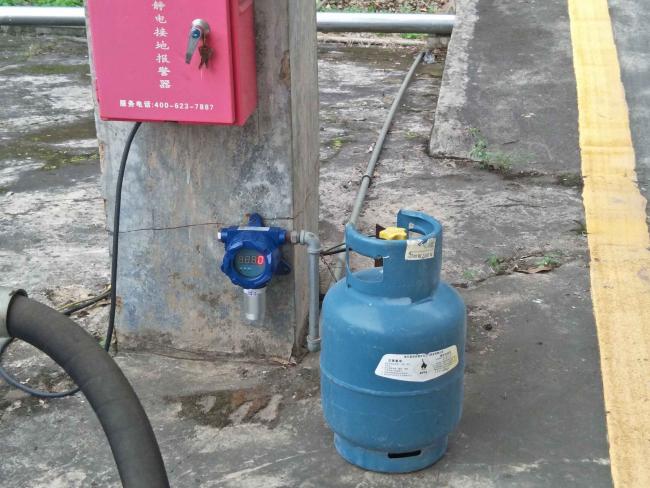

Installation for LPG gas leak detector
