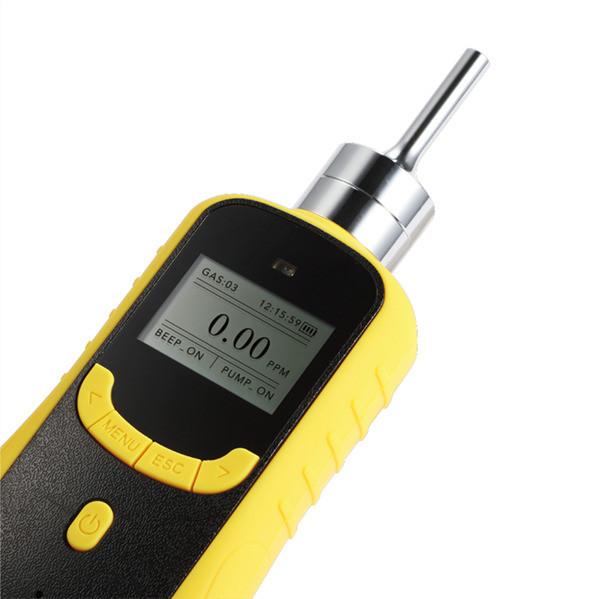

ETO C2H4O Single Gas Detector Sound Light Vibration Alarm For Hospital 0-100ppm
ETO C2H4O Gas Residue And Leak Detector Used In Hospital 0-100ppm
Ethylene oxide is widly used in hospital for disinfection. At the same time it is toxic, flammable and explosive gas which is dangrous. The ETO concentration for indoor air should be lower than 2mg/m³(1ppm), or it will be harmful to human body.
Specifications
| Gas Detected | C2H4O | ||
| Detection principle | Electrochemistry | ||
| Sampling Method | Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. | ||
| Measure Range | 0-10ppm, 0-20ppm, 0-50ppm, 100ppm | ||
| Resolution |
1ppm, 0.1ppm, 0.01ppm |
||
| Precision | ≤± 2% F.S. | ||
| Signal Output |
High-speed data transmission by USB, available for data downloading and |
||
| Response Time | ≤10S | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃~50℃ | Humidity | 0-95%RH |
| Explosion-Proof | ExiaⅡCT4 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration | Operating time | 100h(pump off) |
| Dimensions | 205*75*32mm | Weight | 300g |
Product Advantage:
1. First class brand sensor original improted from UK, USA, Germany, Japan and etc, high precision and fast response
2. (Optional)High speed data transmission by USB, which can connect to PC to transfer data
3. LCD dot matrix display, the gas type, unit, concentration.
4. Support Chinese and English operation, easy to shift.
5. The gas concentration unit PPM and mg/m³ can be shift quickly.
6. Built-in micro sampling pump, 10 grades of suction are available.
7. Explosion-proof certification, explosion-proof frade:Exia IIC t4 Ga.
