10T DropsideTruck Mounted Telescopic Crane With Hydraulic Straight Arm
10T dropside Truck Mounted with hydraulic 10ton straight arm XCMG SANY Crane
Product Description
- Crane Brand of truck mounted straight arm crane: XCMG, SANY PALFINGER, Other Chinese Brand
- Heavy Duty Cargo box.
- H Shape Hydraulic front & Rear Leg for safety.
- Folded Arm & Telescopic Straight Arm Crane for option.
- Crane capacity of truck mounted straight arm crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
- 14ton,16ton,20ton,25ton
Product Specification of truck mounted straight arm crane
| Chassis parameters | Unit | Dongfeng 6*4 210hp Truck with Crane |
| Vehicle size | (mm) | 10200×2500×3120 |
| A/D angle | 30/14 | |
| Total mass | (Kg) | 24600 |
| Curb weight | (Kg) | 9405 |
| Chassis model | DFS1251GLJ5 | |
| Wheels | 3 | |
| Wheelbase | mm | 4350+1300 |
| Wheel loading | kg | 6990/18000 (double axles ) |
| Steel spring NO. | pc | 9/13 |
| Tyre NO. | pcs | 10+1 |
| Tyre size | 10.00-20 | |
| Front tread | mm | 1940 |
| Rear traad | mm | 1860/1860 |
| Engine | B210 33,cummins engine | |
| Engine horsepower | HP | 210 |
| Engine power | KW | 155 |
| Engine displacement | ML | 5900 |
| Engine stanrdard | Water cooled,inline,Euro III, | |
| Cylinder | pcs | 6 |
|
· • Crane model:SQ10ZA3 · • Max lifting mass: 10000 kg · • Maximum lifting moment : 15120 N.m · • Slewing · • Swing speed :2r/min · • 4 sessions · • Rotary range :+ and -360 ° · • Crane Length :3.9-9.23m · • H type legs · • The maximum operating radius :9 m · • Across from :2-5 m · • Crane Out speed :5.33/17 m / s · • Hydraulic system pressure :17.5MPa · • Fuel tank capacity :110 L · • From the arm speed :76/13° / s · • Crane weight: 1900 kg · • Maximum lifting height :10.5 m
|
||

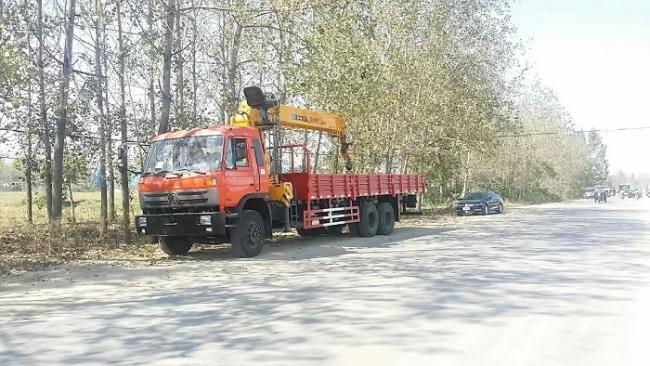

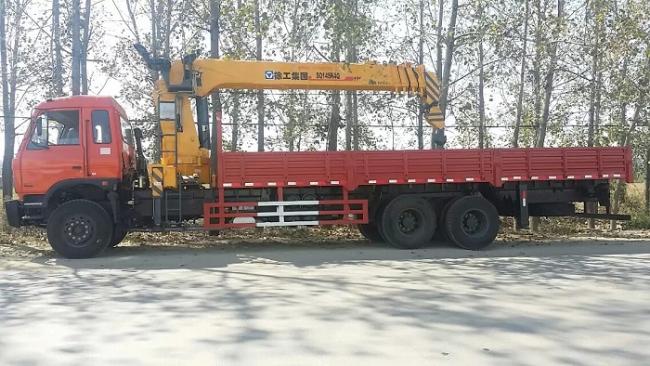

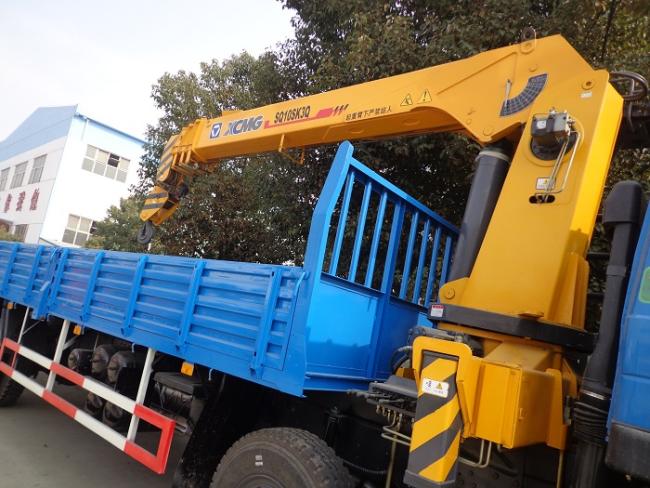

Product Photos
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of truck mounted straight arm crane I can order from your company?
A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied truck mounted straight arm crane to any overseas companies?
A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
