JAC 152HP 4 Ton Road Wrecker Tow Truck Recovery Flatebed Truck Euro 5 Emission Standard
JAC 152HP Wrecker Towing Truck Accident Recovery Truck
Product Description
1) Purpose of 4ton towing recovery truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2) Optional brand of 3ton towing recovery truck:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3) Spare parts of 3ton towing recovery truck:
Italy brand multi-way valve and balance valve;
Gernamy Roxroth technology hydraulic cylinder and joint;
imported sealing element;
strengthed checked plate
4) Capacity range of towing recovery truck:3ton,4ton,5ton,6ton,8ton,12ton,16ton,20ton,25ton,31ton,40ton,50ton
| JAC 150HP Wrecker Tow Truck | |
| Item No. | Parameters |
| Overall Dimension | 7430x2350x2370 mm |
| Driving ModelL | LHD |
| Cabin | 2~3 persons |
| Gross Vehicle Weight | 8210 kg |
| Curb Weight | 5030 kg |
| Loading Weight | 3000 Kg |
| Wheel Base | 3815 mm |
| Front/rear Hang | 1155/1960mm |
| Approach/Departure Angle | 20/13 degree |
| Front Axle | 2950 kg |
| Rear Axle | 5260 kg |
| Engine | ISUZU |
| Engine horsepower | 152HP EURO V |
| Displacement | 2892mL (Diesel) |
| Max Driving Speed | 90 km/h |
| Tire | 7.50R16( 7 pieces) |
| Body Material | Q235A carbon steel |
| Lifting Weight | 4000kg |
| Loading Plate Dimensions | 5600*2330mm |
| Hydraulic tailgate | 1200mm |
| Steel Rope Length | 25m |
| Winch Speed | 5m/min |
| Towing Weight | 4000kg |
| Wheel Lift Max. Length | 1640mm |
| Wheel Lift Extension | 1340mm |
| Tool Box no. | 1 |
| Auxiliary wheel no. | 2 |
| Working Light | 2 |
| Bandage | 4 set |
| “L” bracket no. | 1 pair |
| LOGO | Company Logo or any advertisement can be printed on the carriage body according to the customer's design. |

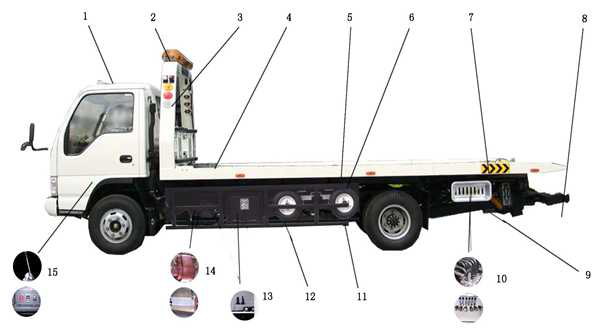

Structure drawing
| Item No. | Name |
| 1 | chassis |
| 2 | Warning lamp |
| 3 | Single lamp(white-front clearance lamp;red-rear clearance lamp |
| 4 | Winch and steel rope |
| 5 | Loading plate |
| 6 | Side signal lamp |
| 7 | Chain hook |
| 8 | Wheel lift |
| 9 | “L” bracket |
| 10 | Operation and hydraulic system |
| 11 | Auxiliary wheel |
| 12 | Side guard rail |
| 13 | Tool box and accessories |
| 14 | PTO and oil pump |
| 15 | Witch and operation handle of PTO |
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of towing recovery truck I can order from your company?
A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied towing recovery truck to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
