ISUZU 4*2 Road Road Washing Truck , Cleaning Tank Truck With 4cbm Water 5cbm Dust
ISUZU Road Washing&Sweeper Truck (4cbm water, 5cbm dust)
Product Description
1. Purpose: Sweeper truck can be widely used in main city road,airport road,residential area road, park,terminal, square, cement factory, power plant and etc.
2. Main parts: Stainless steel dust tank and water tank, Germany hydraulic oil pump and magnetic valve, French Schneider eletronic control switch, auxiliary engine, suction panel, sprinkler system, sweeping brush.
3. Feature: On the basis of one-key control technology, the manual throttle control system of the auxiliary engine is added, which can independently adjust the throttle size according to the road condition, effectively enhancing the cleaning effect and reducing fuel consumption.
Product Specification
| General Technical Parameters | |||||
| Overall Dimension | 7160X2250X2750 (mm) | ||||
| Gross Vehicle Weight | 7300(Kg) | ||||
| Curb Weight | 2110(Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | ISUZU | ||||
| Drive model | 4*2 | ||||
| Cabin | Single Row, LHD, with air condition. | ||||
| Number of Passengers | 2 | ||||
| Engine | Model | ISUZU 4KH1-TCG4O/120HP, 4-stroke direct injection , 4-cylinder in-line, turbocharged intercooled, with ABS. | |||
| Power | 88KW/120HP | ||||
| Emission standard | EUROⅣ | ||||
| Displacement | 2999(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | ISUZU MSB, 5Forwards & 1Reverse, manual operation, with power steering. | ||||
| Brake System | Oil break | ||||
| Wheel Base | 3815mm | ||||
| Front/Rear Axle Loading | 2500/4800(Kg) | ||||
| Approach/Departure Angle | 24/14(°) | ||||
| Overhang | Mechanical Suspension, 8/6+5 | ||||
| Tire | 7.00R16 Steel wire tyre, 6pc with 1 spare tire | ||||
| Sweeping Speed | 3-20 km/h | ||||
| Upperstructure Specification | |||||
| Tank | Water Tank | Material | Stainless steel 304 | ||
| Volume | 4(cbm) | ||||
| Dust Tank | Material | Stainless steel 304 | |||
| Volume | 5(cbm) | ||||
| Auxiliary Engine | Model | Cummins | |||
| Power | 140HP/103KW | ||||
| Maximum sweep width | 3.5m | ||||
| Maximum cleaning capacity | 60000m³/h | ||||
| Standard Configuration | 1. Equipped with 1 sweeping brush on each side, and middle suction nozzle; | ||||
| 2. Equipped with Sanyo Motor; | |||||
| 3. Equipped with German imported high pressure water pump(front flush, side sprinkler, middle sprinkler, rear sprayer, water gun, self-cleaning device in dust tank); | |||||
| 4. Equipped with universal high pressure roadside cleaning, and front flush with low pressure pump; | |||||
| 5. Equipped with stainless steel high pressure pipeline, Schneider control switch, and American sensor; | |||||
| 6. Equipped with anti-overflow or low water level alarm device in both water and dust tanks, rear LED arrow lights; | |||||
| 7. Equipped with indoor monitor in reverse and wash state; | |||||
| 8. Equipped with 18 meters high pressure rinsing reel, etc. | |||||
| 9. User's operation manual 1 set. | |||||
| Optional Configuration | Snow shovel, foggy gun, aerial work platform, color is optional, etc. | ||||

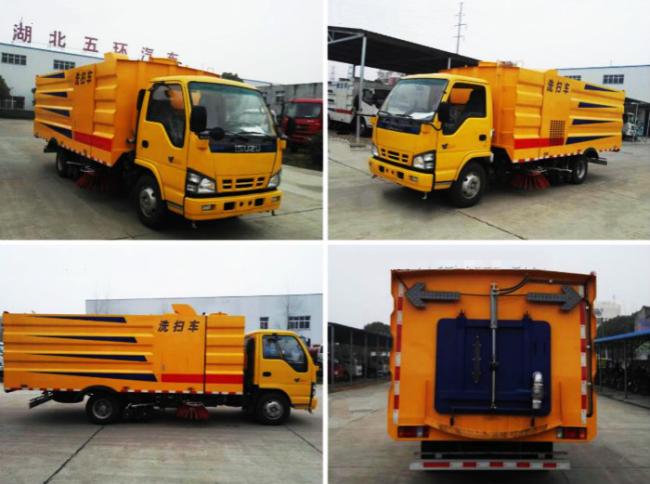

Product Show

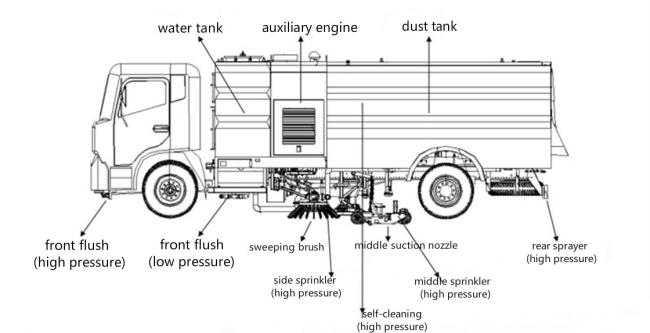

Main Structure

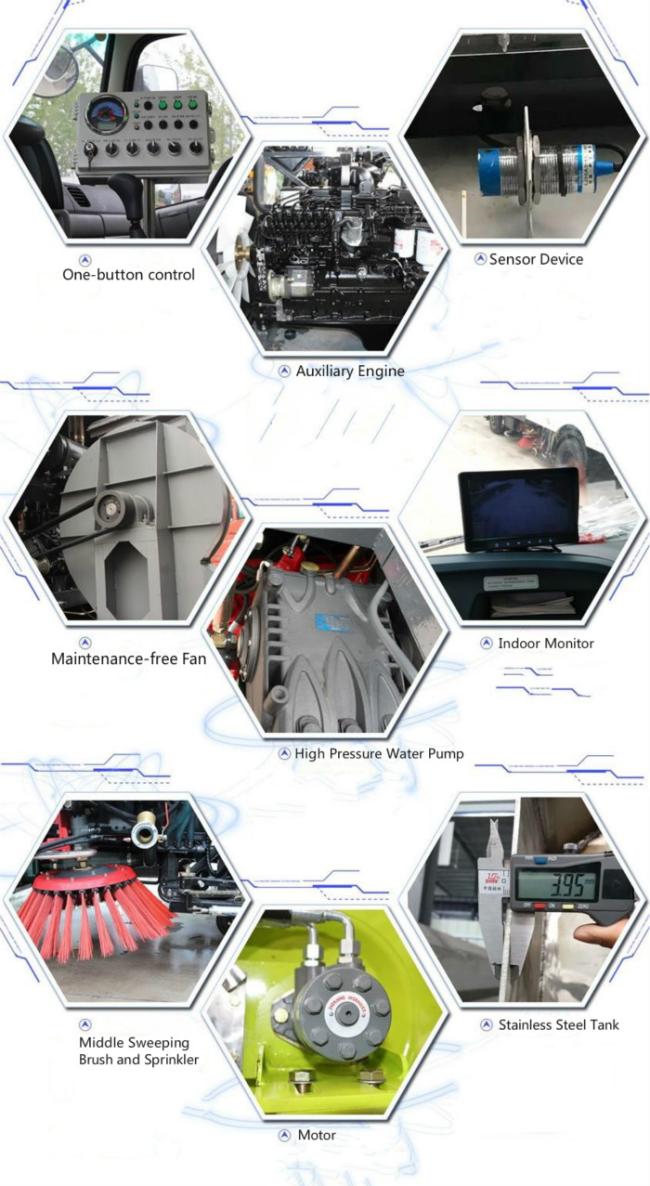

Main Parts

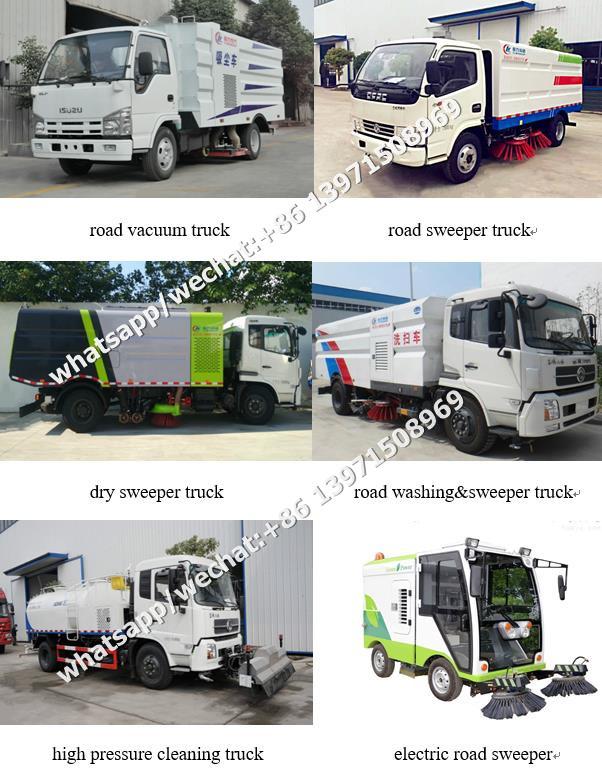

Related Road Cleaning Truck
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
