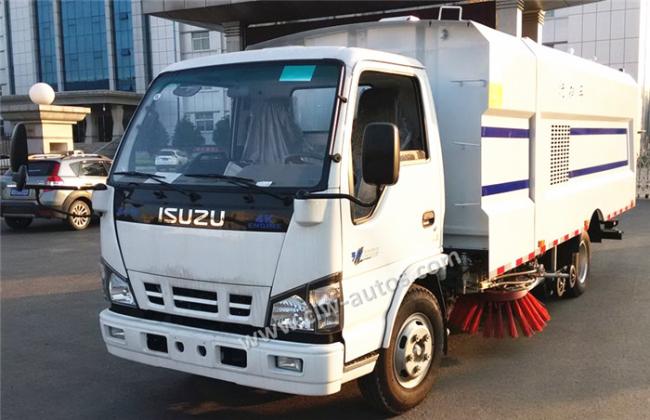

ISUZU 115HP LHD Customized Street Sweeper Vacuum Truck With High Pressure Water Spray
ISUZU 9m3 Road Sweeper and Washing Truck Stainless Steel for Street Cleaning
Description:
1. Main parts: stainless garbage bin, water tank, Italy hydraulic oil pump, germany magnetic valve, french Schneider eletronic control unit, auxiliary engine, suction panel, sprinkler system, brush.

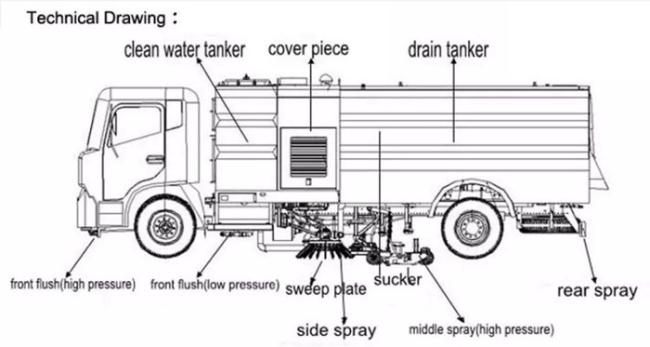

2. Struture of sweeper truck: two sweeping brushes in middle+wide suction nozzle and high pressure sprinker nozzles in middle+high pressure sprinkler nozzle at left and right side".
| Dimension(mm) | 7160×2250×2750 | |
| Manufacture | CLW GROUP | |
| Cab | Single | |
| Engine | ||
| Fuel | diesel | |
| Quantity of cylinder | 4 | |
| Horse Power | 115hp | |
| Air Displacement(ml) | 4000 | |
| Emission | EURO III/IV/V | |
| Driving Type | 4x2 | |
| Steering Wheel | left hand driving | |
| Gear-box | 5 | |
| Brake Type | Oil | |
| Quantity of Axle | 2 | |
| Wheel Base(mm) | 3815 | |
| Tyre | 7.00R16 | |
| Sweeping Width (m) | 3.2 | |
| Water Tank Volume(L) | 4000 | |
| Garbage Tank Volume(L) | 5000 | |
| Working Speed(km/h) | 3~20 | |
| Maximum Working Area(m2/h) | 6000 | |
| Sweeping Efficiency | ≥95% | |
| Working Condition |
1,Relative humidity: 80% |
|
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
