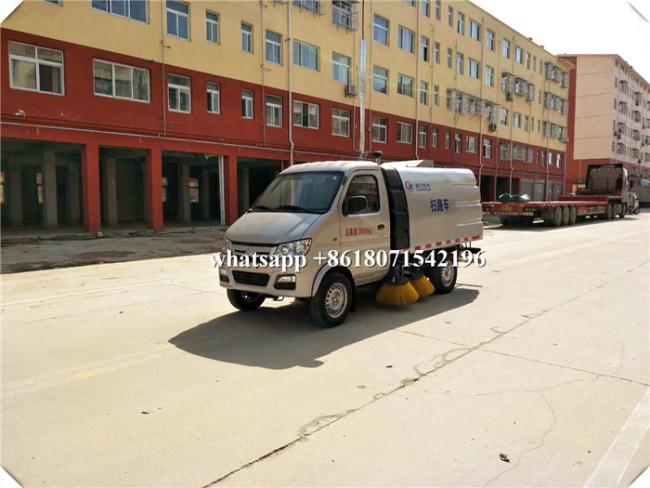

2CBM Mini Street Sweeper Truck , Street Washing Truck Stainless Steel 304 Material
Small Sweeper 2CBM Mini Changan Truck Mounted Street Sweeping Vacuum Road Sweeper
Product Description
This equipment is made from our company according to many years of road maintenance construction experience, and combined with the actual needs of customers.It is a kind of vacuuming equipment independently developed and produced for minor repair and maintenance construction of irrigation joints and pits.
CLW group is located in Suizhou city,Hubei province, China with about 15 subsidiary companies like ChengLi Special Automobile Co., Ltd, CLW heavy industry Co.,Ltd, Hubei Weiyu Special Vehicle Co.,Ltd,, Hubei ChengLi Property and Investment Co.,Ltd, Suizhou ChengLi Mirco-loan Co.,Ltd and so on in vehicle manufacturing and selling,real estate,education,investment and etc.
Specifications of 2CBM Changan Road Sweeper Truck
| 2CBM Road Sweeper Truck | ||||||||
| Condition | New condition/Right hand drive/4x2 | |||||||
| Chassis | Brand | Changan | ||||||
| Curb weight(kg) | 2300kg | |||||||
| Wheelbase(mm) | 2600 mm | |||||||
| Dimensions(mm) | 4650 x 1750 x 2250 mm | |||||||
| Overhang (front/rear) (mm) | 1032 / 1868 | |||||||
| Wheel track (front/rear) (mm) | 1506 / 1404 | |||||||
| Approach/Departure angle(°) | 19/12 | |||||||
| Axle Load(kg) | 1500/2000 | |||||||
| Max. driving speed(km/h) | 90 km/h | |||||||
| Tire | Specifications | 6pcs with one spare tire | ||||||
| Number | 165R14 | |||||||
| Clutch | Reinforced diaphragm clutch | |||||||
| Gear box | Manual type, 5 Forwards & 1 Reverse | |||||||
| Cabin | Left Hand Driving, 2 Passenger Allowed, with A/C | |||||||
| Engine | Model | Diesel Engine, 4 Cylinders | ||||||
| Power(kw)/Horsepower(HP) | 65 kw/88 HP | |||||||
| Emission standard | Euro 3 | |||||||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|||||||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||||||
| Sweeping System | ||||||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | |||||
| Tank volume(cbm) | 1.5 CBM | |||||||
| Water tank | Tank material | Stainless steel 304 | ||||||
| Tank volume(cbm) | 0.5 CBM | |||||||
| Auxiliary engine | Model | ISUZU Engine 77HP | ||||||
| Power(kw) | 28 kw | |||||||
| Brush | Quantity(pc) | 4 pcs | ||||||
| Working area(m) | 2.7-2.8 m | |||||||
| Remarks |
1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements. |
|||||||
Details
FAQ
Q1: What kinds of Sweeper Truck products I can order from your company?
A: We can supply all kinds of sweeper trucks, Vacuum sweeper truck, High pressure road sweeper truck, Normal road sweeper etc.
Q2: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q3: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
