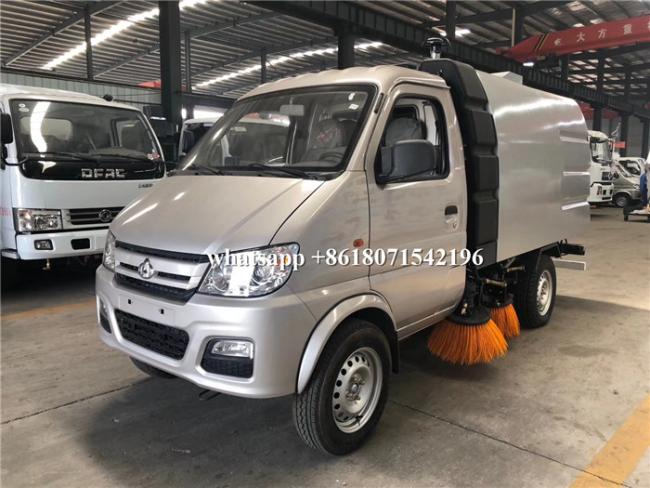

Small Size Mechanical Sweeper Truck 2600mm Wheelbase For City Sanitation
Small Street Cleaner Sweeping Vehicle Road Sweeper Truck Mobile Cleaning Tanker Truck
Product Description
1. Purpose: Sweeper truck,also named as road cleaning truck is a new high-efficient sweeping equipment which has multi-functions like road washing,sprinkling,garbage collecting and transportation...Sweeper truck can be widely used in main city road,airport road,residential area road,park,terminal,square,cement factory,power plant and etc.

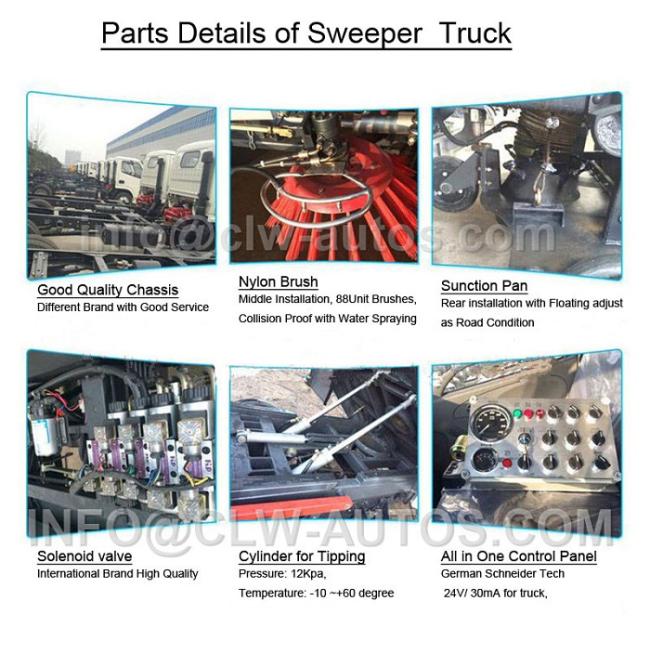

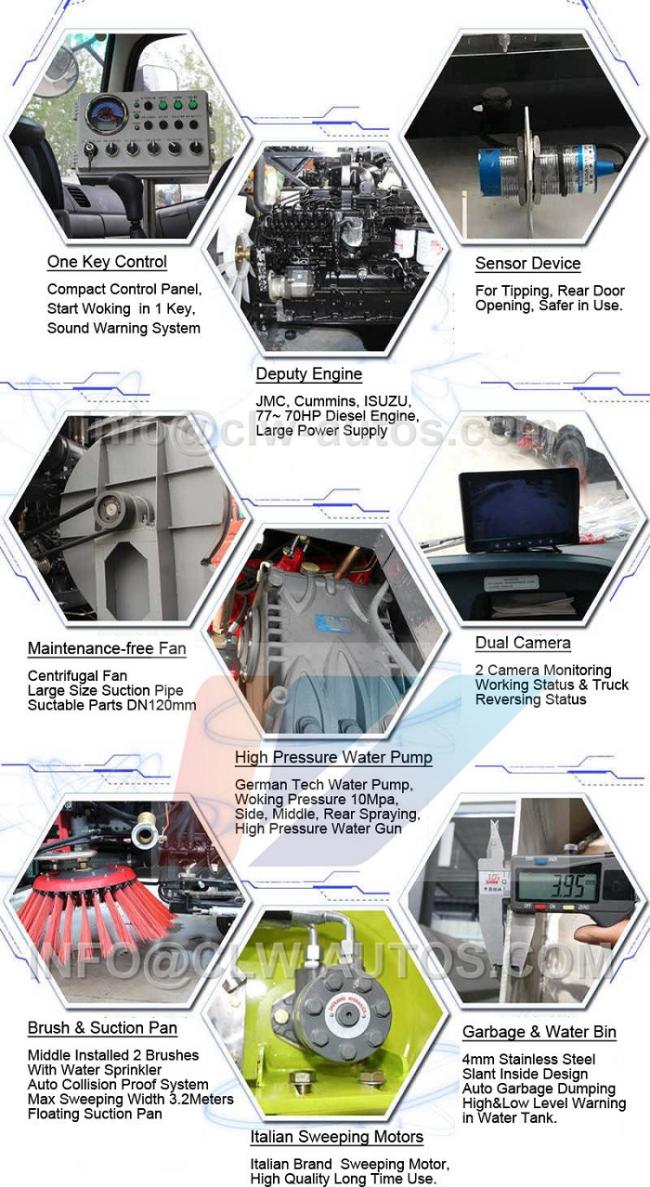

2. Main parts: stainless garbage bin,water tank,Italy hydraulic oil pump,germany magnetic valve,french Schneider eletronic control unit,auxiliary engine,suction panel,sprinkler system,brush
Specifications of 2CBM Changan Road Sweeper Truck
| 2CBM Road Sweeper Truck | ||||||||
| Condition | New condition/Right hand drive/4x2 | |||||||
| Chassis | Brand | Changan | ||||||
| Curb weight(kg) | 2300kg | |||||||
| Wheelbase(mm) | 2600 mm | |||||||
| Dimensions(mm) | 4650 x 1750 x 2250 mm | |||||||
| Overhang (front/rear) (mm) | 1032 / 1868 | |||||||
| Wheel track (front/rear) (mm) | 1506 / 1404 | |||||||
| Approach/Departure angle(°) | 19/12 | |||||||
| Axle Load(kg) | 1500/2000 | |||||||
| Max. driving speed(km/h) | 90 km/h | |||||||
| Tire | Specifications | 6pcs with one spare tire | ||||||
| Number | 165R14 | |||||||
| Clutch | Reinforced diaphragm clutch | |||||||
| Gear box | Manual type, 5 Forwards & 1 Reverse | |||||||
| Cabin | Left Hand Driving, 2 Passenger Allowed, with A/C | |||||||
| Engine | Model | Diesel Engine, 4 Cylinders | ||||||
| Power(kw)/Horsepower(HP) | 65 kw/88 HP | |||||||
| Emission standard | Euro 3 | |||||||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|||||||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||||||
| Sweeping System | ||||||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | |||||
| Tank volume(cbm) | 1.5 CBM | |||||||
| Water tank | Tank material | Stainless steel 304 | ||||||
| Tank volume(cbm) | 0.5 CBM | |||||||
| Auxiliary engine | Model | ISUZU Engine 77HP | ||||||
| Power(kw) | 28 kw | |||||||
| Brush | Quantity(pc) | 4 pcs | ||||||
| Working area(m) | 2.7-2.8 m | |||||||
| Remarks |
1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements. |
|||||||
