5 Meters Cargo Box Kama 5T Telescopic Crane Truck
Price:
negotiable
MOQ:
1 Unit
Delivery Time:
10-20 Work Days
Brand:
CLW /Weiyu Brand
Product Description
Kama 5MT Telescopic Boom Crane Truck with 5meters Cargo box
Product Description
1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
Product Specification
| Overall Size | 7660 x 2280 x 3510 mm | ||||
| Gross Vehicle Weight | 10,000 kg | Loading Weight | 5000 kg | ||
| Curb Weight | 5,000 kg | Front/ Rear Axle | 3.6 Ton / 6.4Ton | ||
| Wheel Base | 4200 mm | ||||
| Cabin | Kama Cabin, Single & Hald Row, with Air Condition, Electical Glass, Central Lock, ABS, Left Hand Driving, 3 Passenger Allowed | ||||
| Engine | Yunei Diesel Engine YN38CRE1, Euro 5, 4 Stroke, Water Cooling,4 Cylinder in Line, | ||||
| Horse Power | 129hp / 95KW , | ||||
| Max Torque | 1600 ~2400rpm | ||||
| Gearbox | 10 Forward & 1 Reverse Gear | ||||
| Steering Gear | Hydraulic Assistant | ||||
| Suspesion | Mechanical | ||||
| Leaf Spring | 9/11+8 | ||||
| Tire | 8.25R16LT, 6 Piece with 1 spare | ||||
| Maximum Speed | 95-110 km/h | ||||
| Crane Specification | |||||

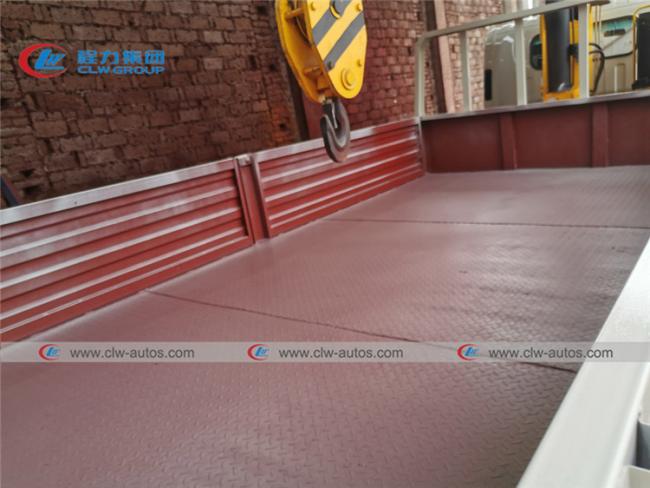

| Cargo Box | Size | 4600 × 2300 × 550mm | |||
| Material | Q235 Carbon steel | ||||
| Crane | Type | Straight Arm Crane | |||
| Model | CLW / SQS125-4 | ||||

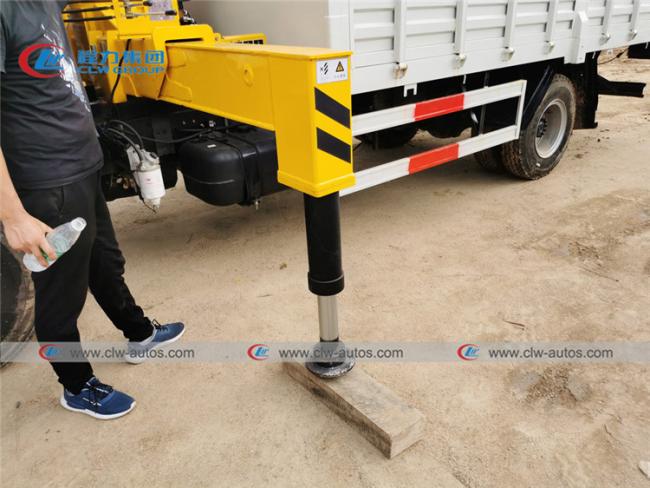

| Using H type support leg, Each leg can be adjusted separately adjusts the frame level, leg span is big, the whole machine has good stability. The crane using the 5ton fold-able boom. | |||||

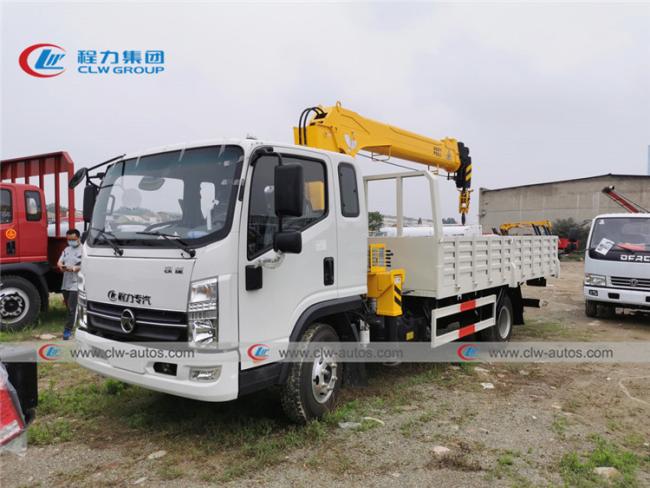

Truck Photos:
