Dongfeng Cummins XCMG 12 Ton Telescopic Crane Truck With Tipping Box

Name: Dongfeng Cummins XCMG 12 Ton Telescopic Crane Truck With Tipping Box
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD

Price Negotiable

Price: 18520 usd/unit~78660 usd/unit

MOQ: 1 UNIT

Delivery Time: Within 30days after received advance payments

Brand: CLW

Product Description

Dongfeng Cummins XCMG 12Ton Telescopic Crane Truck with Tipping Box

Description:

1. Crane Brand: Chinese Famous Brand
2. Heavy Duty Cargo box.
3. H Shape Hydraulic front & Rear Leg for safety.
4. Folded Arm & Telescopic Straight Arm Crane for option.
5. Crane capacity: 26.3ton,8ton,10ton,12ton, 14ton,16ton,20ton,25ton

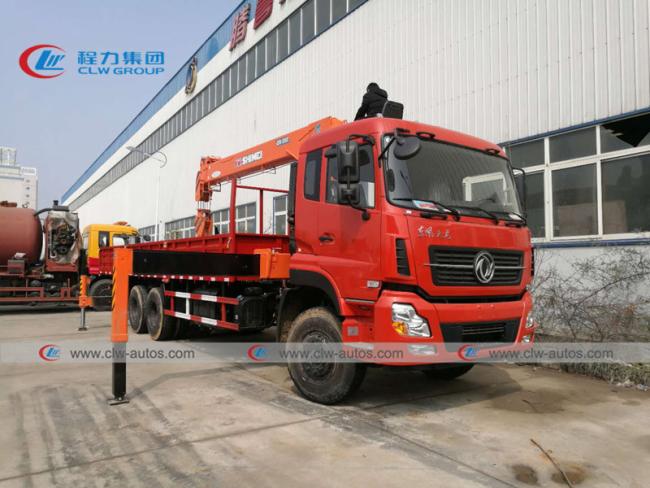

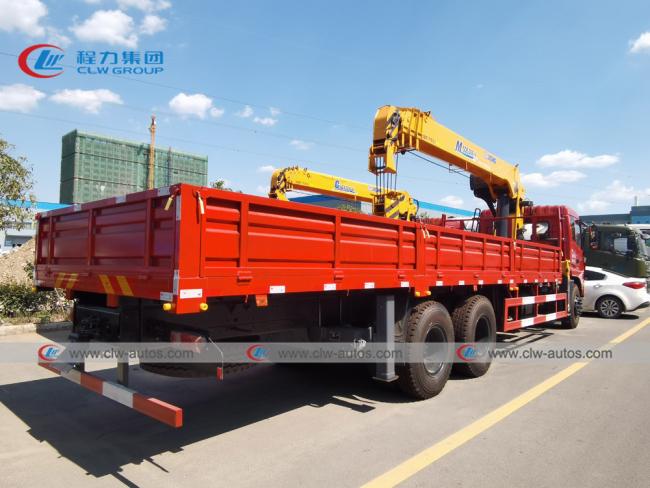

Reference picture

Specification

Product Specification

General Technical Parameters
Overall Dimension			12000×2500×3980 (mm)
Gross Vehicle Weight			24900(Kg)
Curb Weight			15800(Kg)
Chassis Specification
Chassis Brand		Dongfeng
Drive model		6*2
Cabin		Double, Left Hand Driving, with air conditional
Number of Passengers		3
Engine	Model	4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
	Power	161KW/220HP
	Emission standard	EURO 3
	Displacement	6870(ml)
	Fuel type	Diesel
Gearbox		8Forwards & 1Reverse
Brake System		Air break
Wheel Base		2100+5250 mm
Front/Rear Axle Loading		8000/11500(Kg)
Approach/Departure Angle		23/12(°)
Overhang		1250/3545(mm)
Tire		11.00R20
Max Driving Speed		90(km/h)

Upperstructure Specification
Cargo Body	Dimension		2500×1880×380(mm)
	Material		Q235 carbon steel
	Cargo Thickness		Side 1.5mm, Bottom 2.5mm
Working System	Boom Type		Straight 3-Arm telescopic boom
	Crane	Crane Brand	XCMG or SANY or CLW
		Range of Sprayer	30m
		Max Lifting Moment	25(T.M)
		Max Lifting Capacity	10000(kg)
		Max lifting height	12(m)
		Rotation angle	360(°)
		Installation space	1150(mm)
		Recommented power	30(kw)
		Maximum working pressure	26(Mpa)
		Max Flow	63(l/min)
		Crane weight	3800(kg)
	Oil tank capacity		160(L)
	Leg	Leg type	H type
	Leg	Leg Span	2.28-5.9(m)
	Hydraulic system	Pressure	18(M pa)
	Hydraulic system	Capacity	70(l)
Other Configuration	Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options	Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

Model	XCMG/CLW/PALFINGER
Max. Lifting Capacity	KG	63000
Max. Lifting momen	T.M	15.7
Lifting height	M	11
Working radius	M	9
Recommend power	KW	20
Max. Oil Flow of Hydraulic System	L/Min	40
Max. Pressure of Hydraulic System	Mpa	20
Oil Tank capacity	L	90
Crane weight	KG	2102
Installation Space	mm	900
Rotation Angle	°	360° All rotation

Related product

Key word:telescopic Boom Truck, Truck Mouted Crane, Truck Crane and Truck With Crane,small crane truck,small truck mounted crane
