Aluminum Alloy Dongfeng 8X4 120 Units Animal Transport Truck

Name: Aluminum Alloy Dongfeng 8X4 120 Units Animal Transport Truck
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD

Price Negotiable

Price: 45520 usd/unit~59660 usd/unit

MOQ: 1 UNIT

Delivery Time: Within 30days after received advance payments

Brand: CLW

Product Description

High end Aluminum Alloy Dongfeng 8X4 120Units Pig Goat Cow Transport Van Truck

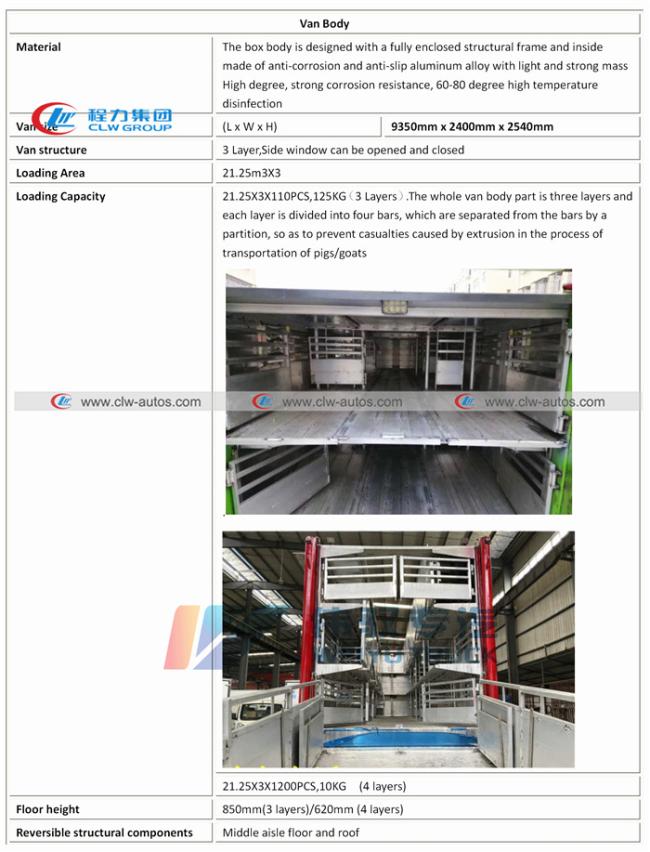

DescriptionAll aluminum alloy livestock and poultry transport vehicles are also called pig transport vehicles. The van body can be made of three or four layers. The best quality body structure is 100% made of aluminum alloy. The stainless steel sprinkler and drinking water investment return rate is maximized. Compared with the steel body, the weight is reduced by 20-30%. , Save fuel when truck is running, low maintenance costs, no rust, unlimited life cycle without paint protection, easy to clean, easy to operate, easy to operate, the lifting platform of the carriage is controlled by a full hydraulic lever to make it easier to operate. Automatic temperature control system, reasonable compartment design, convenient control of livestock getting on and off the car, remote control elevator animal welfare, larger internal space, more comfortable domestic animals in the compartment, temperature control system, water spray system, remote side ventilation system, side windows that can be opened and closed System, forced ventilation system.

Feature

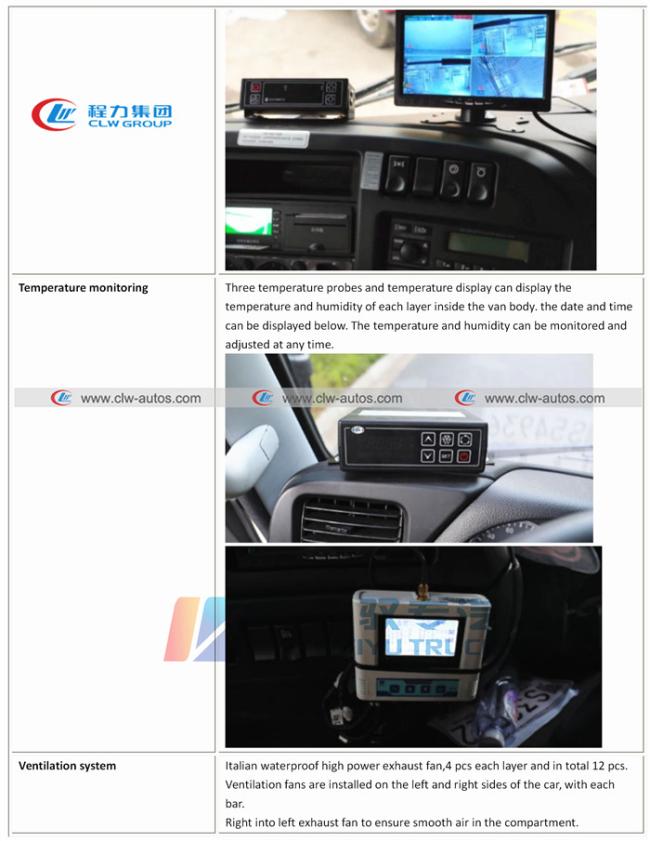

1) The constant temperature inside van ensures that pigs/goats are always in a suitable temperature environment.

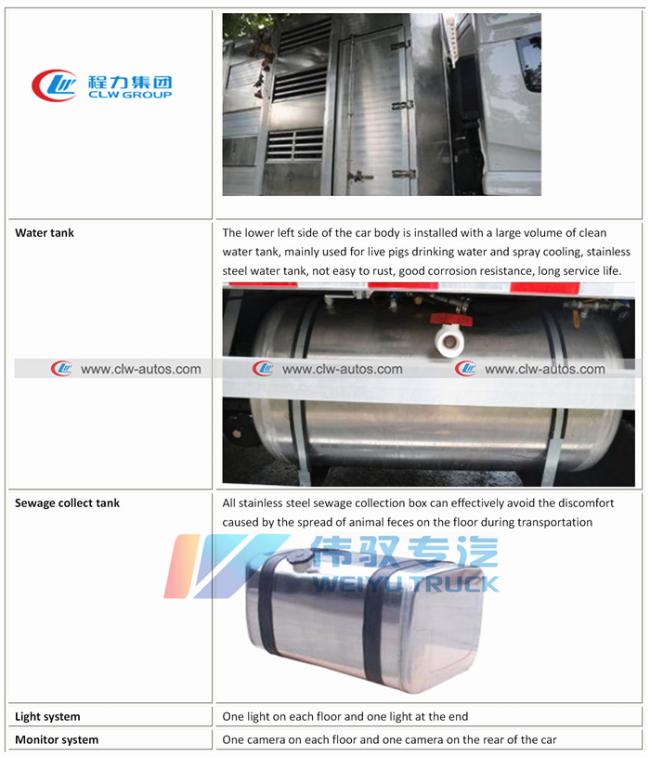

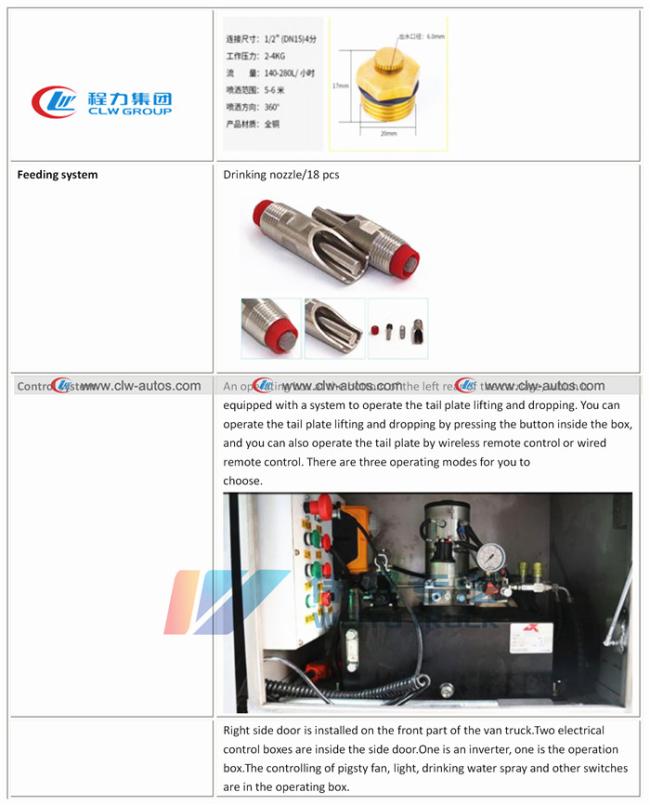

2) Sprinkler and feeding system to ensure pigs/goat clean drinking water and hygienic cage.

3) Each floor is equipped with surveillance cameras and lights, so that the situation of pigs/goats can be clearly seen in the cab. If there is an accident, it can be timely checked and adjusted to ensure the safety of pigs/goats transportation.

4) lightweight aluminum alloy van design, lighter quality, faster transport speed

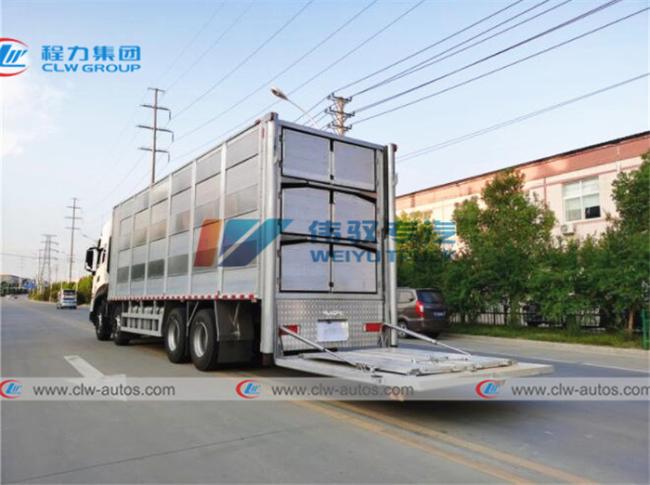

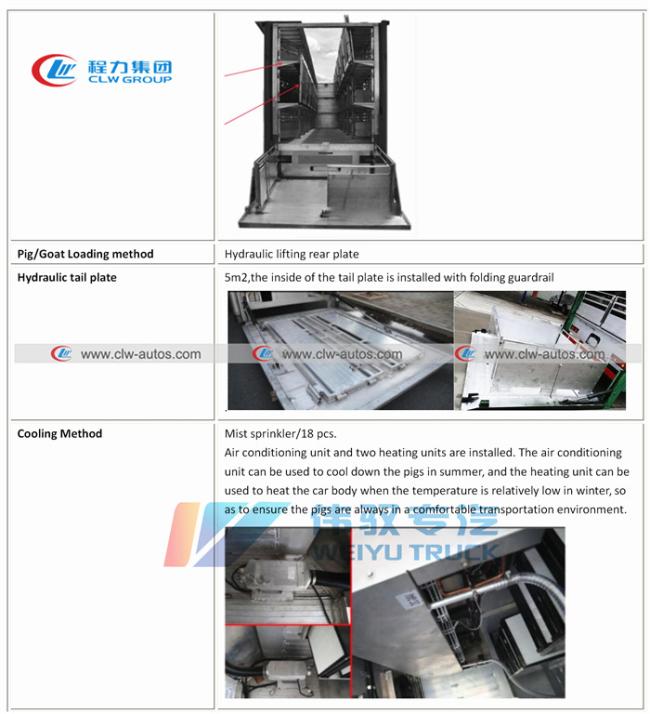

5) Tail plate lifting,easy loading and unloading of pigs/goats.

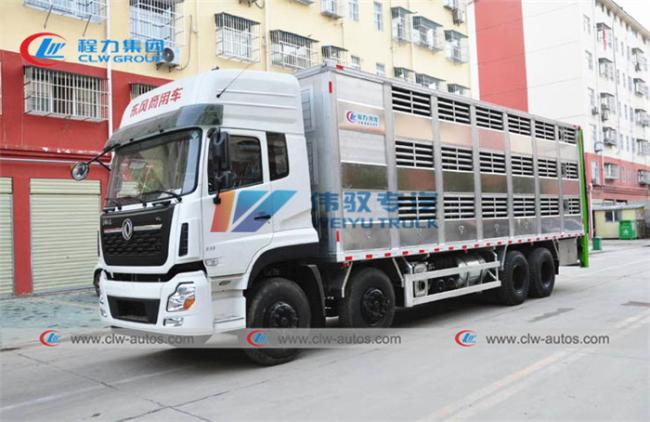

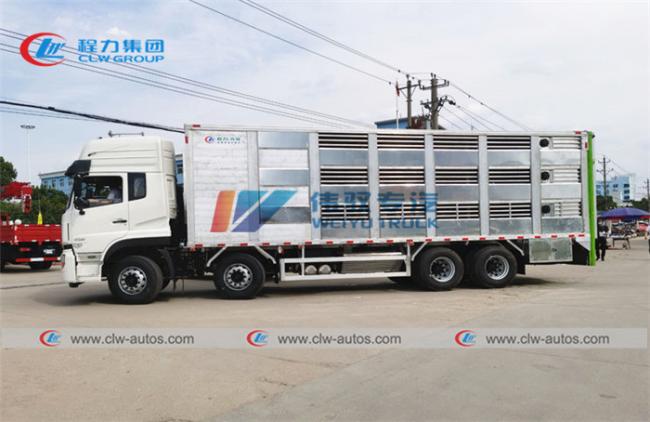

Reference picture

Specification

Cabin		North Benz/Dongfeng/Howo Standard Cab without sleeper as attached photo for ref.
Vehicle Main Dimensions	(L x W x H)mm			12000×2550×3980
	Wheel base (mm)			1500+4750+1350
	Wheel track (front/rear) (mm)			1500/1525
	Approach/Departure angle(°)			19/24
Weight in KGS	Tare Weight				15500
	Rated Loading Capacity				15370kg
	Front axles loading capacity				2x7500
	Rear axles loading capacity				2x13000
Max. driving speed(km/h)						85
Engine			Brand			Weichai
			Model			WP10.310E53
			Type			4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
			Horse Power(HP)			310HP
			Emission standard			Euro II/III/IV/V
Gearbox			12JS160T,FAST 12 forwards & 2 reverse
Clutch			Reinforced diaphragm clutch
Steering Gear			power steering, hydraulic steering with power assistance
Fuel tank (L)			300
Tire			12.00R20 tire ,12 pieces with one spare

Key word:pig transport truck,goat transport truck,cow transport truck
