RHD FAW J5K 10000 Liters Septic Tanker Truck

Name: RHD FAW J5K 10000 Liters Septic Tanker Truck
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD

Price Negotiable

Price: 15520 usd/unit~38660 usd/unit

MOQ: 1 UNIT

Delivery Time: 30 working days after received advance payments

Brand: CLW

Product Description

RHD FAW J5K 10000Liters Septic Tanker Truck 10m3 Vacuum Sewage Suction Truck For Kenya Sewage Service

Description--Vacuum Sewage Suction Truck(also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
Vacuum Sewage Suction Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature

--Vacuum Sewage Suction Truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;--Mobile FAW truck chassis;

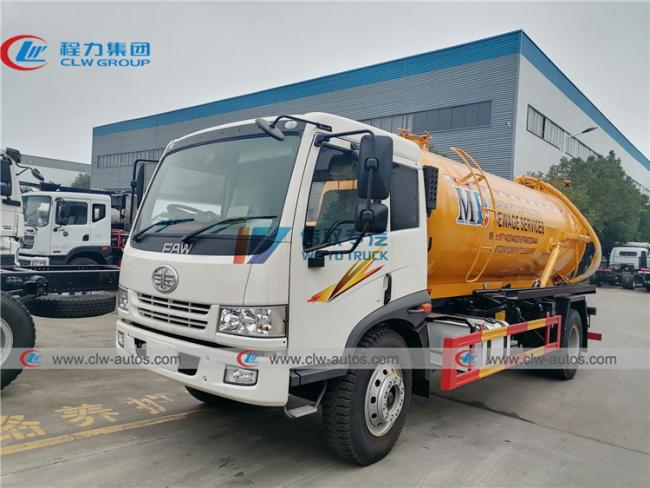

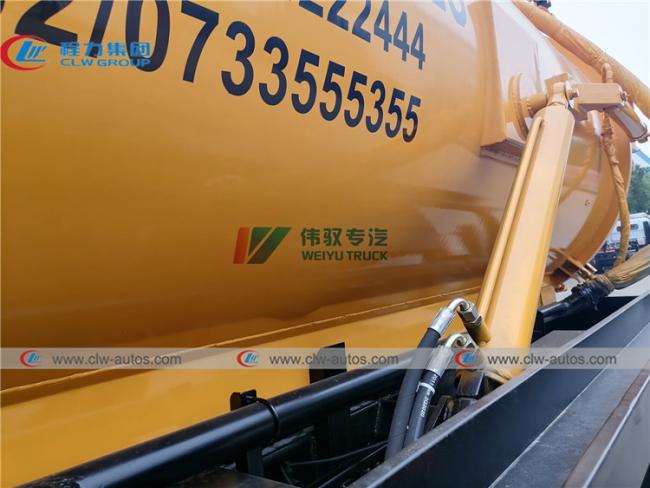

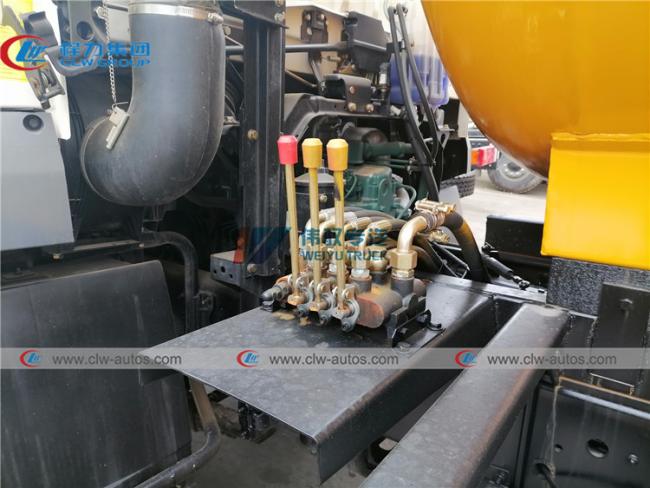

Reference picture

Specification

Overall dimension			7860x2495x3250mm (25.78x8.18x10.66ft)
Total mass			16000kg
Chassis model			CA1163P7K2L2E
Payload weight			7500kg
Curb weight			8305kg
Cabin		Cabin size	Standard cabin (3 seats)
Cabin		Air conditioner	Optional
Engine		Tech	Dacai tech, CA6DE3-18E3
		Engine Type	6-cylinder in line, turbocharged and intercooled
		Fuel Type	Diesel
		Horsepower	136kw/185HP
		Engine Capacity	6618ml
		Emission Standard	Euro 3
		Max Torque	650N.m
		Max torque speed	1400r/min
Axles		Front Axles	6000kg
Axles		Driving Axles	10000kg
Tyre			9.00R20 Radial tires with one spare tire (standard)/
Tyre			9.00-20 Nylon tires with one spare tire (optional)
Max speed			85km/h
BODY SPECS	Transport goods		Liquid pollutants manure, density: 800kg/m3
	Body Dimensions(Length x Axis)		Round tank , 4800x1870mm(15.74x6.13ft)
	Capacity		10m3/12m3
	Material of tank		Q235A Carbon steel
	Wheel base		4500mm (14.76ft)
	Overhang(front/rear)		1375/1985mm(4.51/6.51ft)
	Approach/Departure Angle		19°/11°
	Protective equipment	Material	Q235A carbon steel
		Connection	Welded connection
		Cross-section dimension of the rear guard (W x H)	50x120mm(1.97x4.72inch)
		Rear protective height from the ground	510mm(20.08inch)
	Function	It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. The time of load fully tanker ≤5min, head ≥5m
