SINOTRUK HOWO 14m High Altitude Truck For Aerial Working
Price:
negotiable
MOQ:
1
Delivery Time:
30 days
Brand:
CLW
Product Description
SINOTRUK HOWO 14m Aerial Platform High Altitude Working Truck
Product Description
1.This aerial bucket truck has been widely used for aerial field such as electricity,street lamp, municipal administration,gardens,communication,airport, shipbuilding, transportation, advertisement and photography.
2.It can easily solve the difficulty of aerial working,makes things easy and efficient. And for this platform truck,we have several models,like straight arm,folding arm scissor lift and vertical lift,you can chose the most suitable one according to your real situation and requirement.
Specification for 14m High-Altitude Working Truck
| Parameter | Overall dimension (Length*width*high) | (mm) | 5998×2050×2850 |
| Total Mass | (kg) | 4495 | |
| Kerb Mass | (kg) | 4295 | |
| Wheel base | (mm) | 3360 | |
| Front/rear tract base | (mm) | 1385/1425 | |
| Approach/rear angle | 27/11 | ||
| Max speed | (km/h) | 90 | |
| Fuel type | diesel | ||
| Engine | Engine type | Yunnei | |
| Displacement standard | EURO 3 | ||
| Chassis | Chassis type | JMC | |
| Drive system | 4x2 | ||
| Tire type | 7.00R16 | ||
| Number of tire | 6 | ||
| Front/rear axle loading(kg) | 1015/2025 | ||
| passengers | 3 | ||
| Cabin | Single, with 2 passengers allowed, with Air conditioner | ||
| Special parameter | Working platform rating loading | (kg) | 200 |
| Max. Working Height | (m) | 21 | |
| Platform height | (m) | 19.3 | |
| Boom type | Five section telescopic type | ||
| Loading of hook | (kg) | 800-1000 | |
| Bucket rotation angle | (°) | 360 |

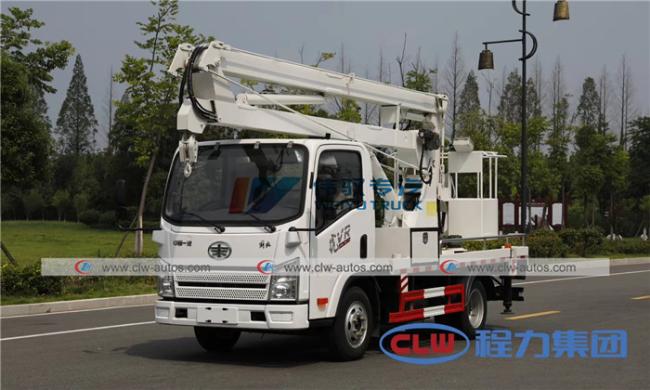

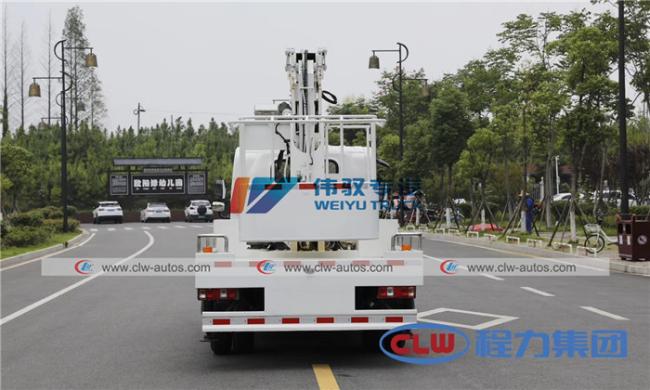

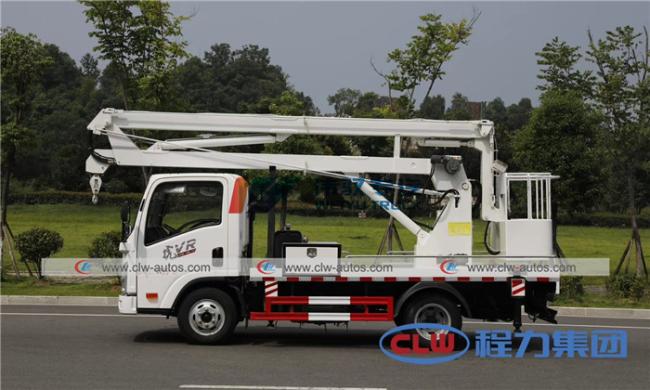

Reference photos

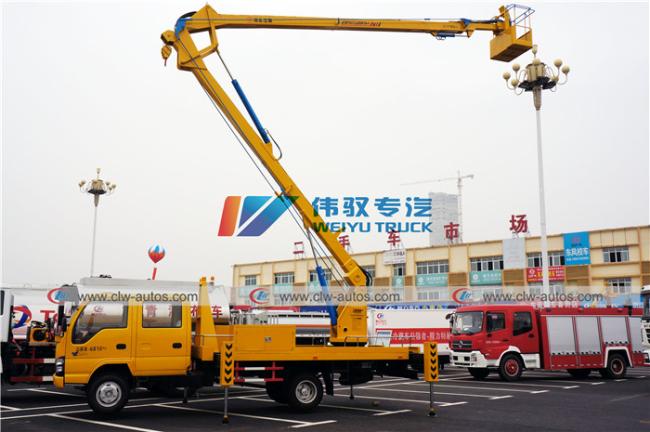

Aerial working platform Truck Working Show

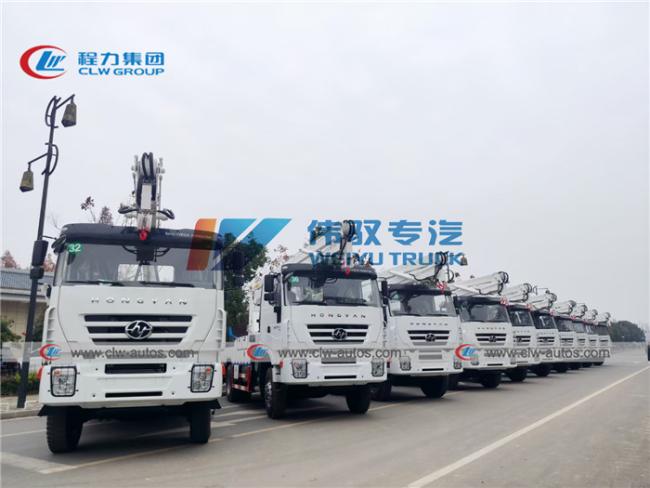

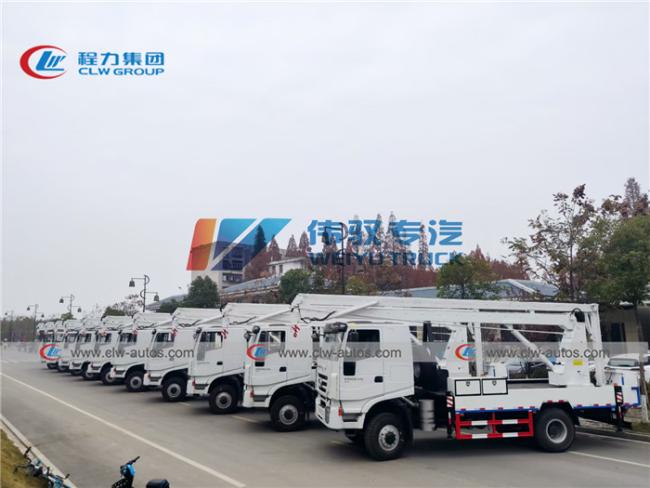

Bulk Shipment For Aerail working Platform Truck
For more details contact alice +86 180 7154 2196
