Euro II Sinotruk Howo 3 Axles 20T Fire Brigade Truck
Euro II Sinotruk Howo 3 Axles 20Tons 20T Water Sprinkler Fire Truck 20000liters
Product Description

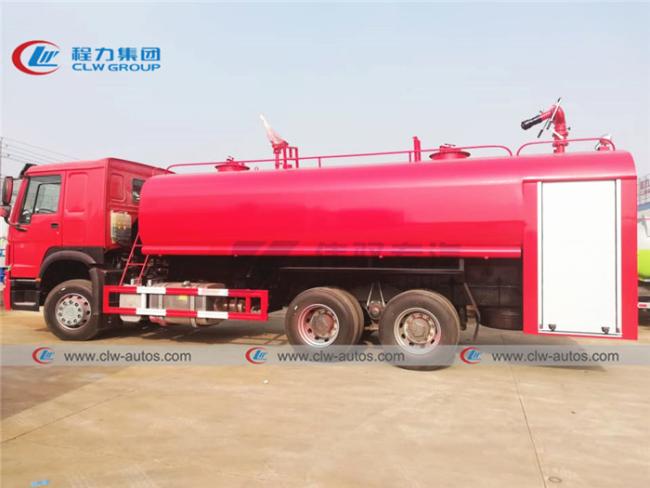

Water sprinkler fire truck(Also called water bowser fire truck,water sprinkling fire fighting truck) is a simpflied water tank fire truck combined water sprinkler function and fire fighting function. Equipped with fire pump,the water sprinkler truck can be used as fire rescue in emergency,or it can also used as sanitation city cleaning water sprinkler truck.
- 1) Cabin: Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover；
- 2)Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;

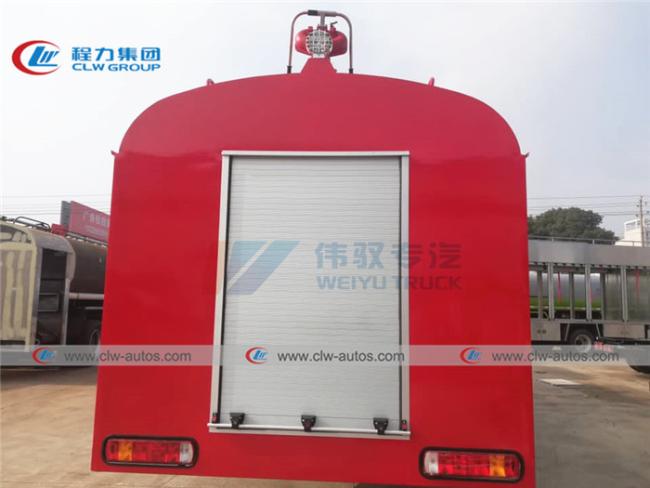

- 3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
- 4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
- 5)Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.
Specification of Sinotruk Howo 3 Axles 20Tons 20T Water Sprinkler Fire Truck 20000liters
| Chassis | ||||||
| Cabin | Brand: SINOTRUK HOWO | |||||
| HW70 , double cab,6X4 left hand drive, | ||||||
| with air conditioner, could sit 5-6 fire fighter | ||||||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) mm: 11000*2500*3425 mm | |||||
| Wheel base: 4600+1350 (mm) | ||||||
| Overhang (front/rear): 1500/2300(mm) | ||||||
| Approach angle: 33° | ||||||
| Departure angle: 17° | ||||||
| Weight in KGS | Curb Weight:14050 kg | |||||
| Max. driving speed(km/h) | 90 | |||||
|
Engine |
Brand | Sinotruk HOWO | ||||
| Model | WD615.87 | |||||
| Horse Power | 290 HP | |||||
| Emission | 9624 ml, Euro II | |||||
| Gearbox | HW13710CL, 10 Forwards gear & 2 reverse gear | |||||
| Tire | 12R22.5, 10 pcs+1 spare tire | |||||
| Driving axle | ST16 | |||||
| Front axle | HR7 brake | |||||
| Brake | Oil brake | |||||
| PTO | Clamping take force | |||||
| Steering | ZF8098 | |||||
| Upper parameters | ||||||
| Water tank volume | 20000 liters | |||||
| Manhole in the tank | DN450 | |||||
| Thickness | 4mm | |||||
| Material | Carbon steel and high tensile steel | |||||
| Normal pressure fire fighting pump | ||||||
| Type of pump | Centrifugal pump | |||||
| Minimum fire fighting pump flow | 30L/S | |||||
| Minimum pressure | 1.0Mpa | |||||
| Flow (L/S) | Outlet pressure(Mpa) |
Rated speed(r/min)
|
Crank power (kw) | Suction depth(m) | ||
| 30 | 1 | 3010 | 50 | 3 | ||
| 21 | 1.3 | 3340 | 55.2 | 3 | ||
| 15 | 1 | 3000 | 38.6 | 7 | ||
| Fir fighting fixed water cannon in the top of truck | ||||||
| Diameter (mm) | φ100 | |||||
| Flow (L/min) | 30L/min | |||||
| Max range (m) | ≥ 60m | |||||
| Working pressure(Mpa) | ≤0.7 MPa | |||||
| Vertical rotation angle( degree) | -30~70 | |||||
| Horizontal rotation angle (degree) | 360 | |||||
| Size(mm) | 1000*340*600 | |||||
| Weight (kg) | ≤ 50 | |||||
| Pipe system | ||||||
| Pipe Line inlet | 2 inlet, φ125 inlet in the pump;φ65 inlet in the back of pump | |||||
| Pipe Line outlet | 2 outlet, φ65, in the back of pump | |||||
Experience
more than 16 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 8000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of fire fighting truck I can order from your company?
A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied fire fighting trucks to any overseas companies?
A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
