20CBM Howo 371HP 6x4 Vacuum Sewer Suction Truck

Price Negotiable
Price: 35520 usd/unit~59660 usd/unit
MOQ: 1 UNIT
Delivery Time: Within 30days after received advance payments
Brand: CLW
Product Description
Howo 371HP 6X4 Suction -Type Sewer Scavenger 20,000L 20CBM
Description--Suction -Type Sewer Scavenger (also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
Suction -Type Sewer Scavenger is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.





Feature
- Suction -Type Sewer Scavenger tanker material optional for carbon steel or stainless steel 304;- Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;- Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro PM110W imported brand;- Suction speed less than 10min and and discharge speed less than 8 min;- horizontal suction distance: within 80 meters;- Vertical suction depth:within 9 meters;- Large horsepower 290hp,336hp or 371hp howo truck chassis;



Reference picture

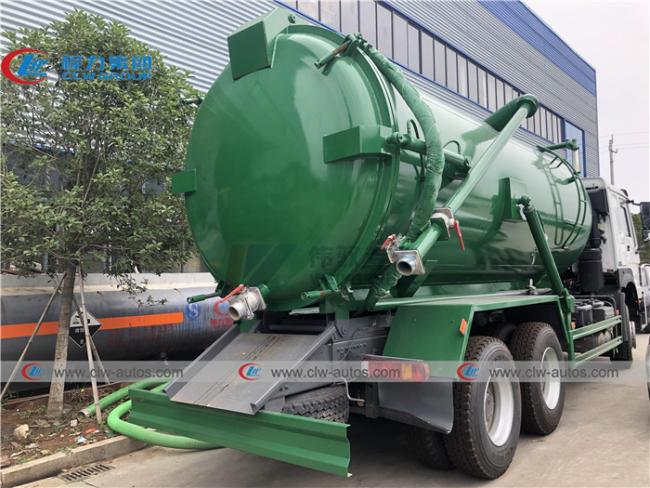

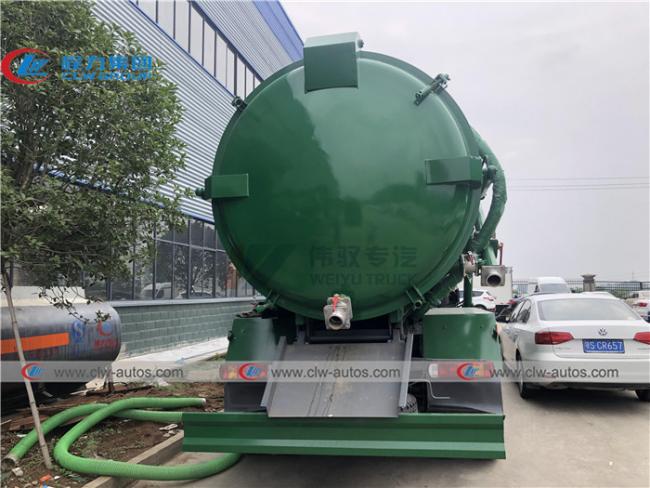

Rear view of howo 20000L Suction -Type Sewer Scavenger

Rear side view of howo 20000L Suction -Type Sewer Scavenger

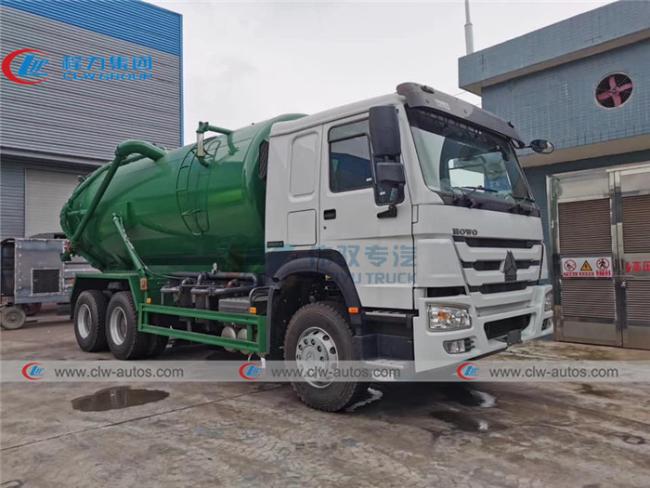

front view of howo 20000L Suction -Type Sewer Scavenger

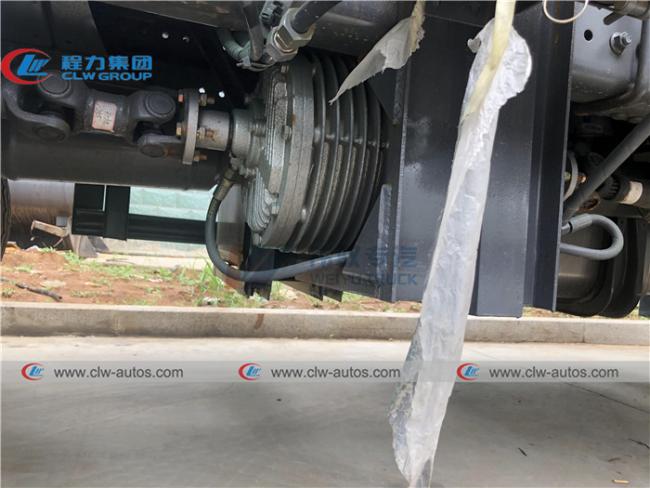

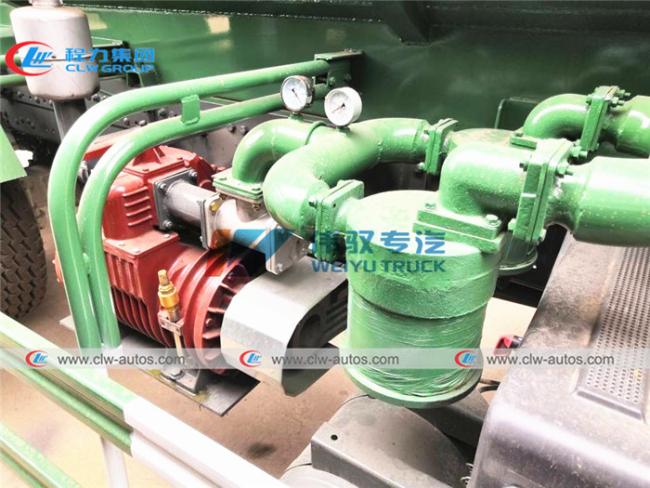

Chinese vacuum pump of howo 20000L Suction -Type Sewer Scavenger



Specification of howo 20000L Suction -Type Sewer Scavenger



Product Information
Product Suction -Type Sewer Scavenger
Brand Name SINOTRUK-HOWO
Chassis Model ZZ1257N4647
Place of Origin Suizhou, China
Color Any color will be available
Product Specifications
Engine Power 249kw/336hp
Overall dimension(L*W*H) 10350*2496*3800
Effective volume 18m3/20m3
Wheelbase 4600+1350mm
Front overhang 1500mm
Rear overhang 2900mm
Tread 2022/1830mm
Max speed 90/102km/h
Vehicle gross weight 25000kg
Front axle HF7
Rear axle ST16
Transmission 10 speeds forward and 2 reverse
Tire 295/80R22.5, 10+ 1 spare
Cabin HW76, one sleeper with AC
Diameter of suction tube Φ100mm
Suction depth 6m
Vacuum pump Jurop pump/Mono Keiser/BP/Chinese pump SK-12
Absorb pipe 4” 6meter black pipe
Tank Material Carbon steel Q235-B
Thickness Shell cover:8mm, Tank body:6mm
Water tank 20L

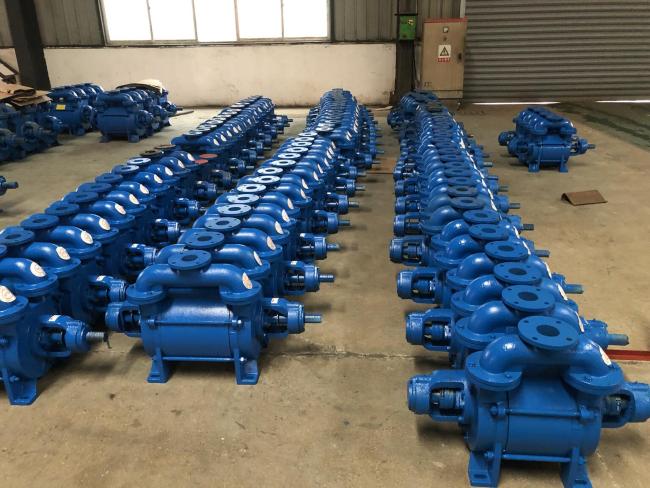

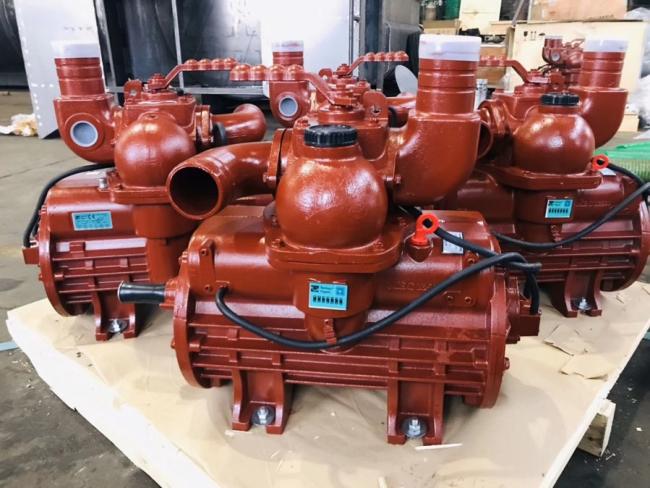

Vacuum sewer pump in stock

Related product



Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
