Shacman 8X4 17000 Liters Bulk Cement Tanker Truck
SHACMAN 8x4 17000Liters-20,000Liters bulk Oil-Well Cement tanker truck for sale
Description
Oil-well cements are used for oil-well grouting, sometimes called oil-well cementing. They consist of either portland or blended cements, plus additives. Oil-well cement must be slow-setting and able to withstand the high temperatures and pressures of these deep wells.
Oilwell Cement is intended for use in the oil and gas industry and its main function is to make wells function properly. It plays a significant role in improving productivity and efficiency of the drilling operations. The various reasons for using cement between the casing and the wellbore include:
- It creates isolation between the zones.
- It offers structural support to the well.
- It protects the well from corrosion.
- It acts as a hydraulic seal.
Specifictions
| Brand | SHACMAN | Drive type | 8x4 LHD/RHD |
| Total mass | 31000kg | Tanker capacity | 17000L(17m3) |
| Rated load | 14500kg | Material of tank | WISCO steel |
| Curb weight | 16370kg | Overall dimension | 11990×2500×3950mm |
| Wheel base | 1800+4500+1350mm | F/R axle load |
6500,6500/18000kg (Tandem) |
| Quantity of leaf spring | 13/13/12 | Quantity of wheels | 12 |
| Tyre type | 11.00-20 |
Approach/ Departure angle |
16/13° |
| F/R suspension | 1525/2815mm | Front track | 1939/1939mm |
| Rear track | 1800/1800mm | Max.vehicle speed | 90km/h |
| Passengers in cab | 2 | Chassis model | SX1315 |
| Engine | Model | WP10.270 | |
| Max.power | 199kw/270HP | ||
| Displacement | 9726ml | ||
| Emission level | Euro 3 | ||
| Description |
In line ,6 cylinders,4 strokes,water cooled,inter cooled, turbo charged,diesel engine |
||
| Gearbox | Description | Manual,9 forward &1 reverse gears | |
|
Brake system |
Service brake | Double circuit pneumatic (air) brake | |
| Parking brake | Spring-Power drum brake | ||
| Electric system | Operating voltage | 24V negative grounded | |
| Starter | 24V,5.4KW | ||
| Alternator | 28V,1.5KW | ||
| Battery voltage | 2X12V/165Ah | ||
| Cabin | Description |
One and half rows,luxury sedan configuration,double sleepers,power steering,A/C provided |
|

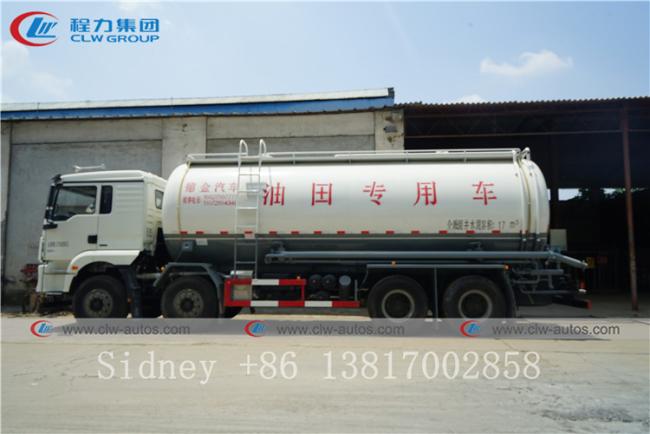

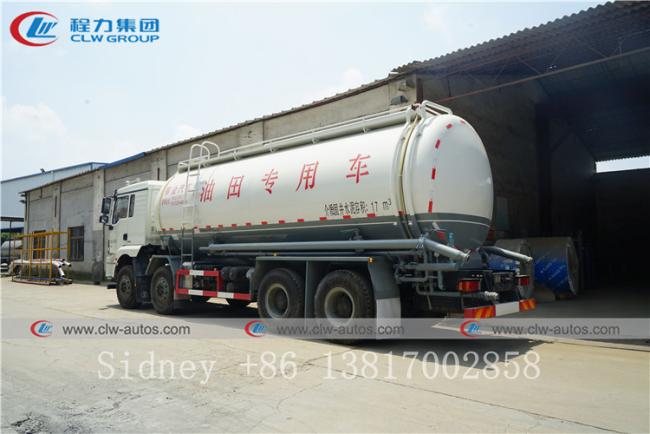

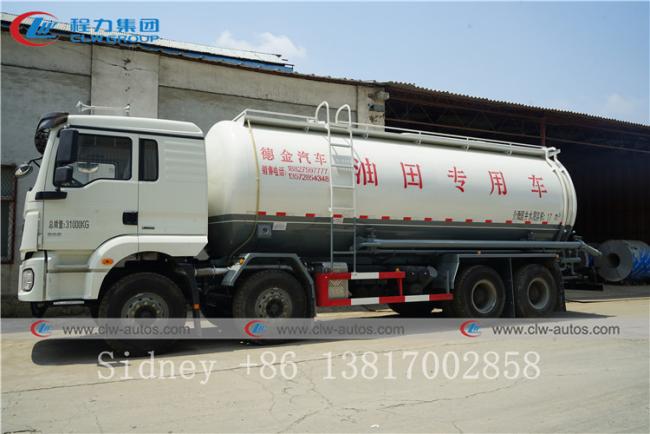

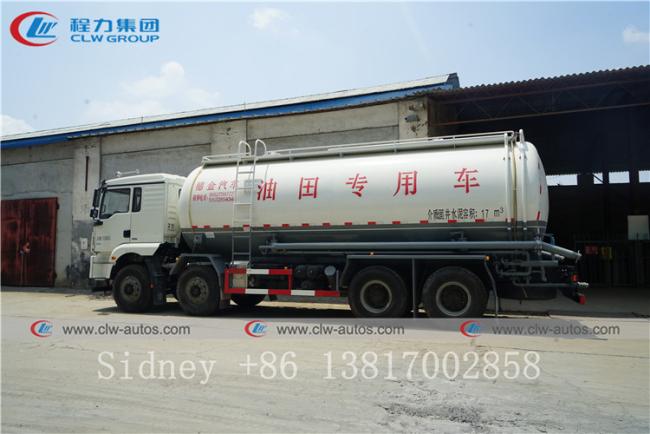

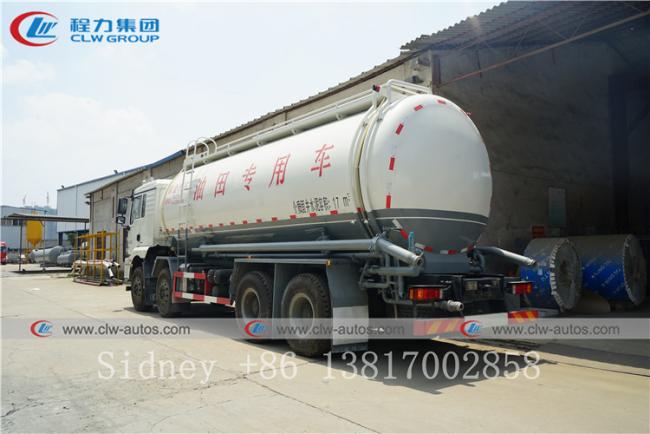

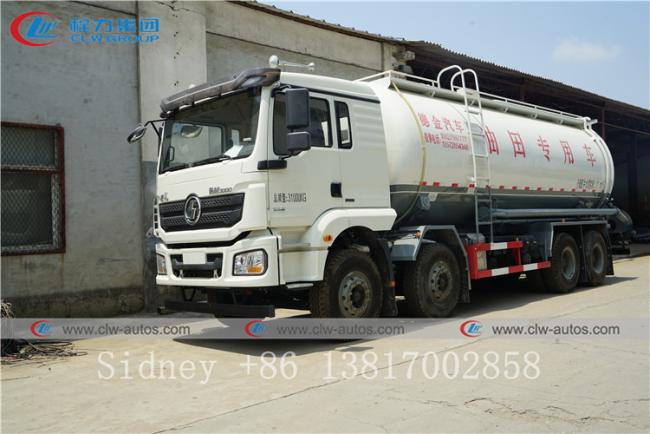

Reference photos
Manufacturing Show
The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products list:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
